Hoffman ASE10X8X6 Ase10x8x6 Nema 1 Scr Cvr Bx 10.00x8.00x6.00 in

Product Description

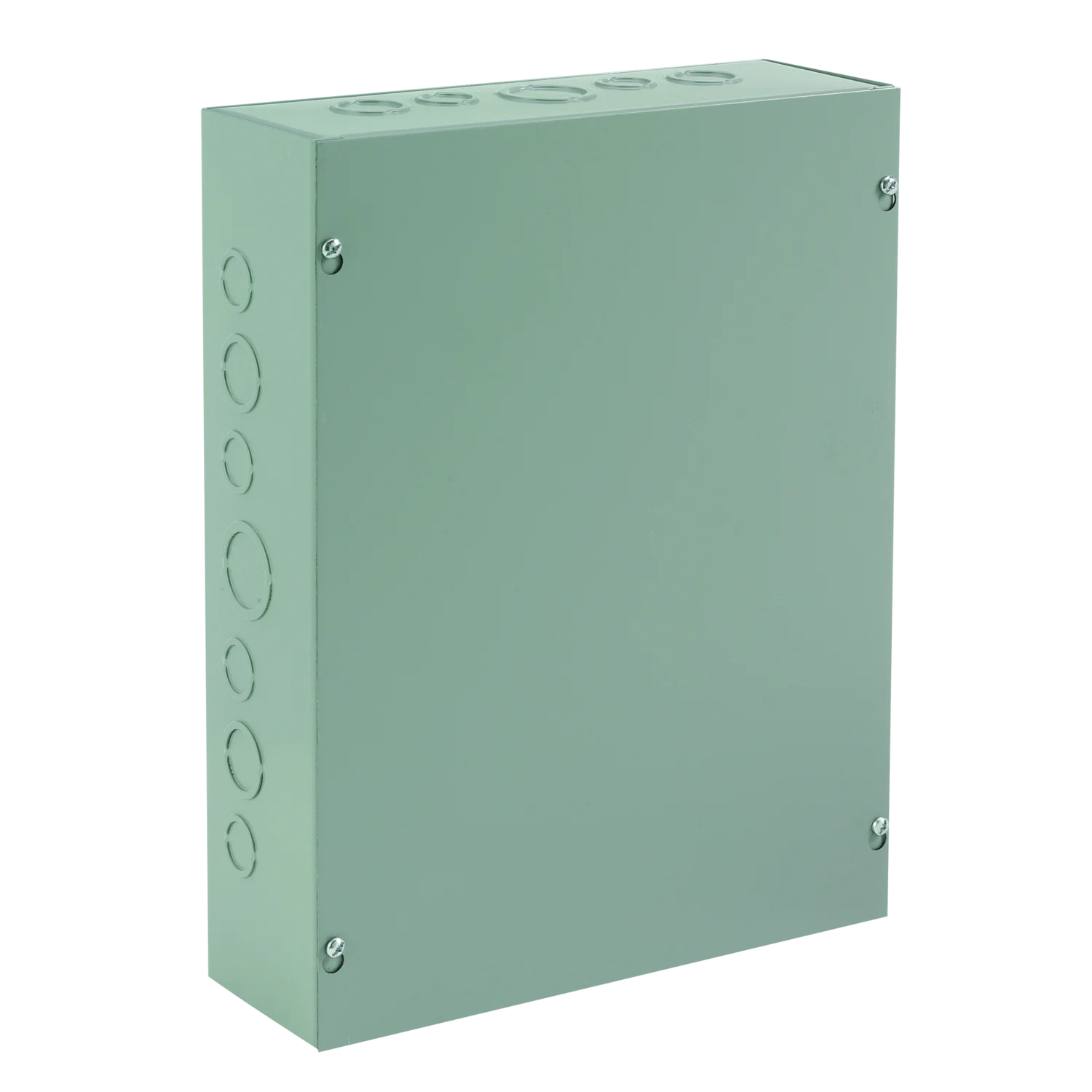

The HOFFMAN ASE10X8X6 Screw-Cover Enclosure Type 1 with Knockouts is designed for commercial and general industrial applications needing a junction or pull box. Measuring 10.00x8.00x6.00 in, this enclosure is made of mild steel with a powder-coated ANSI 61 gray finish. It features knockouts on all sides and a flat, removable cover secured with plated steel screws.

• Unique keyhole screw slots in the cover
• Available with or without knockouts
• Mounting holes on back of box

Product Highlights

This NEMA Type 1 enclosure provides electrical protection and is suitable for power distribution applications. It includes grounding provisions and a cover with keyhole screw slots.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: ASE10X8X6

Technical Specifications

• IGCC: 4417
• Size: 10.00x8.00x6.00 in
• Type: Pull and Junction Boxes
• Color: Gray
• Depth: 6 in
• Style: Painted
• Width: 8 in
• Finish: Powder Coated
• Material: Mild Steel
• IP Rating: IP30
• Knockouts: Yes
• Color Code: ANSI 61
• Application: Power Distribution
• NEMA Rating: NEMA Type 1 Indoor
• Type Number: Type 1
• Manufacturer: HOFFMAN
• Height (Metric): 254 mm
• Height (Imperial): 10 in
• Protection Rating: NEMA Type 1
• Knockouts Included: Yes
• Cover Screw Quantity: 4
• Body Thickness (Metric): 1.52 mm
• Door Thickness (Metric): 1.52 mm
• Body Thickness (Imperial): 16 ga
• Door Thickness (Imperial): 16 ga
• Knockout Pattern Along A Sides: F-G-H-I
• Knockout Pattern Along B Sides: F-G-H-I
• Article Number: 43180
