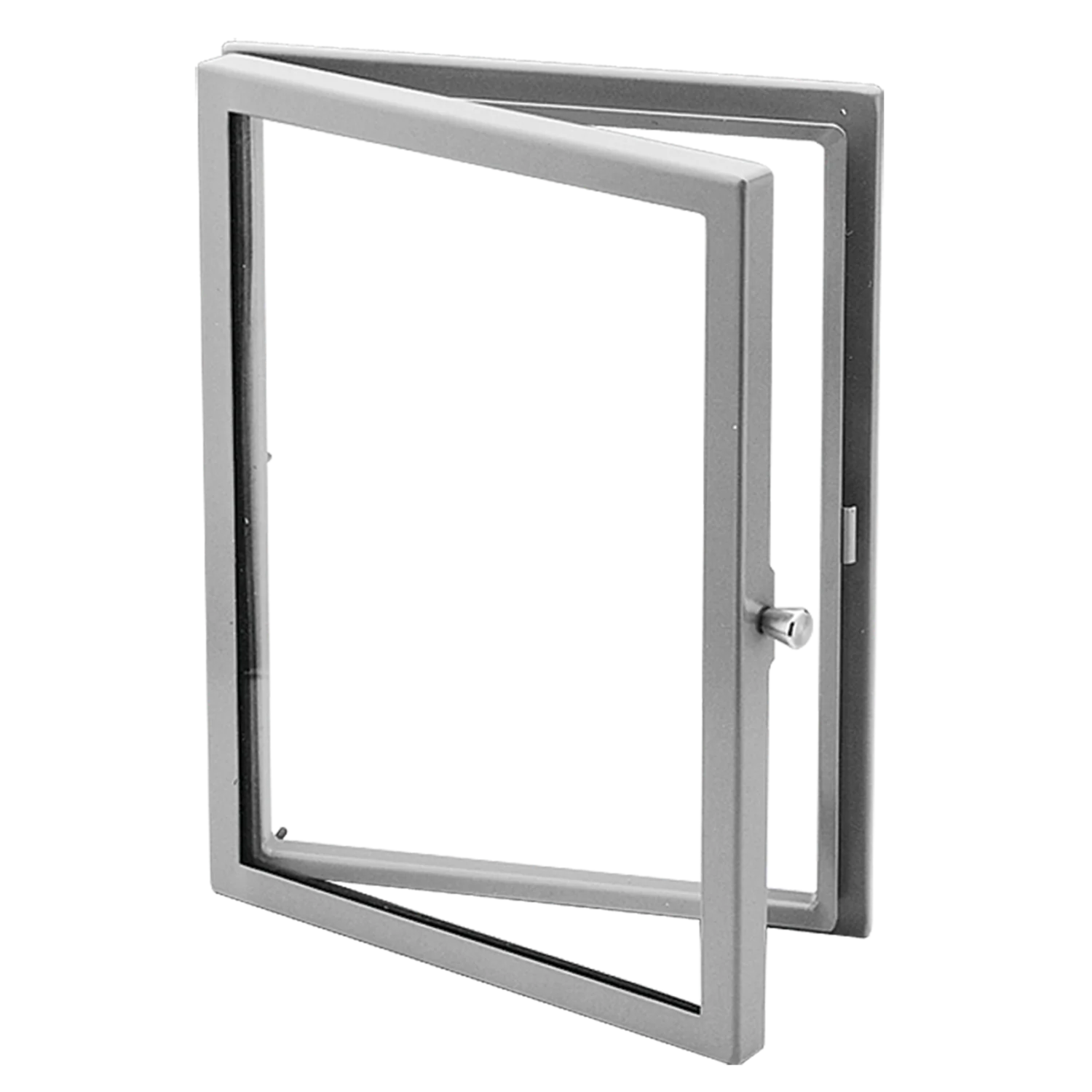

Hoffman APWK2020H Hinged Window Kit, Type 12, 20.00x20.00x1.49

Product Description

The HOFFMAN APWK2020H Hinged Window Kit, Type 12 is used as a viewing window for components mounted behind it. Easily mounted by drilling appropriate holes. Continuous gaskets on all openings maintain UL Type 12 rating. The hinged window kits are 1.49 in. deep.

• Window is .25-in. (6-mm) clear polycarbonate
• Mounting hardware is provided
• Continuous gaskets on all openings maintain UL Type 12 rating

Product Highlights

The Hoffman hinged window kit provides a viewing window for components requiring access. Easy to mount with continuous gaskets to maintain UL Type 12 rating.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: APWK2020H
• Country of Origin: USA

Technical Specifications

• Article Number: 19720
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 16ga
• Window Size: 18.28 x 18.28in
• Overall Dimensions: 20.00 x 20.00in
• UPC: 783510197209
• EAN: 8713574298774
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A80W
• Type: Window Kit
• Mount: Hinged
• IP/NEMA Rating: NEMA 12
• Series: A80W Series
• Color Family: Gray
• Manufacturer Part Number: APWK2020H
• UPC Code: 00783510197209
