Hoffman AL2DCCW Latch Kit 1-Door Type 12 Enclosure Keylock CCW 3-Pt (Ht=60to72)

Product Description

The HOFFMAN AL2DCCW latch kit is designed for field installation on most standard one-door Type 12 enclosures. Each kit includes a handle, latch, latch rods, adjustable rod guides, and all hardware. The latch rods can be adjusted to maintain the proper gasket compression.

• Each kit includes a handle, latch, latch rods, adjustable rod guides and all hardware
• These kits are available with a key locking handle, a non-locking handle or a padlocking handle
• Two keys are furnished with keylocking handles

Product Highlights

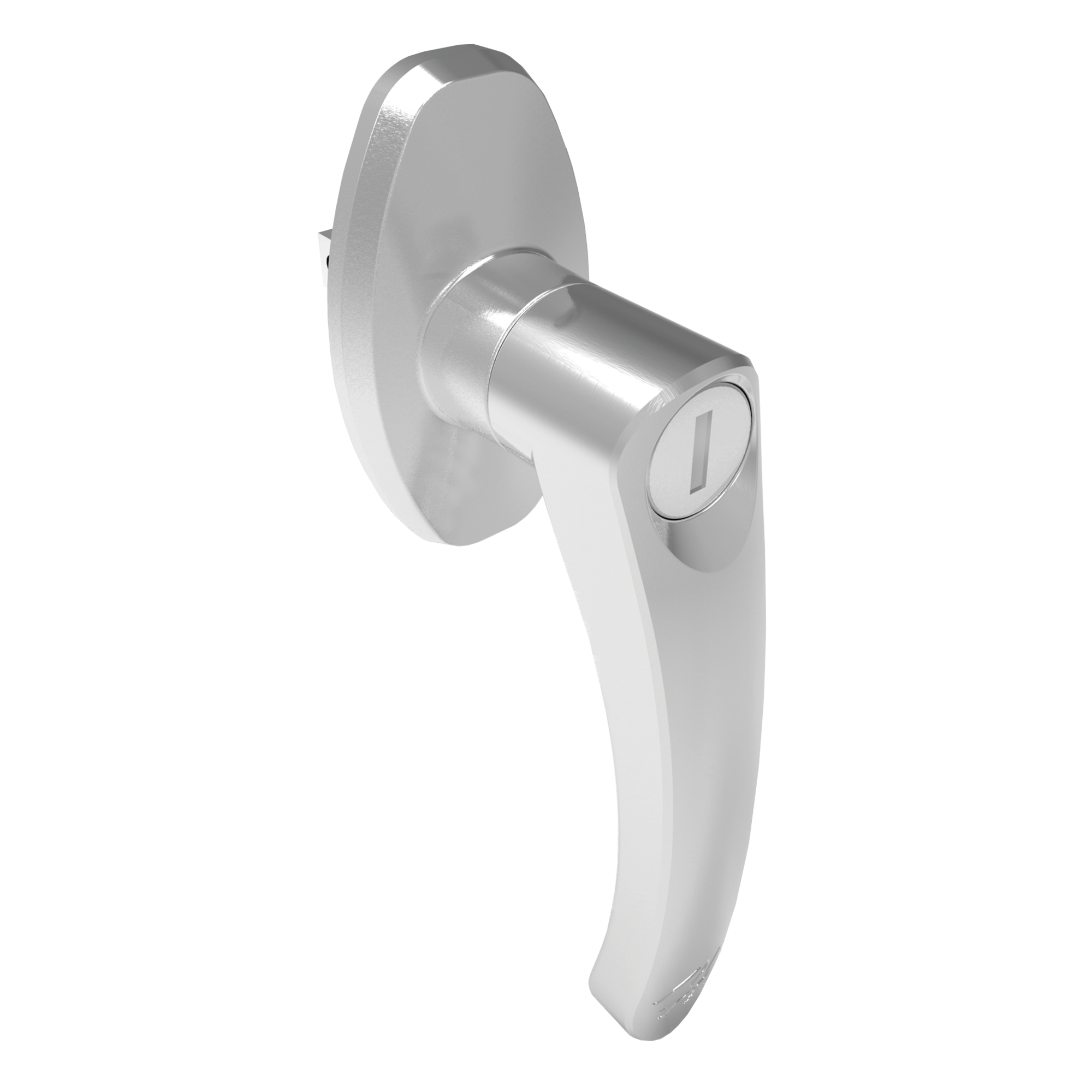

This latch kit is for one-door NEMA 12 enclosures. It features a key-locking handle and opens counterclockwise.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: AL2DCCW
• Country of Origin: CN

Technical Specifications

• Article Number: 22800
• Material: Mild Steel
• Finish: Brushed Chrome
• Handle Type: Keylock
• Opens: Counter-clockwise
• UPC: 783510228002
• Bulletin Number: A80
• Accessory Type: Locks, Lockouts, Latches, Handles and Clamps
• Application: Designed for field installation on most standard one-door Type 12 enclosures. These latch kits will not fit Hoffman disconnect, CONCEPT or PROLINE enclosures. Each kit includes a handle, latch, latch rods, adjustable rod guides and all hardware. The lat
• Catalog Number: AL2DCCW
• Color: Steel/Zinc
• Country of Origin: CN
• EU RoHS Indicator: NEW
• Height: 3.0000 in
• Item Group: A80
• Length: 4.5000 in
• NEMA Rating: 12 Indoor, dust-resistant
• Type: 3-Point Counter Clockwise
• UNSPSC: 39121321
• Width: 37.5000 in
• Brand Name: Hoffman
• Manufacturer: HOFFMAN ENCLOSURES
• Series: A80
• Size: 3 Point (A=60to72) in
• Special Features: All openings through the door are gasketed to assure a complete seal Ends of latch rods have rollers for easier door closing The latch rods can be adjusted to maintain the proper gasket compression by relocating the pins in the rod guides These latch kits will not fit Hoffman disconnect, CONCEPT or ProLine enclosures When the pin is removed, the latch rod can also be removed
• Sub_Brand: Hoffman
• ECCN: EAR99
• Use With: Type 12 Enclosure
• Lock Type: Keylock
• Style: Counterclockwise
