Hoffman AHE6X6X6 Hinged-Cover with Knockouts Type 1, 6.00x6.00x6.00

Product Description

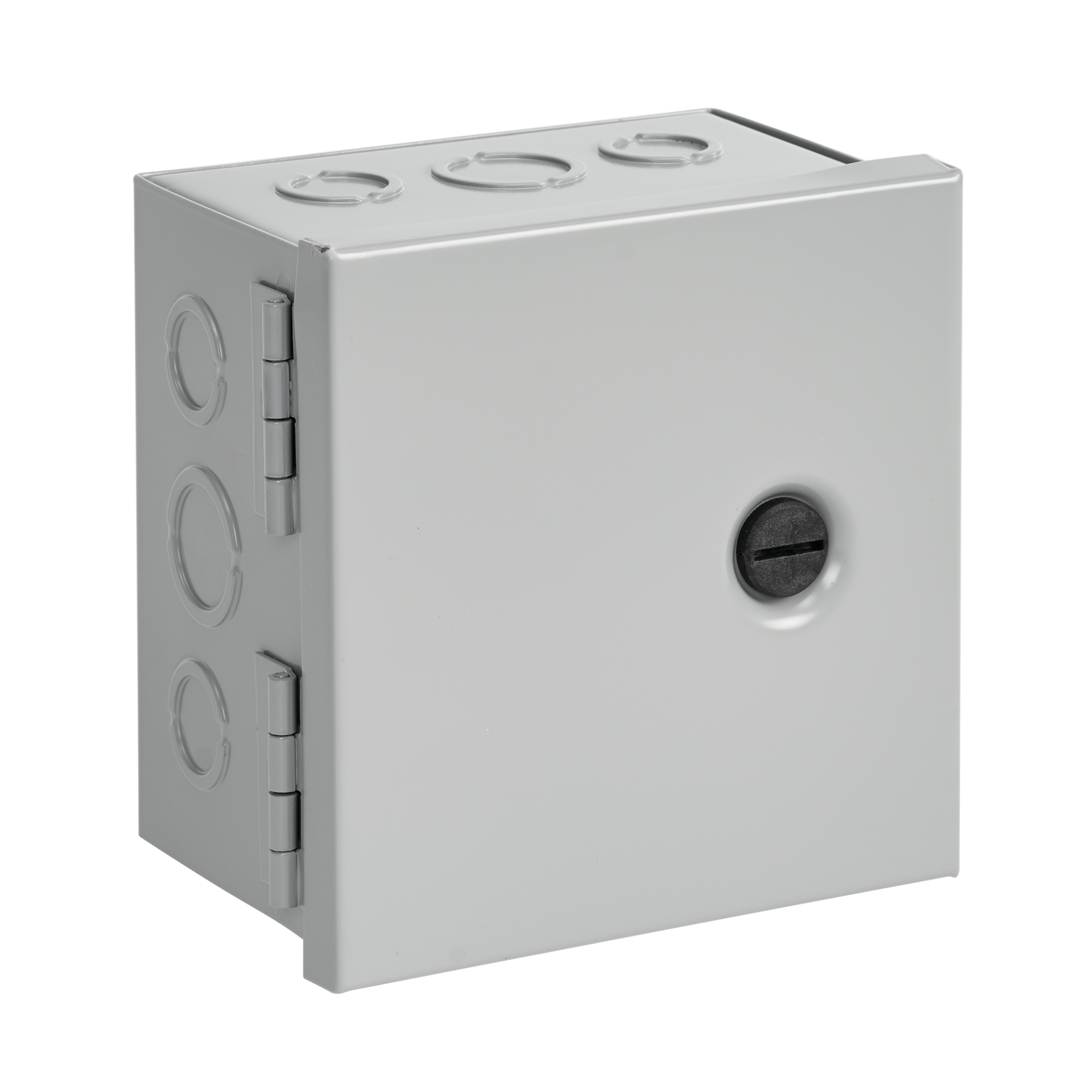

The HOFFMAN AHE6X6X6 hinged-cover with knockouts, Type 1, features a recessed, slotted flush latch for security and knockouts on all four sides, making it suitable for various applications. It is 6 x 6 x 6 inches and constructed of 16-gauge steel with ANSI 61 gray polyester-powder finish.

• Butt hinges on door
• Various sizes of easily removable concentric knockouts on all four sides
• Mounting holes on back of box

Product Highlights

The enclosure provides provision for grounding and is ideal as a surface-mounted junction box or switch box.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: AHE6X6X6
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 51210
• Height: 6 in
• Width: 6 in
• Depth: 6 in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 16ga
• Knockout Pattern Along A Sides: B-C-D
• Knockout Pattern Along B Sides: B-C-D
• UPC: 783510512101
• Bulletin Number: A90HC
• UNSPSC: 39121324
• Approval: UL 50/50E, CUL, CSA C22.2
• Nema Rating: NEMA 1, IP30
• Knockout Size: (2) (1/2 to 3/4 Inch), (1) (3/4 to 1 Inch) Concentric Knockout Sides, (2) (1/2 to 3/4 Inch), (1) (3/4 to 1 Inch) Concentric Knockout Ends
• Material Specification: 16/14 Gauge
• Cover Type: Butt Hinged, Slotted Flush Latch
• Knockout Location: (3) Sides, (3) Ends
• ECCN: EAR99
• Color Family: Gray
• Application: Controls and Drives; Power Distribution
• Catalog Number: AHE6X6X6
• Country of Origin: MX
• Height [Metric]: 15.2400 cm
• Item Group: A90HC
• Length [Metric]: 15.2400 cm
• Size: 6.00x6.00x6.00 in
• Type: Wall-Mounted / Pad-Mounted Enclosures
• UPC 11: 78351051210
• UPC 12: 78351051210
• Width [Metric]: 15.2400 cm
• Brand: nVent HOFFMAN
• Manufacturer: HOFFMAN ENCLOSURES
• Length: 6.0000 in
• NEMA Rating: 1 Indoor, electrical protection
• Number of Knockouts: 6
• Knockouts: Yes
• Enclosure Rating: NEMA 1
• Mount: Hinged
