Hoffman AHE30X24X6 Hinged-Cover with Knockouts Type 1, 30.00x24.00x6.00

Product Description

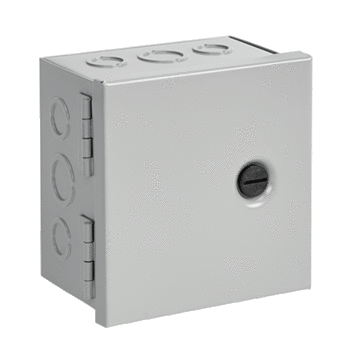

The HOFFMAN AHE30X24X6 is a hinged-cover with knockouts, Type 1 enclosure made of steel. It measures 30.00x24.00x6.00 inches and features easily removable concentric knockouts on all four sides. Designed for wall mounting, this enclosure provides provision for grounding and is finished with polyester powder paint. It is suitable for various electrical applications requiring a NEMA 1/IP30 rated enclosure.

• Constructed from 16 or 14 ga steel
• Features various sizes of easily removable concentric knockouts on all four sides
• Includes mounting holes on the back of the box

Product Highlights

Steel enclosure with hinged cover, knockouts, and grounding provision for electrical applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: AHE30X24X6

Technical Specifications

• Brand: nVent HOFFMAN
• Cable Entry Size: (16) 3/4 to 1 in Knockout, (16) 1/2 to 3/4 in Knockout, (4) 1 to 1-1/4 in Knockout Bottom/Sides/Top
• Color: Gray
• Cover Type: Butt Hinged
• Depth: 6 in
• Finish: Polyester Powder Painted
• Height: 30 in
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 1/IP30
• Series: A90HC
• Width: 24 in
