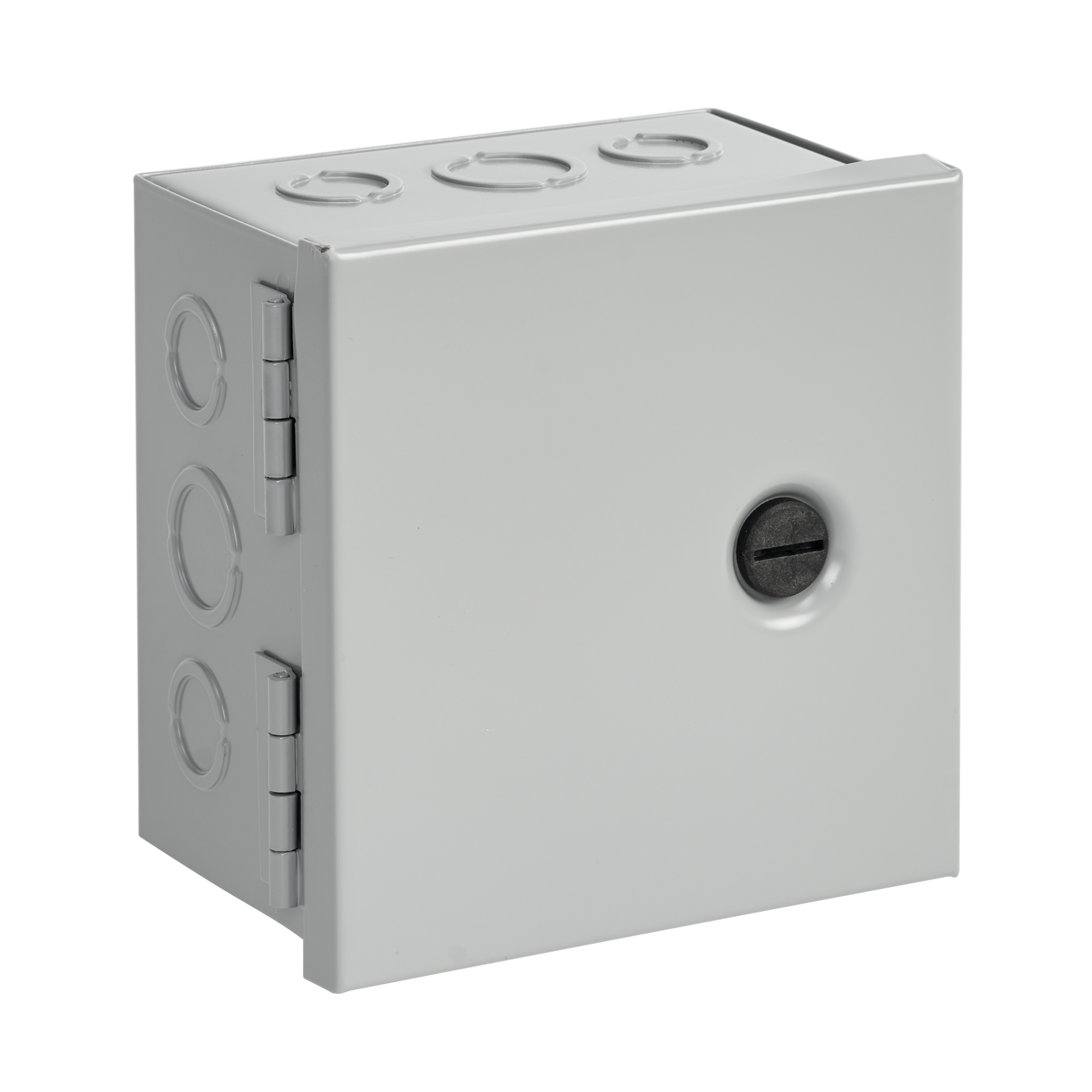

Hoffman AHE18X12X6 Hinged-Cover, Type 1, 18 in x 12 in x 6 in

Product Description

The HOFFMAN AHE18X12X6 Hinged-Cover, Type 1, features a recessed, slotted flush latch for security and knockouts on all four sides, making it suitable for various applications. Constructed of steel with a powder-coated finish, this enclosure is NEMA/EEMAC Type 1 rated and IP30 rated. It is designed for wall mounting and includes mounting holes on the back.

• Butt hinges on door
• Various sizes of easily removable concentric knockouts on all four sides
• Mounting holes on back of box

Product Highlights

Steel enclosure with hinged cover, knockouts, and flush latch for security in diverse applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: AHE18X12X6

Technical Specifications

• Applications: Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
• Color Coding: ANSI 61
• IP Rating: 30
• Material: Steel
• Standard: CSA, File 42184: Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27525,IEC 60529, IP30,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27525
• Type: Wall-Mounted / Pad-Mounted Enclosures
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Product UPC: 78351051240
• Depth: 6 Inch
• Height: 18 Inch
• Length: 17.9 Inch
• Thickness: 1.52 mm
• Width: 12 in
• UNSPSC: 39121303
• Finish: Powder Coated
• Mounting Type: Wall
• Series: A90HC
• Cover Type: Butt Hinged
