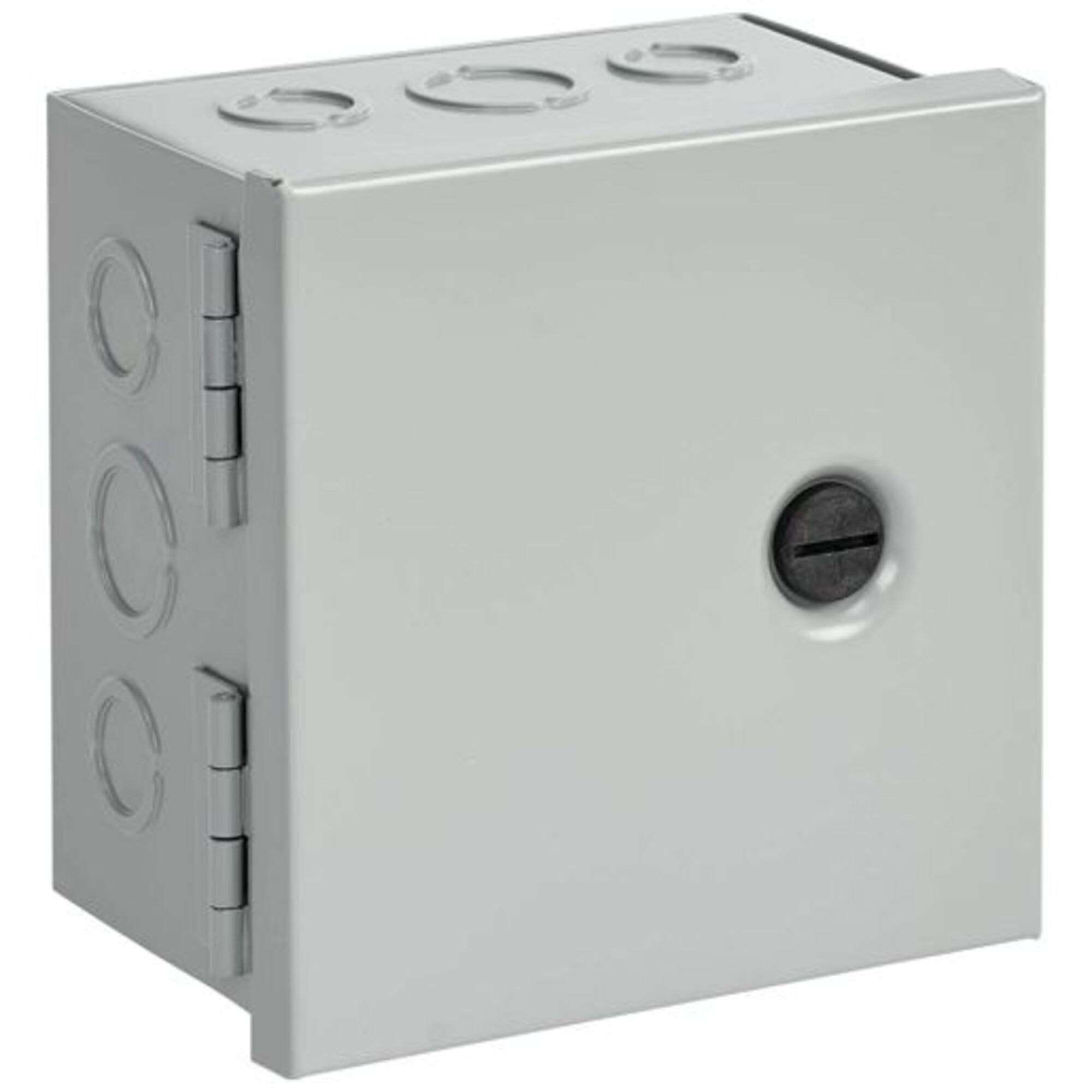

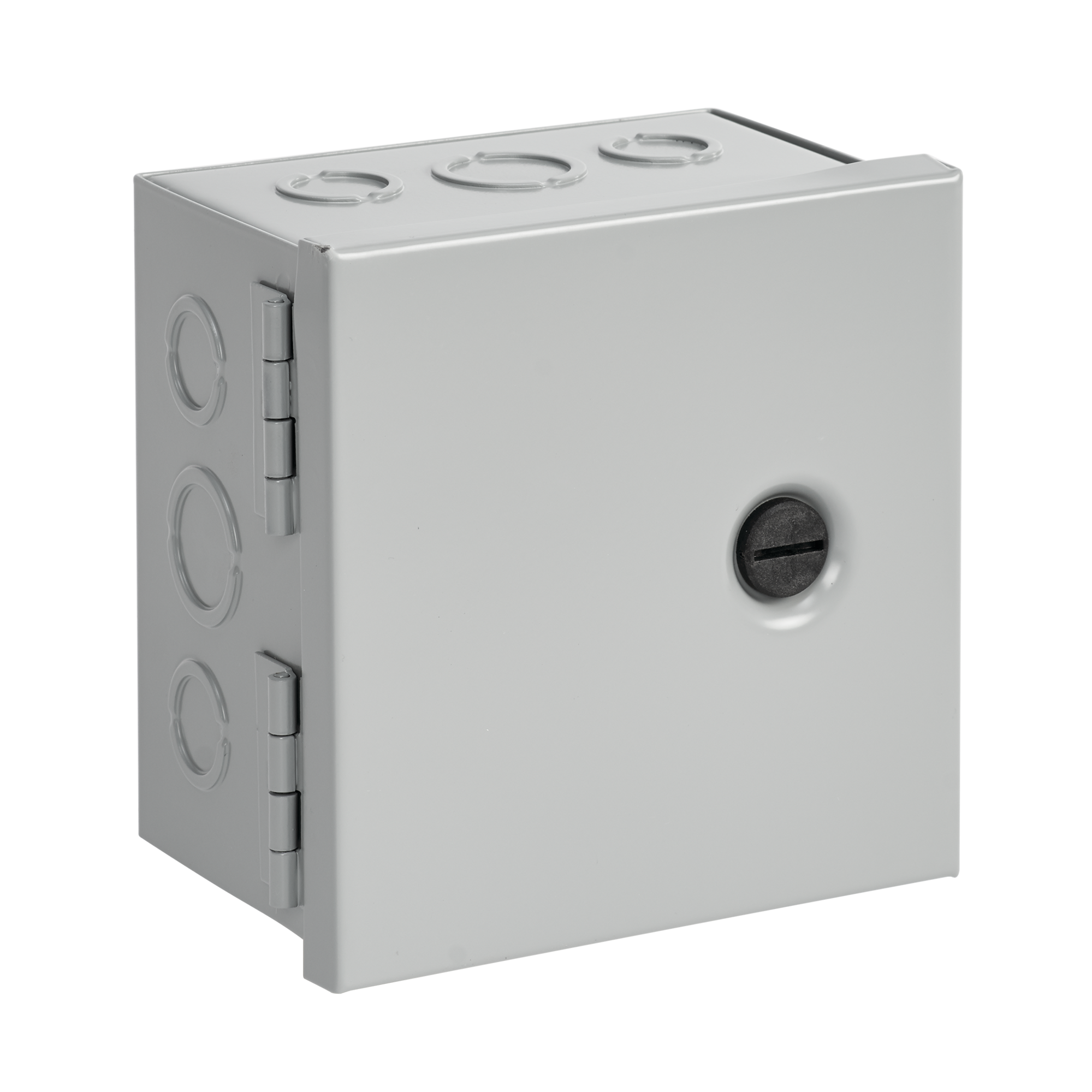

Hoffman AHE10X10X6 Pull Box, Hinged Cover, 10 inches x 10 inches x 6 inches

Product Description

The Hoffman AHE10X10X6 pull box features a hinged cover and is designed for use as a surface-mounted junction box or switch box. It can also house controls and instruments with the addition of a field-installed perforated subpanel. The box features a recessed, slotted flush latch for security.

• Constructed from 16 or 14 gauge steel
• Features various sizes of easily removable concentric knockouts on all four sides
• Mounting holes are located on the back of the box

Product Highlights

The Hoffman AHE series NEMA 1 hinge cover boxes are suitable for a wide variety of applications. They provide provision for grounding and easy operation of flush latch with a screwdriver or coin.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: AHE10X10X6
• Country of Origin: MX - Mexico

Technical Specifications

• Material: Steel
• Size: 10.00x10.00x6.00 in
• Standard: UL 50, 50E Listed; Type 1; File No. E27567; cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567 ; NEMA/EEMAC Type 1; CSA, File 42184 Type 1; IEC 60529, IP30
• Article Number: 51180
• Height: 10 in
• Width: 10 in
• Depth: 6 in
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 16ga
• Knockout Pattern Along A Sides: F-G-H-I
• Knockout Pattern Along B Sides: C-D-E-F-G
• UPC: 783510511807
• Bulletin Number: A90HC
• Type: Enclosure Only
• Enclosure Width: 10 in
• Enclosure Height: 10 in
• Enclosure Depth: 6 in
• Enclosure Rating: NEMA 1
• Mount: Hinged
• Approximate Depth: 6 in
• Approximate Height: 10 in
• Approximate Width: 10 in
• Brand: nVent HOFFMAN
• Configuration: With Knock-Outs
• Cover Locking: Quarter-Turn Latch
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• IP Rating: IP30
• Manufacturer Part Number: AHE10X10X6
• NEMA Rating: NEMA 1 Indoor, electrical protection
• Numeric ID: 2510415
• Series: AHE Series
• Gauge: 14 and 16
• Cover Type: Hinged
• Mounting Type: Wall
• ECCN: EAR99
• UNSPSC: 39121303
• Color: Gray
• Cable Entry: Knock Out
• Color Family: Gray
• Application: Controls and Drives; Power Distribution
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: AHE10X10X6
• Country of Origin: MX
• Manufacturer: HOFFMAN ENCLOSURES
