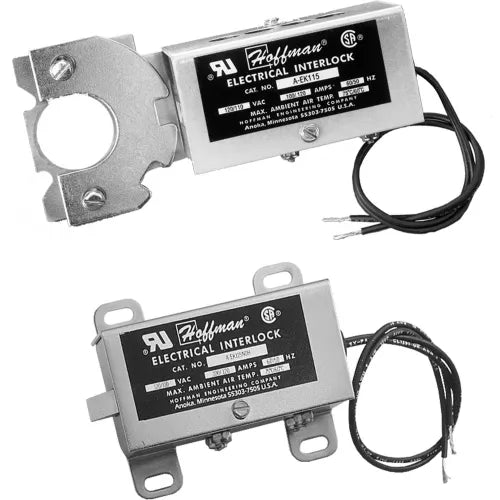

Hoffman AEK460NDH Electrical Interlock NDH 440/480 Volt Steel/Zinc

Product Description

The Hoffman AEK460NDH is an electrical interlock designed for safety in high-voltage applications. It operates at a voltage rating of four hundred forty to four hundred eighty volts and is made from durable steel with a zinc finish. This interlock is intended for use in electrical enclosures where it ensures secure operation while the equipment is energized.

• Durable steel construction with zinc plating
• Rated for continuous duty in heavy industrial settings
• Includes solenoid assembly with installation instructions

Product Highlights

This electrical interlock provides a positive safety lockout, preventing door handles from being operated while equipment is powered. It is compatible with several standard Hoffman door latching mechanisms.

Product Information

Standard Information

• Brand: Hoffman Enclosures Inc
• Manufacturers Part Number: AEK460NDH

Technical Specifications

• Voltage: 440/480 volt
• Nominal Amps @ 50Hz: 0.03 A
• Nominal Amps @ 60Hz: 0.025 A
• UNSPSC Code: 24102001
• Material: Steel
• Weight: 1.6 lb
• Finish: Plated
