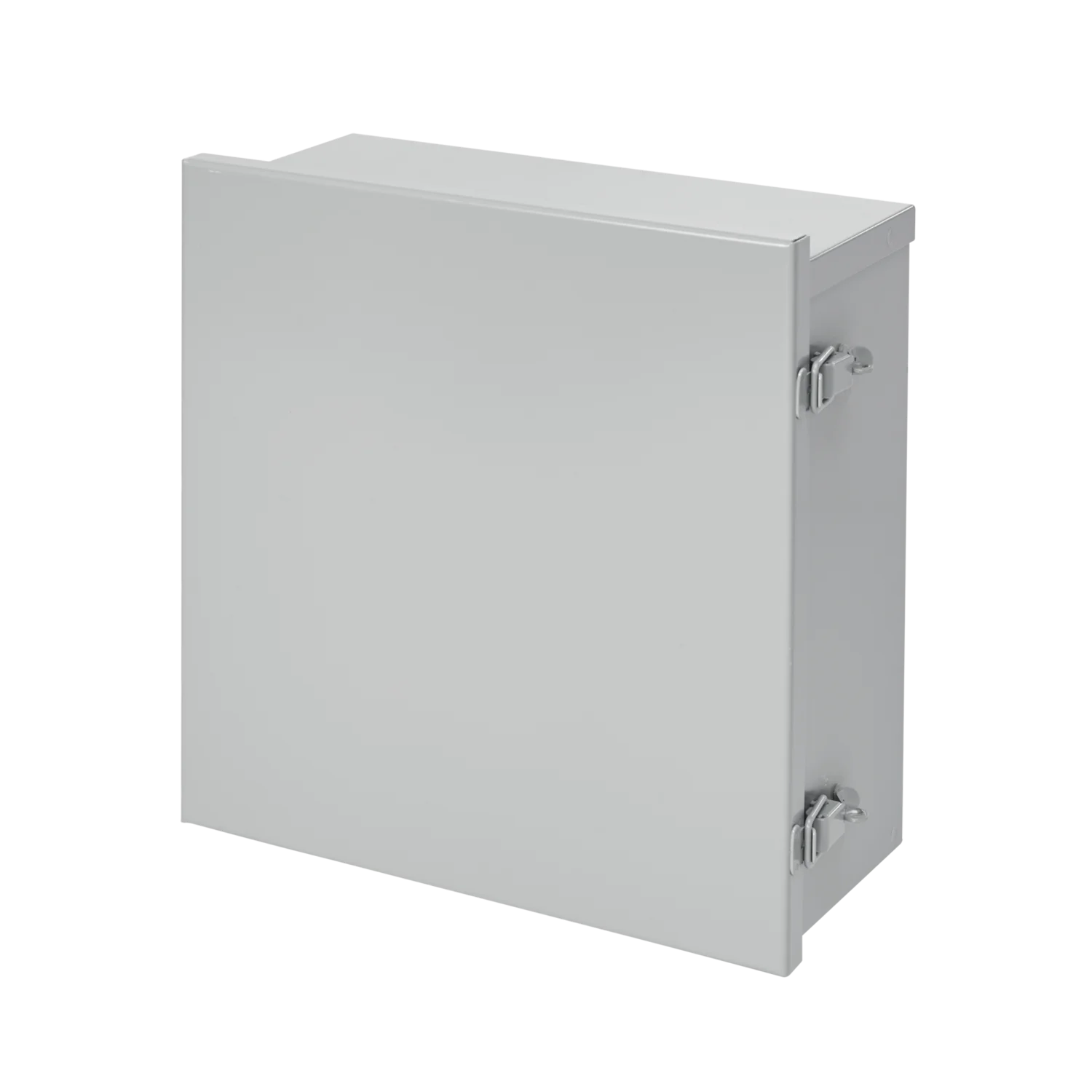

Hoffman A8R86HCLO Drip-Shield Hinged Lift-Off Cover 8.00x8.00x6.00

Product Description

The HOFFMAN A8R86HCLO Drip-Shield Hinged Lift-Off Cover, Type 3R features a removable cover for easy mounting and access with padlock pull catch latches. It protects components in outdoor applications subject to rain, sleet, snow or dripping water. The enclosure is finished with paint over plated surfaces.

• Drip-shield top and seam-free sides, front and back
• Galvanized steel lift-off hinges with stainless steel pins
• Provisions for padlocking on each draw pull catch

Product Highlights

The HOFFMAN A8R86HCLO enclosure is ideal for protecting components from rain, sleet, snow, or dripping water. It features a removable cover for easy access and padlock pull catch latches for security.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A8R86HCLO
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 38870
• Height: 8in
• Width: 8in
• Depth: 6in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 1.52 mm
• Door Thickness: 16ga
• Mounting: 9.12in
• Weight: 6lb
• UPC: 783510388706
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A3LO
• ECCN: EAR99
• UNSPSC: 39121324
• NEMA Rating: 3R
• Standard: UL 50, 50E Listed, Type 3R, File No. E27567, cUL Listed per CSA C22.2 No 94, Type 3R File No. E27567, NEMA/EEMAC Type 3R, CSA, File 42184: Type 3R, IEC 60529, IP32
• Type: Hinge-Cover Lift-Off, Type 3R
• Color Family: Gray
• Applications: Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
• Body Gauge: 16
• IP Rating: 32
• Size: 8.00x8.00x6.00 in
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510388706
