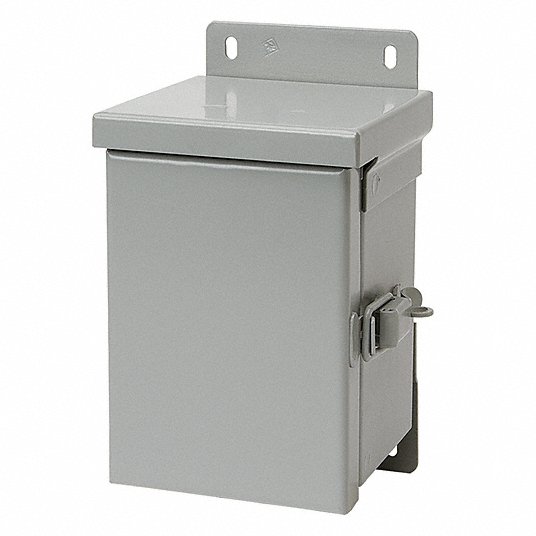

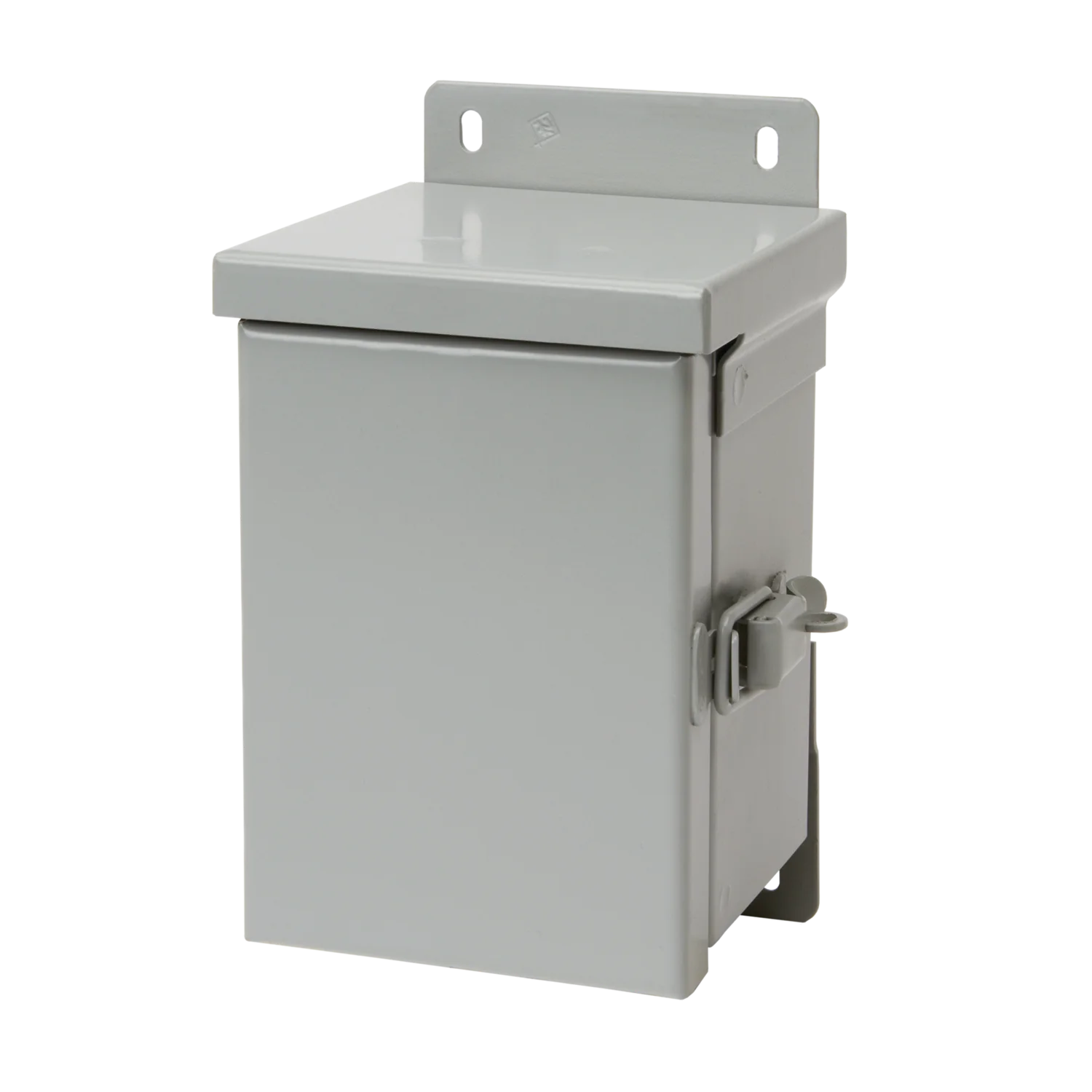

Hoffman A8R64HCR Hinge-Cover Small Drip-Shield Enclosure 8.00x6.00x4.00

Product Description

The HOFFMAN A8R64HCR hinge-cover small drip-shield enclosure protects wiring and electrical components in outdoor applications requiring protection from rain, sleet, snow, or dripping water. It offers the flexibility of securing the enclosure with an optional padlock and weldnuts for optional panel mounting. These enclosures have a size range of 6 x 4 x 4-in. to 12 x 12 x 10-in.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Plated steel hinge has stainless steel pin
• Weldnuts provided for mounting optional panels

Product Highlights

The A8R64HCR enclosure is ideal for building automation systems, BAS, and HVAC applications. It features knockouts on the bottom and provisions for padlocking.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A8R64HCR
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 38720
• Height: 8 in
• Width: 6 in
• Depth: 4 in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 16ga
• Mounting: 9in
• Knockout Pattern: B-C-D
• UPC: 783510387204
• ECCN: EAR99
• NEMA Rating: 3R
• Cover Mounting: Hinged Cover
• Body Material Thickness: 16 ga
• Closure Method: Padlock Hasp
• Compatible Panel Model Number: A8N6P
• Cover Closure Type: Hinged
• Cover Style: Solid
• Displayed Brand: HOFFMAN
• Enclosure Material: Steel
• Environment: Weather Resistant
• IP Rating: IP32
• Knockouts: Included
• Mounting Type: Wall
• NEMA Enclosure Rating: 3R
• Nominal Depth: 4 in
• Nominal Height: 8 in
• Nominal Width: 6 in
• Overall Depth: 4 in
• Overall Height: 8 in
• Overall Width: 6 in
• Panel Height: 6.25 in
• Panel Width: 4.25 in
• Product Type: Hinge Cover Small Drip-Shield Enclosure
• Standards: cUL Listed per CSA C22.2 No 94 File No E27567; File No E27567; IEC 60529; NEMA/EEMAC Type 3R; UL 50, 50E Listed
• UNSPSC: 39121301
• Type: Enclosure Only
• Enclosure Width: 6 in
• Enclosure Height: 8 in
• Enclosure Depth: 4 in
• Enclosure Rating: NEMA 3R
• Mount: Hinged
• UNSPSC Code: 31260000
• Approximate Depth: 4 in
• Approximate Height: 8 in
• Approximate Width: 6 in
• Brand: nVent HOFFMAN
• Enclosure Mounting: Panel Mount
• Size: Small in
• Unit of Measure: EA
