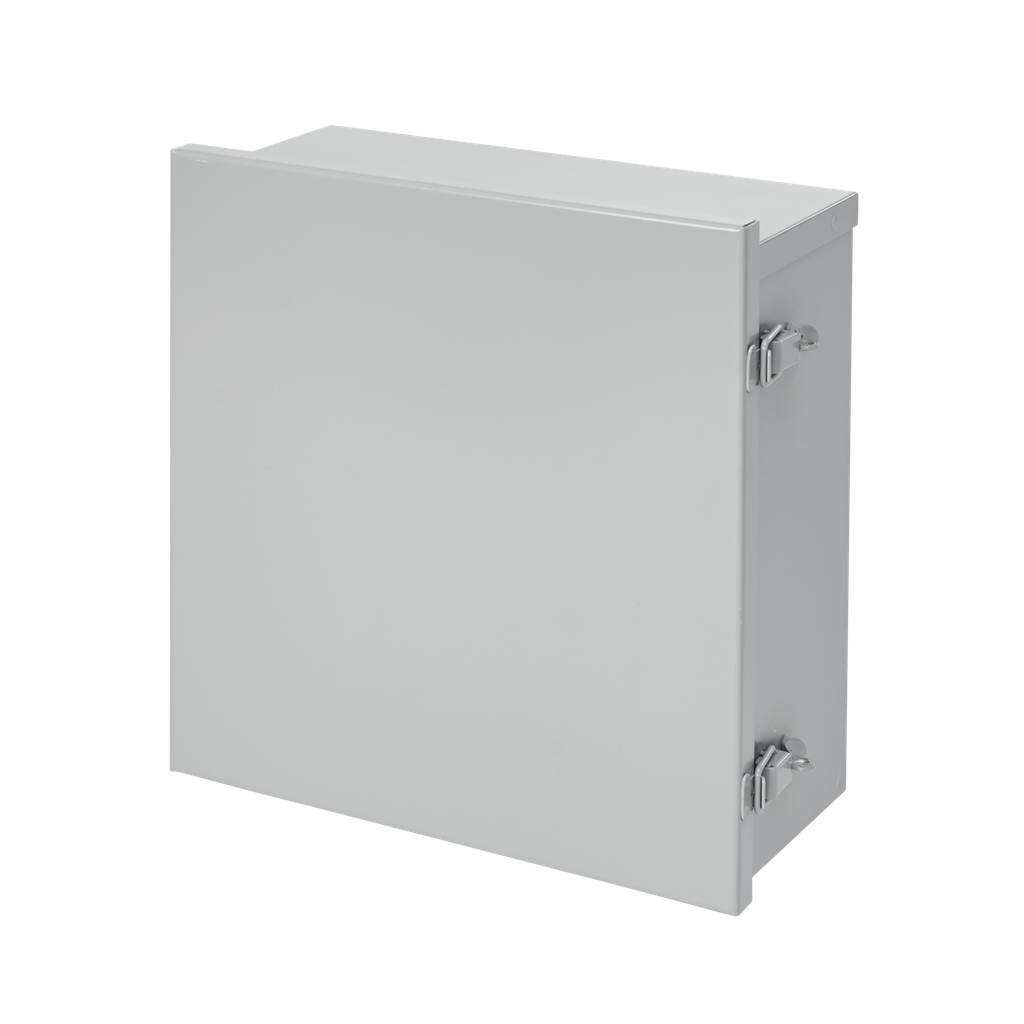

Hoffman A8R64HCLO Type 3R Enclosure 8 x 6 x 4 in

Product Description

The Hoffman A8R64HCLO series NEMA 3R hinge-cover lift-off enclosures house controls and instruments, providing protection in outdoor installations against rain, sleet, and snow. These enclosures also protect indoor installations against dripping water, making them ideal for building automation systems, BAS, and HVAC applications.

• Drip-shield top and seam-free sides, front, and back
• Galvanized steel lift-off hinges with stainless steel pins
• Cover fastened securely with draw-pull catches

Product Highlights

NEMA 3R enclosure protects against rain, sleet, and snow. Features drip-shield top, galvanized steel hinges, and draw-pull catches.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A8R64HCLO
• Country of Origin: Mexico

Technical Specifications

• Type: Wall-Mounted / Pad-Mounted Enclosures
• Material: Steel
• Enclosure Width: 6 in
• Enclosure Height: 8 in
• Enclosure Depth: 4 in
• Mount: Hinged
• Applications: Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
• Body Gauge: 16
• Body Thickness: 1.52 mm
• Color Coding: ANSI 61
• Enclosure: 3R
• IP Rating: 32
• Standard: CSA, File 42184: Type 3R,CUL Listed Per CSA C22.2 No 94; Type 3R File No. E27567,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27567
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Finish: Galvanized
• NEMA Rating: 3R
• Enclosure Cover Type: Hinged Lift-Off
• Latch: Draw Pull Clamp
• Color Family: Gray
• Height: 8 in.
• Depth: 4 in.
• Width: 6 in.
