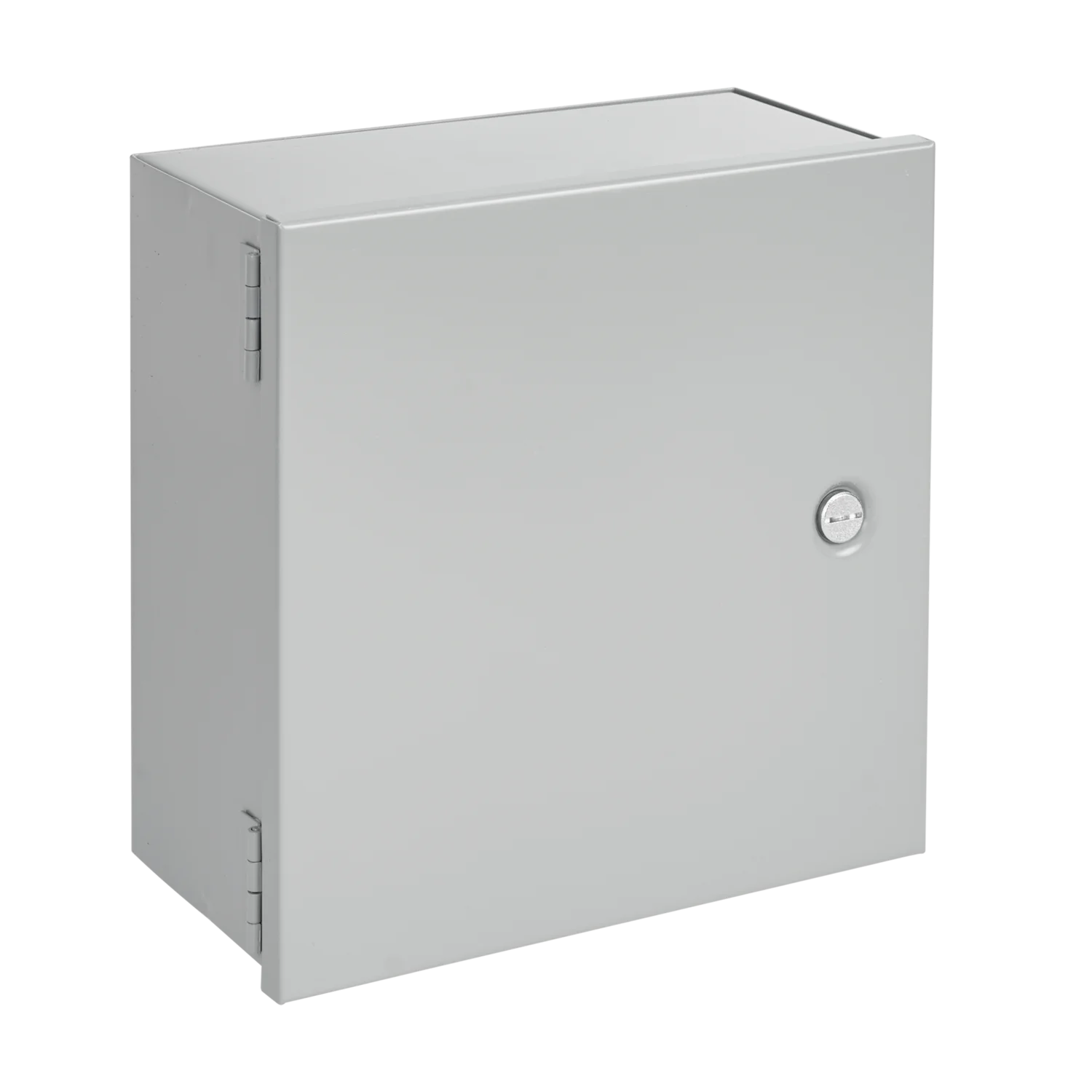

Hoffman A8N86 Small Hinge-Cover Enclosure 8.00x8.00x6.00

Product Description

The HOFFMAN A8N86 small hinged-cover enclosure is designed for indoor applications that don't require oil- or dust-tight enclosures. Measuring 8.00x8.00x6.00 inches, this Type 1 enclosure features a flush slotted latch operated with a screwdriver and provides mounting for an optional panel. It features a durable ANSI 61 gray polyester powder-coated finish inside and out.

• Butt hinges on door
• Flush slotted latch operated with a screwdriver
• Mounting holes on back of enclosure

Product Highlights

The HOFFMAN A8N86 is a Type 1 enclosure with a hinged door and flush slotted latch, suitable for indoor use.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A8N86
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 34890
• Height: 8in
• Width: 8in
• Depth: 6in
• Material: Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 16ga
• UPC: 783510348908
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A1SM
• Enclosure Rating: NEMA 1
• Mount: Hinged
• Suitable For: Wall, Interior
• Number in Pack: 1
• Box Shape: Square
• Mounting Style: Wall, Panel, Screw, Flush
• Type: Enclosure
• IP Rating: IP30
• Model: A8N86
• Style: Compact
• Finish Type: Steel
