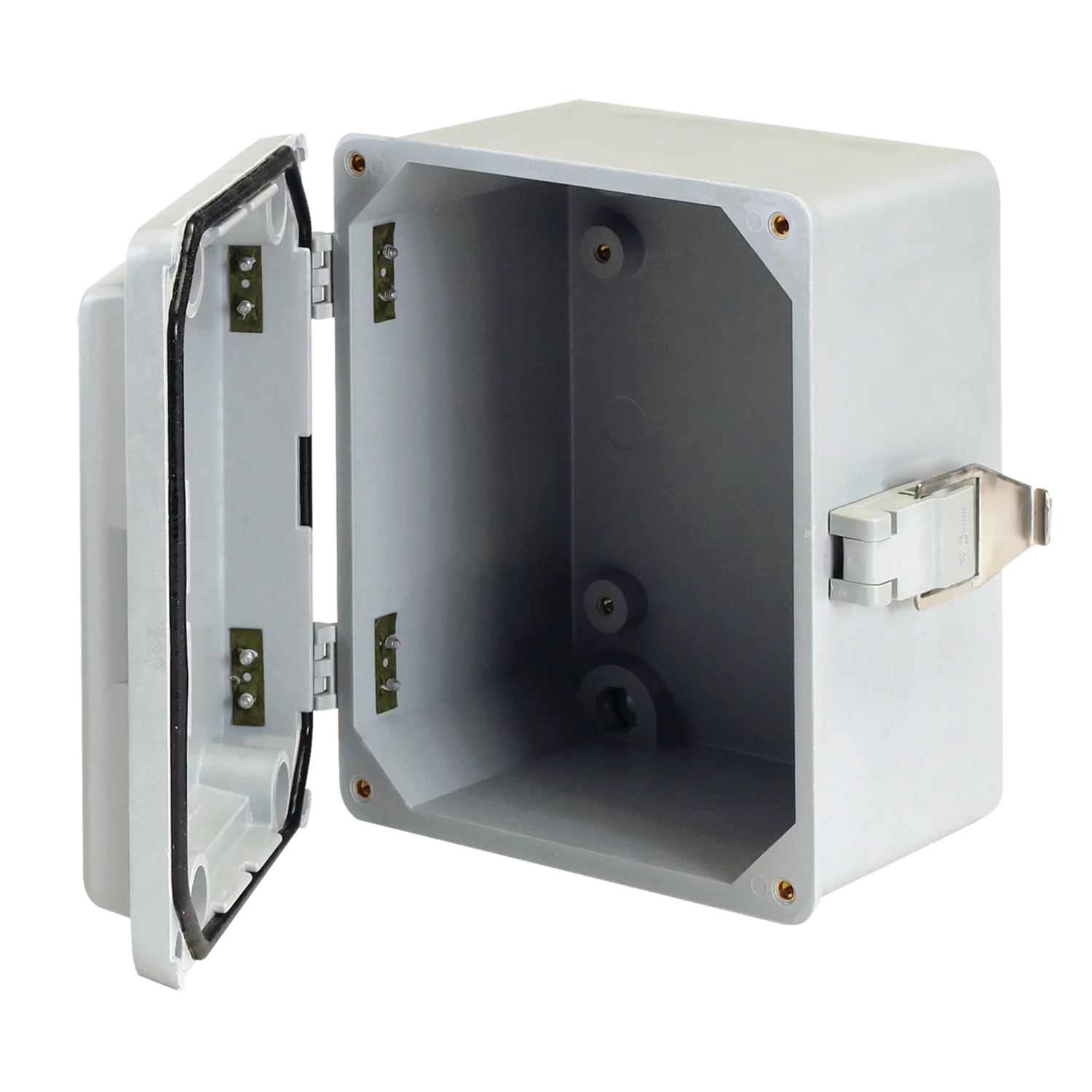

Hoffman A865JFGR Screw Cover Quick-Release Latch Type 4X, 7.50x6.00x5.20, Fiberglass

Product Description

The HOFFMAN A865JFGR screw cover quick-release latch type 4X enclosure is designed to withstand harsh environments. This non-metallic enclosure features compression-molded fiberglass material that offers excellent temperature and chemical resistance. It is suitable for a broad range of applications.

• Compression-molded fiberglass material has excellent temperature and chemical resistance qualities.
• Seamless foam-in-place gasket assures water-tight and dust-tight seal.
• Threaded internal bosses provided for mounting optional panels and terminal block kits.

Product Highlights

The HOFFMAN screw cover enclosure features a simple design suitable for various applications, providing a secure and reliable solution for protecting components in demanding environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A865JFGR
• Country of Origin: USA

Technical Specifications

• Article Number: 41150
• Height (H): 8in
• Width (W): 6in
• Depth (D): 5in
• Material: Fiberglass
• Finish: Smooth Matte
• Color Code: RAL 7035
• Thickness (T): 0.15in
• Cover Style: Solid
• Latch Type: Screws
• UPC: 783510411503
• EAN: 8713574291225
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Primary brand: Hoffman
• Secondary brand: nVent
• Main function: Junction box
• Product series / family name: Industrial - wall mounted industrial enclosures - fiberglass and thermoplastic wall mounted industrial enclosures
• Sub-range name: Screw or hinge cover with quick-release latch type 4X series
• Functions: Screw-cover junction box
• Color: RAL7035 light gray
• Degree of protection: NEMA 4X
• Mounting: Surface
• Brand Name: Hoffman
• Country of Origin: US
• Cover_Type: Hinged Solid/Screw
• Cubic_Capacity: 234 cubic in
• NEMA_Rating: NEMA 4X/IP66
• Series: A50
• Size: 7.50X6.00X5.19 in
• Special Features: Compression molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties Cover securely fastens to the body with four captivated type 316 stainless steel cover screws Fiberglass material is easily punched, drilled, filed or sawed Material is halogen-free Polycarbonate windows are permanently bonded in place Screw cover enclosures have easily removable covers attached to body with internal plated steel hinges Sealing washers are furnished with enclosure Seamless foam in place gasket assures a watertight and dust tight seal Threaded internal bosses provided for mounting optional panels and terminal block kits
• Standard: Mounting brackets required to meet UL/CSA external mounting requirements., UL 508A Listed, Type 3, 3R, 4, 4X, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 3, 3R, 4, 4X, 12, 13,, File No. E61997, Enclosure flammability evaluated per UL 508
• Sub_Brand: Hoffman
• Type: Screw- or Hinge-Cover with Quick-Release Latch, Type 4X
• Approval: UL 508A, CUL, CSA C22.2
