Hoffman A864DL Removable Hinge Quick-Release Latch Contoured Type 12, 8x6x4

Product Description

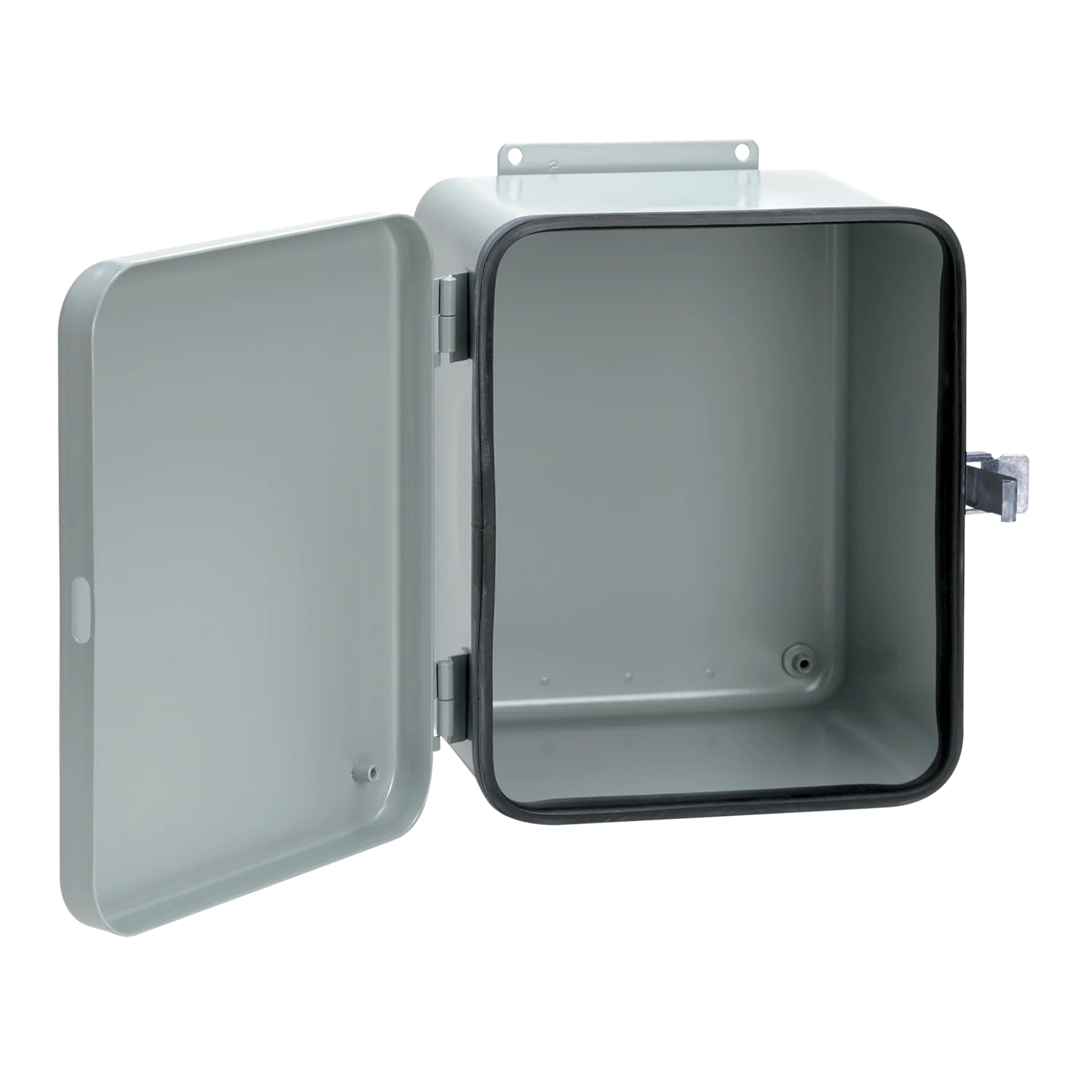

The HOFFMAN A864DL enclosure features a quick-release latch, mounting brackets, and rounded corners. This enclosure is designed for applications where panel or cover mounting of controls is desired and is ideal for protecting equipment from indoor contaminants.

• Drawn enclosure with no welded seams or sharp corners
• Removable door with unique lift-off hinges
• External wall-mounting brackets for easy installation

Product Highlights

This Hoffman enclosure is designed to protect equipment from indoor contaminants and features a quick-release latch for easy access.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A864DL

Technical Specifications

• Article Number: 60000
• Height (H): 8in
• Width (W): 6in
• Depth (D): 4in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness (T): 16ga
• Mounting (G x H): 8.50 x 4.12in
• Overall Dimensions (L x W): 9.00 x 7.12in
• UPC: 783510600006
• UNSPSC Code: 31260000
• Approximate Depth: 4 in
• Approximate Height: 8 in
• Approximate Width: 6 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A864DL
• UPC Code: 78351060000
• Overview: Type 12 Enclosure, Removable Hinge with Quick-Release Latch
• Color Coding: ANSI 61
• Cover Type: Removable, Hinged with Quick-Release Latch
• Gauge: 16
• Size: 8.00x6.00x4.00 in
• Standard: CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12 And 13,UL 508A Listed; Type 12, 13; File No. E61997
• Type: Contoured
• Sub Brand: Hoffman
• GTiN: 00783510600006
• Product UPC: 78351060000
• Depth: 4 Inch
• Height: 8 Inch
• Length: 8.1 Inch
• Thickness: 1.52 mm
• IP/NEMA Rating: IP65, NEMA 12
• Lock: Quick-Release Latch
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Panel Size: 6.75 x 4.88 in
• Series: A51
• Width: 6 in
