Hoffman A845DSC Flat and Dome Screw Cover Contoured Type 4, 8.00x4.00x3.75

Product Description

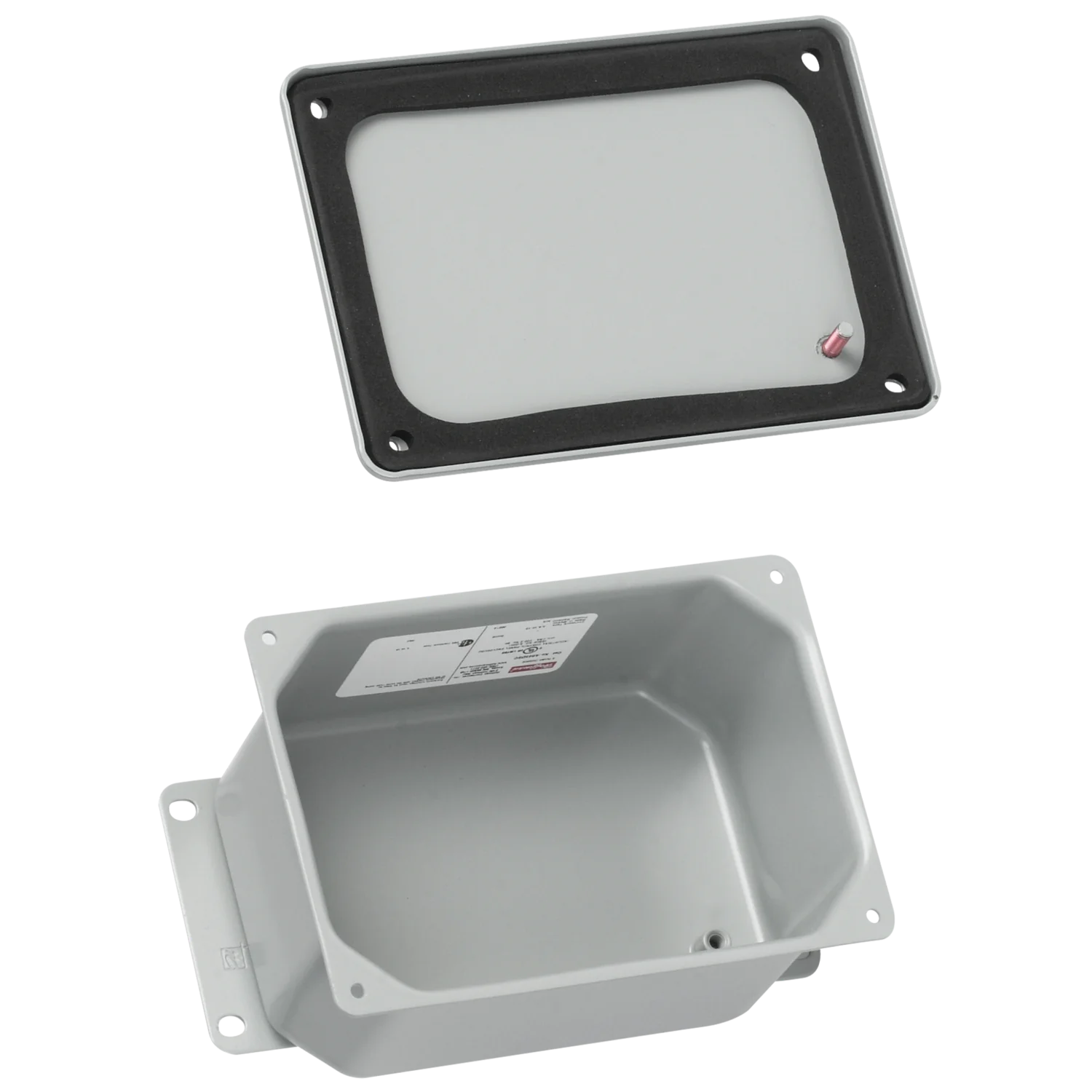

The HOFFMAN A845DSC is an economical solution for electrical and terminal wiring applications that don't require a back panel. This enclosure features aesthetic, rounded corners and is available in flat and dome cover models for mounting flexibility. It has an ANSI 61 gray polyester powder paint finish.

• Drawn enclosure
• No welded seams or sharp corners
• Cover screws
• Formed flanged cover
• Oil-resistant gasket

Product Highlights

The Hoffman A845DSC junction box is ideal for a broad range of electrical and terminal wiring applications. The enclosure features external welded-on mounting brackets for easy installation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A845DSC
• Country of Origin: Mexico

Technical Specifications

• Article Number: 57380
• Height: 8 in. (203mm)
• Width: 4 in. (102mm)
• Depth: 3.75 in. (95mm)
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Coding: ANSI 61
• Thickness: 1.52 mm
• Cover Style: Dome
• Mounting: External Feet
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A845DSC
• Type: Contoured,Flat And Dome Cover,Type 4
• Size: 8.00x4.00x3.75 in
• Standard: CSA, File No. 42186: Type 4, 12, And 13,CUL Listed Per CSA C22.2 No. 94; Type 4, 6, 12, 13; File No. E61997,IEC 60529, IP67,NEMA Type 4, 6, 12, And 13,UL 508A Listed; Type 4, 6, 12, 13; File No. E61997
• Sub Brand: Hoffman
• GTiN: 00783510573805
• Product UPC: 78351057380
• Weight: 3.3 lb
• Length: 8.6 Inch
• Material Thickness: 16 Gauge
• Cover Mounting: Screw On
• Cover Latching: Screw
• NEMA: 4
• Capacity: 109.1 cu in
