Hoffman A806LP Lift-Off Clamp Cover Enclosure 8.00x6.00x3.50

Product Description

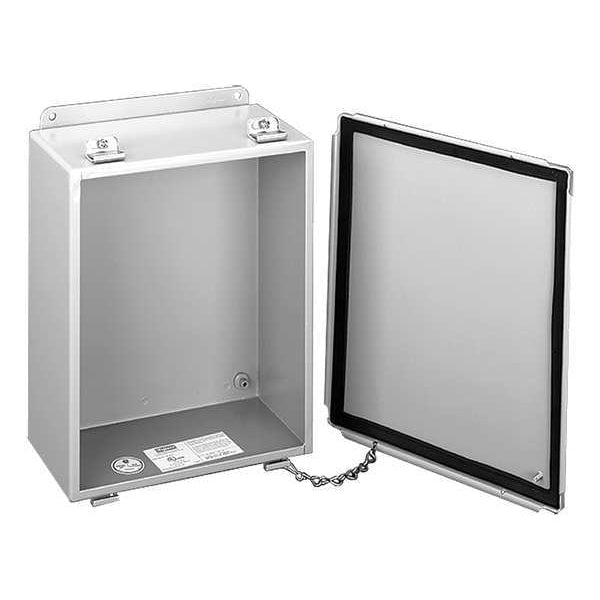

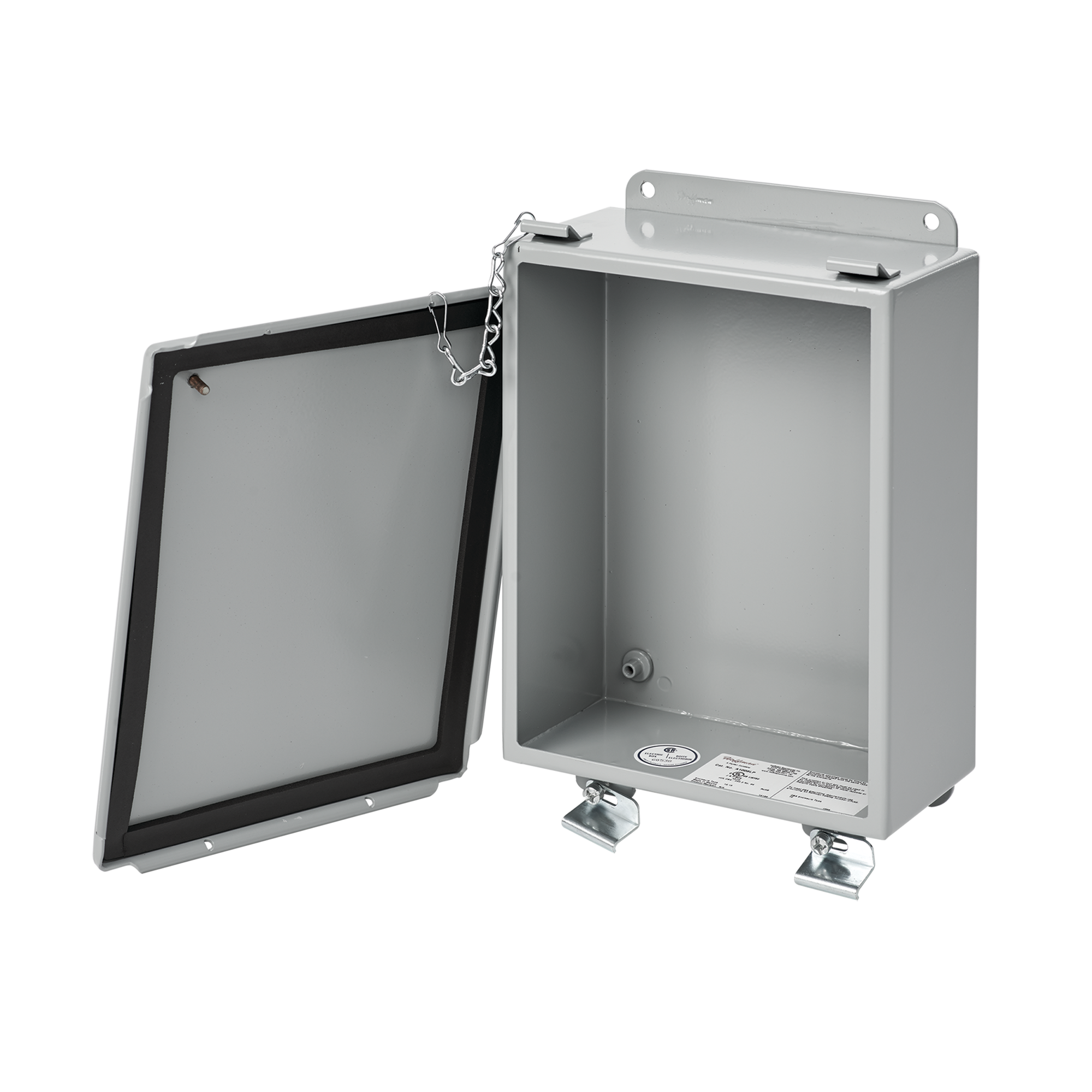

The HOFFMAN A806LP lift-off clamp cover enclosure meets basic functionality requirements for housing controls and instrumentation. Features continuously welded seams ground smooth, screw-down clamps, and a lift-off cover. Designed with a bonding provision on the cover and a chain to hold the cover to the box when removed.

• Seams continuously welded and ground smooth
• Screw-down clamps
• Lift-off cover

Product Highlights

This enclosure features a chain-secured, lift-off clamp cover, bonding provision, and oil-resistant gasket.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A806LP
• Country of Origin: MX

Technical Specifications

• Article Number: 54060
• Height: 8 in
• Width: 6 in
• Depth: 3.5 in
• Material: Mild Steel
• Finish: Polyester Powder
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Mounting: 8.75 x 4.00in
• Overall Dimensions: 9.50 x 6.64in
• UPC: 783510540609
• Bulletin Number: A51LP
• Category: Business & Industrial
• Mfr: Hoffman Enclosures, Inc.
• Part Status: Active
• Features: Sealing Gasket, Wall Mount
• Container Type: Junction Box
• Ratings: IP65, NEMA 12, 13, UL-50, 50E
• Size / Dimension: 7.992" L x 5.984" W (203.00mm x 152.00mm)
• Base Product Number: A806
• Design: Cover Included
• Application: Controls and Drives
• Brand: nVent HOFFMAN
• Catalog Number: A806LP
• EU RoHS Indicator: NEW
• Harmonization Tariff Schedule Code: 8538100000
• IP Rating: IP65
• Item Group: A51LP
• Manufacturer: HOFFMAN ENCLOSURES
• Modification Services: Yes
• NEMA Rating: 12 Indoor
• Overall Dimensions [Metric]: 241 x 169 mm
• Panel Size: 6.75 x 4.88
• Panel Size [Metric]: 171 x 124 mm
• Panel Type: A8P6
• Size: 8.00x6.00x3.50 in
• Thickness [Metric]: 1.9 mm
• Type: Mild Steel Industrial Terminal and Junction Boxes
• UNSPSC: 39121303
• UPC 11: 78351054060
• UPC 12: 783510540609
• Model: A806LP
• Country of Origin: United States
• Closure Method: Screw Down Clamps
• Cover Closure Type: Clamp On
• Knockouts: No
• Metallic / Non-Metallic: Metallic
• Cover Style: Solid
• Series: A51LP
• Gasket: Neoprene
• Interior Panel: 32FR93
• Metal Gauge: 14/16 ga
• Standards: CSA, File No 42184: Type 12, cUL Listed Per CSA C22.2 No 94, File No E27525, File No E61997, IEC 60529, NEMA/EEMAC Type 12 and 13, UL 50, 50E Listed, UL 508A Listed
• Enclosure Cover Features: Screw Clamps with Chain
• Compatible Panel Model Number: A8P6, A8P6G
• Environment - MERCH: Dust Tight
• Includes Knockouts: Knockouts Not Included
• Gasket Material: Neoprene
