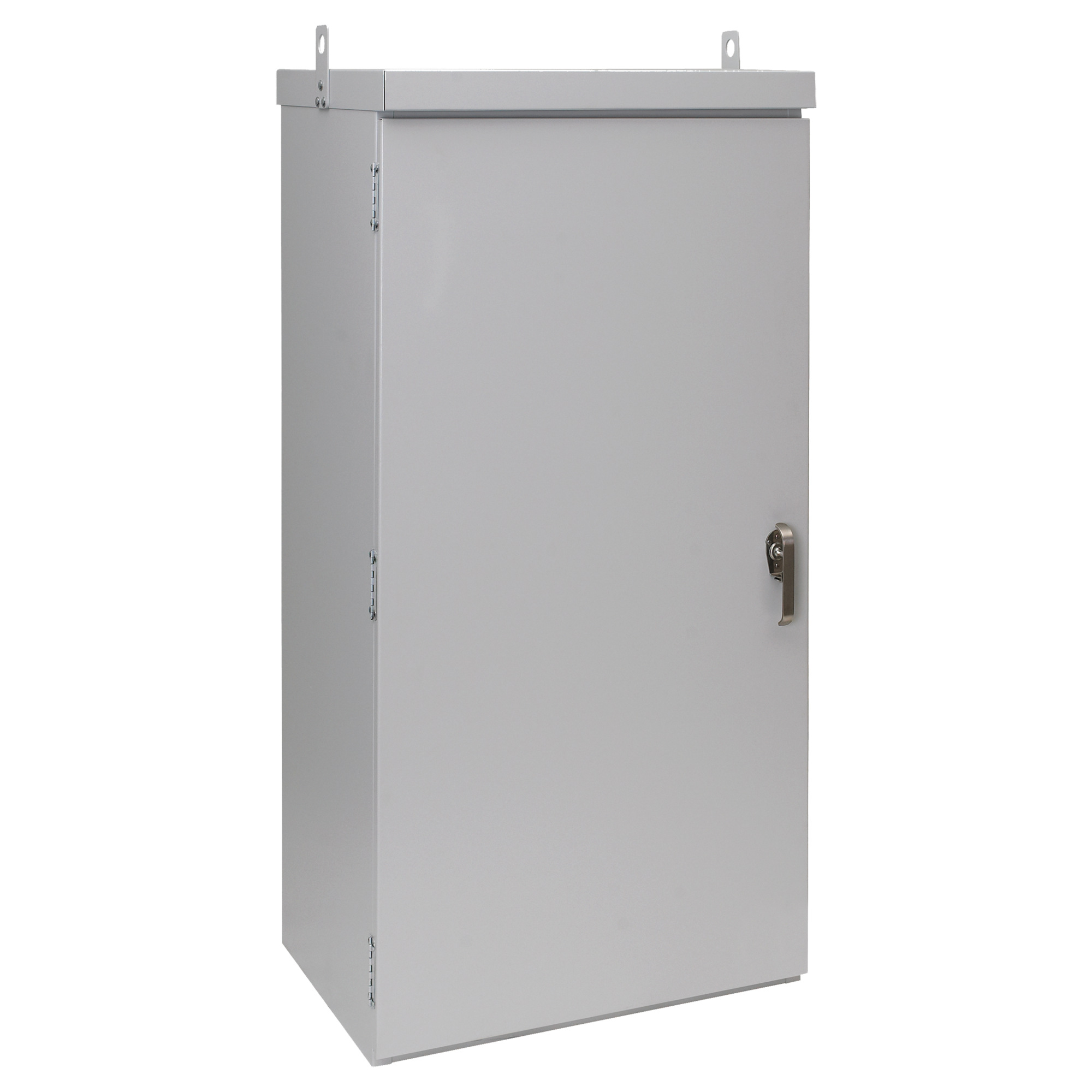

Hoffman A72R3624FSLP WeatherPro Outdoor Pad Mount Type 3R 72.00x36.00x24.00

Product Description

The HOFFMAN A72R3624FSLP WeatherPro Outdoor Pad Mount Enclosures protect controls, drives, power distribution components or contactors in outdoor commercial or industrial power distribution and control applications. The overlapping two-door models with no center post allow full-width access to enclosure interior.

• 3-point latching system with heavy duty handle
• Padlock provision in handle
• Open bottom with pre-punched mounting hole flange

Product Highlights

WeatherPro Outdoor Pad Mount Enclosures with overlapping doors and no center post allow full-width access to enclosure interior.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A72R3624FSLP
• Country of Origin: MX

Technical Specifications

• Article Number: 14417
• Height (H): 72in
• Width (W): 36in
• Depth (D): 24in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Light Gray
• Color Code: RAL 7035
• Thickness (T): 14ga
• Mounting Dimensions (F x G): 7.90 x 12.90in
• UPC: 783510144173
• Application: Controls and Drives; Power Distribution
• ARRA Compliant: C
• Brand: nVent HOFFMAN
• Buy American Compliant: C
• Catalog Number: A72R3624FSLP
• Country of Origin: MX
• EU RoHS Indicator: NEW
• Harmonization Tariff Schedule Code: 8538100000
• Height [Metric]: 205.7400 cm
• Item Group: A3PM
• Length: 41.0000 in
• Length [Metric]: 104.1400 cm
• Manufacturer: HOFFMAN ENCLOSURES
• NEMA Rating: 3R Weather-resistant, except dust
• Size: 72.00x36.00x24.00 in
• Sub Brand: WeatherPro
• Type: Wall-Mounted / Pad-Mounted Enclosures
• UNSPSC: 39121324
• UPC 11: 78351014417
• UPC 12: 78351014417
• Width [Metric]: 86.3600 cm
• Mounting: Surface
• IP/NEMA Rating: NEMA 3R, NEMA 3
• UNSPSC Code: 31260000
• Approximate Depth: 24 in
• Approximate Height: 72 in
• Approximate Width: 36 in
• Unit of Measure: EA
