Hoffman A722430FSDA Free-Stand Dual Access Type 4 72x24x30

Product Description

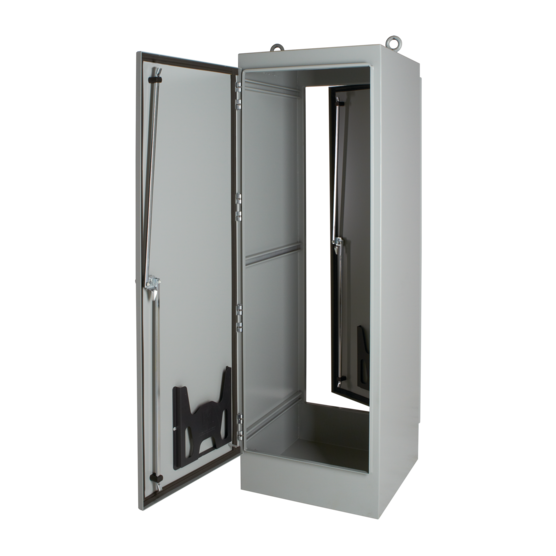

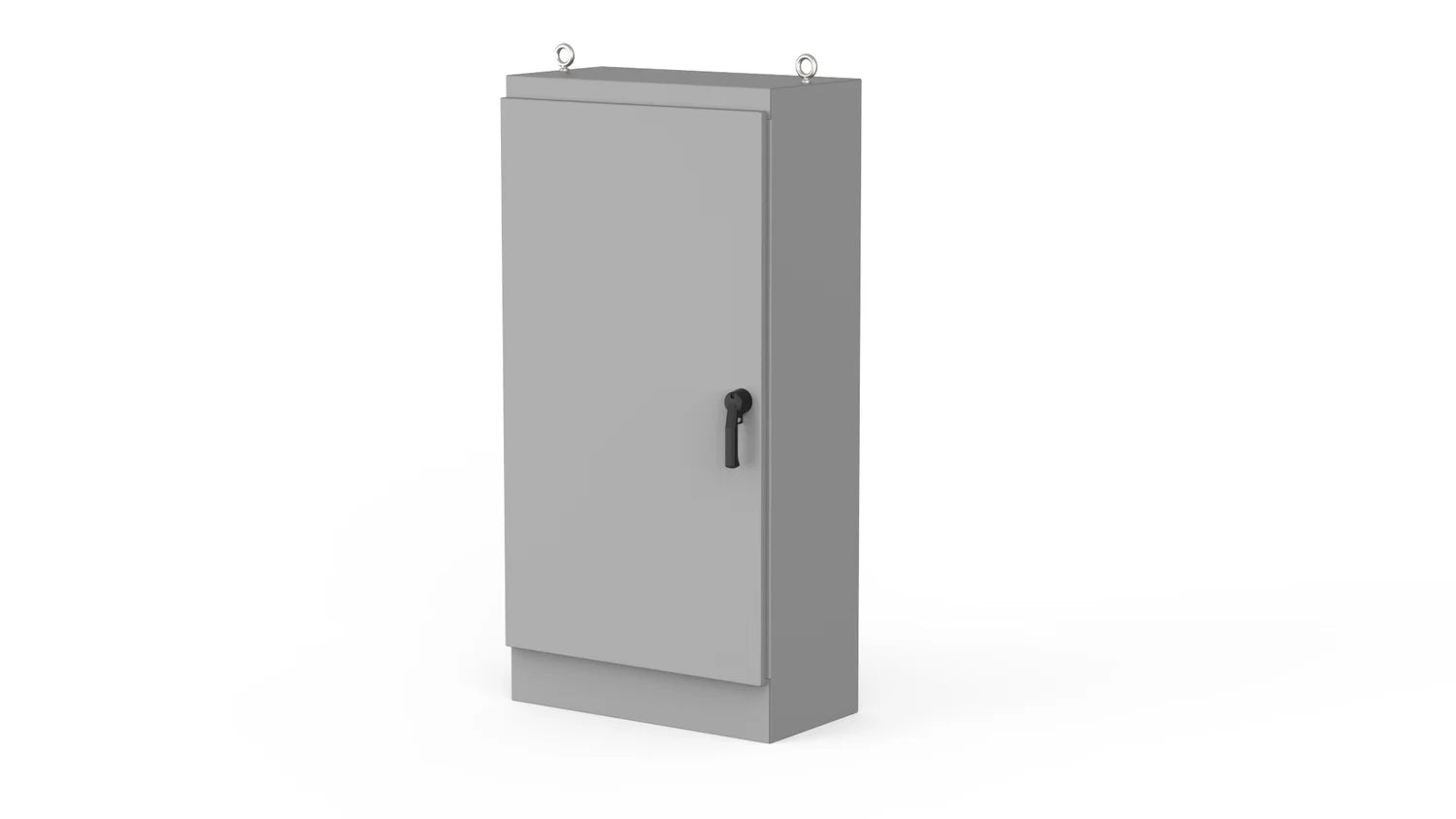

The HOFFMAN A722430FSDA is a free-stand dual access enclosure. Available with front or front and rear access, these Type 4 enclosures have sturdy unibody construction and flexible internal mounting options to provide panel and component mounting flexibility.

• Seams continuously welded and ground smooth; no holes or knockouts
• Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
• Lifting eyes for easy handling

Product Highlights

This enclosure features continuously welded seams, stiffeners, and lifting eyes for easy handling.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A722430FSDA

Technical Specifications

• Article Number: 25060
• Height (H): 72.06in
• Width (W): 24.06in
• Depth (D): 30.06in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Interior Color: White
• Color Code: ANSI 61
• Thickness (T): 12ga
• Lifting Eye Quantity: 4
• IP Rating: IP66
• NEMA Rating: 4
• UPC: 783510250607
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Applications: Controls and Drives; Power Distribution
• Standard: CSA,CUL Listed Per CSA C22.2 No. 94,E.I.A. RS310D,File No. 42186,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
• Type: Mild Steel Freestanding Industrial Enclosures
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510250607
• Product UPC: 78351025060
• Depth: 30 Inch
• Height: 45 Inch
• Length: 84 Inch
• Thickness: 2.66 mm
• Enclosure Hinge Type: Standard Hinge
• Enclosure Interior Color: Gray
• Enclosure Mount Type: Free-Standing
• Enclosure Depth: 30"
• Enclosure Composition: Painted Steel
• Enclosure Height: 72"
• Enclosure Environment Rating: Indoor
• Enclosure Door Type: Solid
• Enclosure Width: 24"
• Component: Steel Enclosure
• Enclosure Number of Doors: 1 Door
• Enclosure NEMA Rating: NEMA Type 12
• Manufacturer: Hoffman
• Enclosure Lock Type: Keylock
• Enclosure Latch Type: 3-Point
