Hoffman A6N64 NEMA 1 Enclosure 6.00x6.00x4.00

Product Description

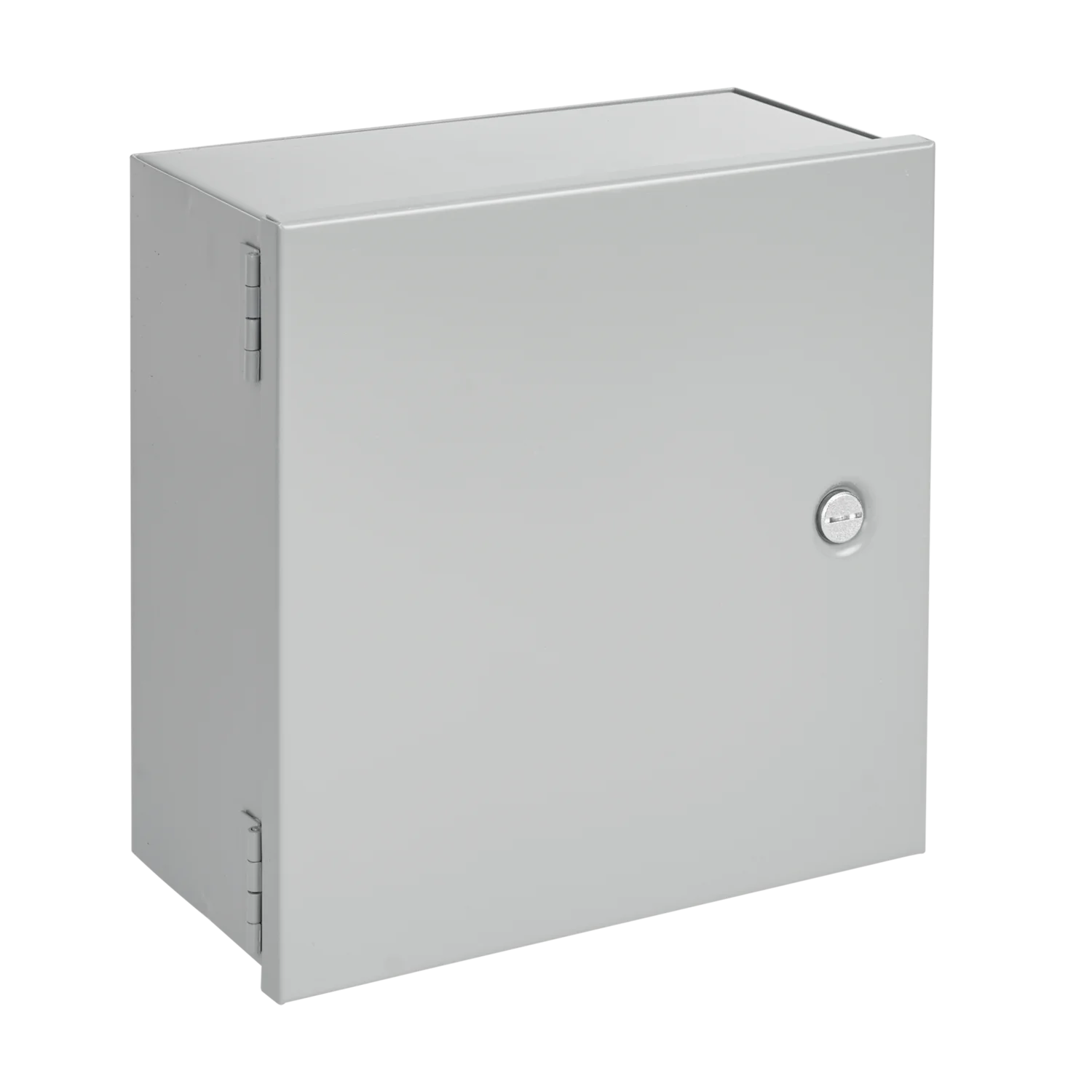

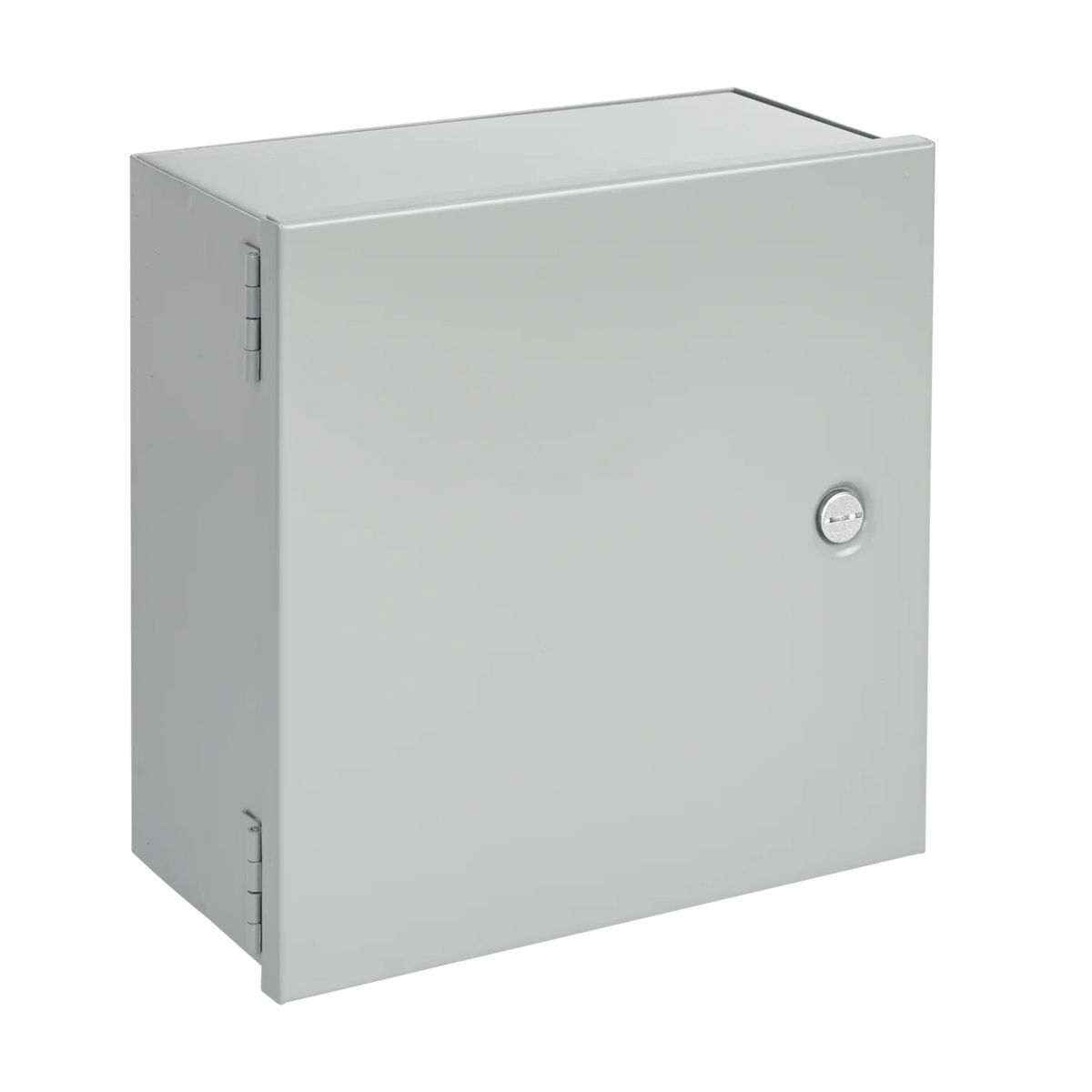

The HOFFMAN A6N64 NEMA 1 Enclosure is a small hinge-cover enclosure with dimensions of 6.00x6.00x4.00 inches, constructed of gray steel. Designed for indoor applications, it meets basic functionality requirements where oil- or dust-tight enclosures are not needed. It is suitable for controls and drives, and power distribution applications.

• Features butt hinges on the door.
• Includes a flush slotted latch operated with a screwdriver; optional latches are available.
• Weldnuts are provided for mounting optional panels.

Product Highlights

The HOFFMAN A6N64 is a NEMA Type 1 enclosure with a hinged cover, ideal for indoor use where basic protection is required.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A6N64

Technical Specifications

• IGCC: 4476
• Size: 6.00x6.00x4.00 in
• Type: Wall-Mounted / Pad-Mounted Enclosures
• Color: Gray
• Depth: 4 in
• Panel: A6N6P
• Width: 6 in
• Finish: Powder Coated
• Height: 6 in
• Material: Mild Steel
• IP Rating: IP30
• Color Code: ANSI 61
• Application: Controls and Drives; Power Distribution
• NEMA Rating: 1 Indoor; electrical protection
• Type Number: Type 1
• Family group: WIREWAY/ENCLOSURES
• Manufacturer: HOFFMAN
• Perforated Panel: A6N6PP
• Protection Rating: NEMA Type 1
• Thickness (Metric): 1.52 mm
• Thickness (Imperial): 16 ga
• Article Number: 34340
• Enclosure Width: 6 in
• Enclosure Height: 6 in
• Enclosure Depth: 4 in
• Enclosure Rating: NEMA 1
• Mount: Hinged
• Standard: CSA, File 42184: Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27567,IEC 60529, IP30,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27567
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Depth (mm): 102 mm
• Height (mm): 152 mm
• Length: 6.3 Inch
• Width (mm): 152 mm
• Cover Type: HINGED
• Nema Rating: TYPE 1
• UNSPSC Code: 24102001
