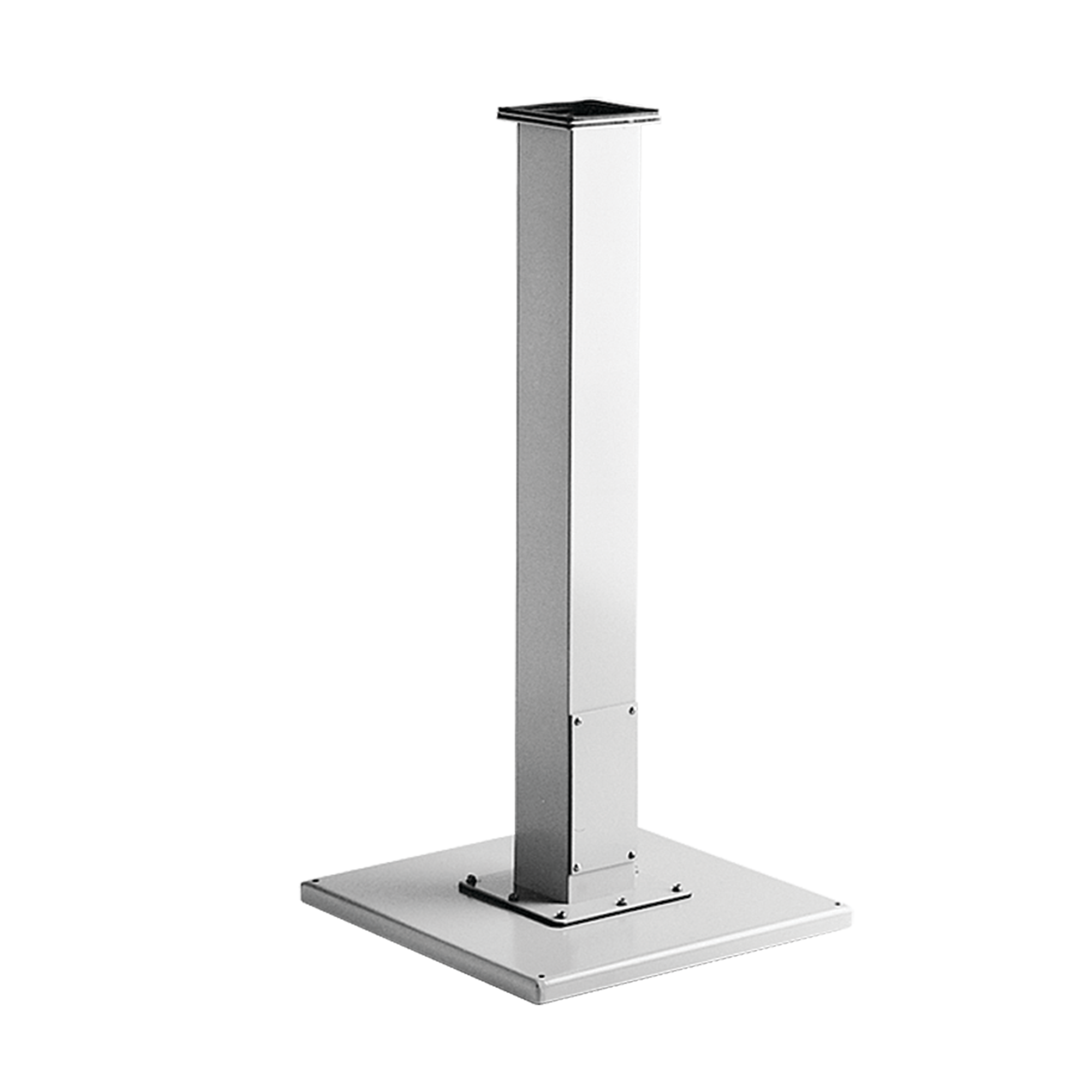

Hoffman A66CCOL Pedestal System Straight Column 35.00x6.00x6.00

Product Description

The HOFFMAN A66CCOL pedestal system enables enclosures and consolets to be floor mounted for optimal viewing and operating height. Columns can be mounted on either base, through the vertical column or directly to the enclosure. Columns have flanges at each end and a gasketed access plate. Bases and columns must be ordered separately.

• Columns can be mounted on either base, through the vertical column or directly to the enclosure
• A cutout must be made in the enclosure if the wires are to come through the column
• Columns have flanges at each end and a gasketed access plate

Product Highlights

The A66CCOL pedestal system is ideal for mounting small control or instrumentation devices on desktops, pedestals, or other flat surfaces.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A66CCOL
• Country of Origin: MX

Technical Specifications

• Article Number: 57340
• Height: 35in
• Width: 6in
• Depth: 6 in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• Weight: 22lb
• UPC: 783510573409
• EAN: 8713574285255
• Bulletin Number: P1

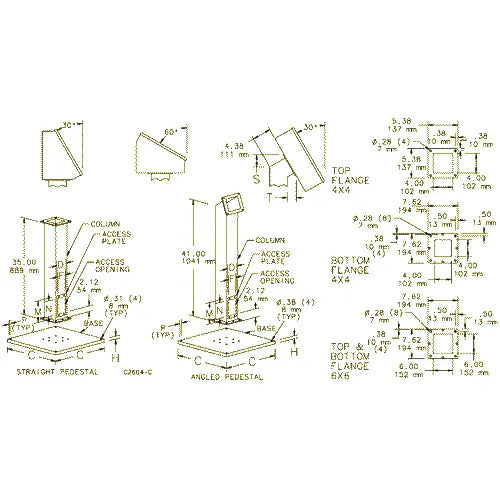

• Dimension F: 4.75 in
• Dimension M: 8 in
• Dimension N: 6.75 in
• Dimension D: 5.75 in
• Description: Straight Pedestal Column
• Brand: nVent HOFFMAN
• Manufacturers Part Number: A66CCOL
• Special Program: Hoffman On Demand
• IP/NEMA Rating: NEMA 12, NEMA 13
• Approximate Depth: 6 in
• Approximate Height: 35 in
• Approximate Width: 6 in
• For Use With: HMI Consolets
• Size: 35.00x6.00x6.00 in
• Type: Pedestals
• UPC Code: 78351057340
• Application: Controls and Drives
• ARRA Compliant: C
• Assemble to Order: No
• Buy American Compliant: C
• Catalog Number: A66CCOL
• Country of Origin: MX
• Depth [Metric]: 152 mm
• EU RoHS Indicator: NEW
• Harmonization Tariff Schedule Code: 7326908688
• Height [Metric]: 20.3200 cm
• Interchangeable: No
• Item Group: P1
• Length [Metric]: 93.9800 cm
• Modification Services: Yes
• Mounting Type: Pedestals and Pedestal Accessories
• Package Quantity: 1
• Standards: RoHS Compliant
• Thickness [Metric]: 1.9 mm
• UNSPSC: 39121321
• UPC 11: 78351057340
• UPC 12: 783510573409
• Width [Metric]: 20.3200 cm
• Manufacturer: HOFFMAN ENCLOSURES
• Length: 8.0000 in
