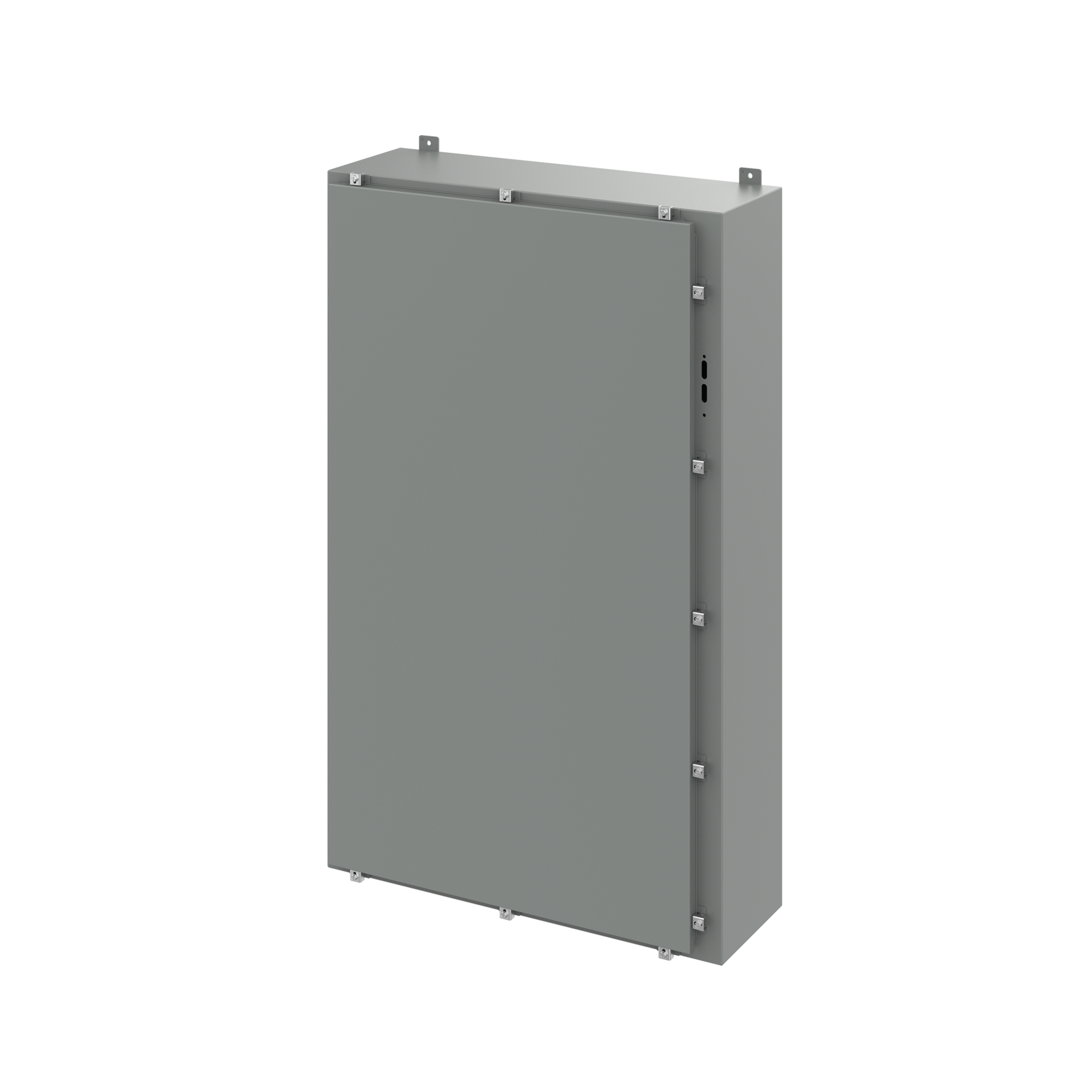

Hoffman A60HS3712LP Disconnect Enclosure with Clamps Type 4, 60.00x37x12.00

Product Description

The HOFFMAN A60HS3712LP disconnect enclosure is designed for applications where a clamp-secured door is needed. Clamps on three sides keep liquids and contaminants out. The preferred cutout accepts major brand disconnect switches and circuit breakers. It is furnished with adjustable door interlock bracket fastened to door and instructions to locate and install disconnect switches.

• Seams continuously welded and ground smooth
• External mounting brackets
• Stainless steel door clamps on three sides of door

Product Highlights

This Hoffman disconnect enclosure features continuously welded seams, external mounting brackets and stainless steel door clamps. It is ideal for disconnect applications needing a clamp-secured door.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A60HS3712LP
• Country of Origin: US

Technical Specifications

• Article Number: 20190
• Height: 60 in
• Width: 37.38 in
• Depth: 12 in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14 ga
• Clamp Quantity: 11
• Data Pocket Size: 12.00 x 12.00 in
• UPC: 783510201906
• Bulletin Number: A19
• IP Rating: IP66
• Size: 60.00x37.38x12.00 in
• Standard: 12,13,4,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
• Type: Type 4 Mild Steel Freestanding Enclosure
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Product UPC: 78351020190
• Length: 64-1/4 in
• Application: Arc Flash Safety; Controls and Drives; Power Distribution
• ARRA Compliant: C
• Assemble to Order: No
• Buy American Compliant: C
• Catalog Number: A60HS3712LP
• Data Pocket Size [Metric]: 305 x 305 mm
• EU RoHS Indicator: RCP
• Harmonization Tariff Schedule Code: 8538100000
• Height [Metric]: 30.4800 cm
• Interchangeable: No
• Item Group: A19
• Length [Metric]: 163.1950 cm
• Modification Services: Yes
• Package Quantity: 1
• Panel Size: 57.00 x 33.00 in
• Panel Size [Metric]: 1448 x 838 mm
• Panel Type: A60P36
• Standards: UL 508A Listed, Type 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, File No. E61997, NEMA/EEMAC Type 3, 4, 12, 13, CSA File No. 42186: Type 4, 12, IEC 60529, IP66, RoHS Complaint
• Thickness [Metric]: 1.9 mm
• UNSPSC: 39121324
• UPC 11: 78351020190
• UPC 12: 783510201906
• Width [Metric]: 93.9800 cm
• Stock Status: NONSTOCK
• Manufacturer: HOFFMAN ENCLOSURES
• NEMA Rating: 4 Watertight
