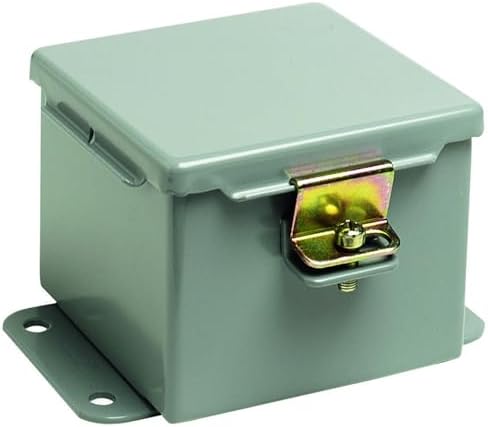

Hoffman A606CHFTC ftc box 6.00x6.00x4.75

Product Description

The HOFFMAN A606CHFTC is a professional range of junction box hinge covers. These covers are used in automotive and other applications that require an outward formed external flange trough collar. The body is constructed from 16 gage steel and features a continuous hinge and an oil-resistant gasket. The base has an ANSI 61 gray polyester powder paint finish.

• Type 12 Continuous Hinge with Flange Trough Collar
• IP/NEMA Rating: IP65, 12
• Use in Automotive and other Applications that Require an Outward Formed External Flange Trough Collar to Keep Out Liquids and Contaminants

Product Highlights

The HOFFMAN A606CHFTC junction box is made of steel with a gray polyester powder-coated finish. It features a continuous hinged cover and is suitable for various industrial applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A606CHFTC

Technical Specifications

• UNSPSC Code: 31260000
• Brand: nVent HOFFMAN
• Color: Gray
• Manufacturer Part Number: A606CHFTC
• Type: Junction Box
• UPC Code: 00783510743802
• Style: Compact
• Material: 16 ga Steel
• IP/NEMA Rating: IP65, 12
• Finish Type: Steel
• Installation Type: Wall-Mounted
• Specification Met: Nema
• Sub Brand: Hoffman
• Item Name: Junction Box with Continuous Hinged Cover
• NEMA Rating: NEMA/EEMAC Type 12, 13, IP65
• Mounting Type: Wall
• Finish: Polyester Powder Coated
• Standards: UL 50, 50E Listed, Type 12, 13 UL File Number E27567, cUL Listed, CSA C22.2 No. 94 Type 12, 13 UL File Number E27567, UL 508A Type 12, 13 UL File Number E61997, cUL Listed, CSA C22.2 No. 94 Type 12, 13 UL File Number E61997, CSA File Number 42184, IEC 60529
• Application: Use in Automotive and other Applications that Require an Outward Formed External Flange Trough Collar to Keep Out Liquids and Contaminants
• UPC: 783510743802
