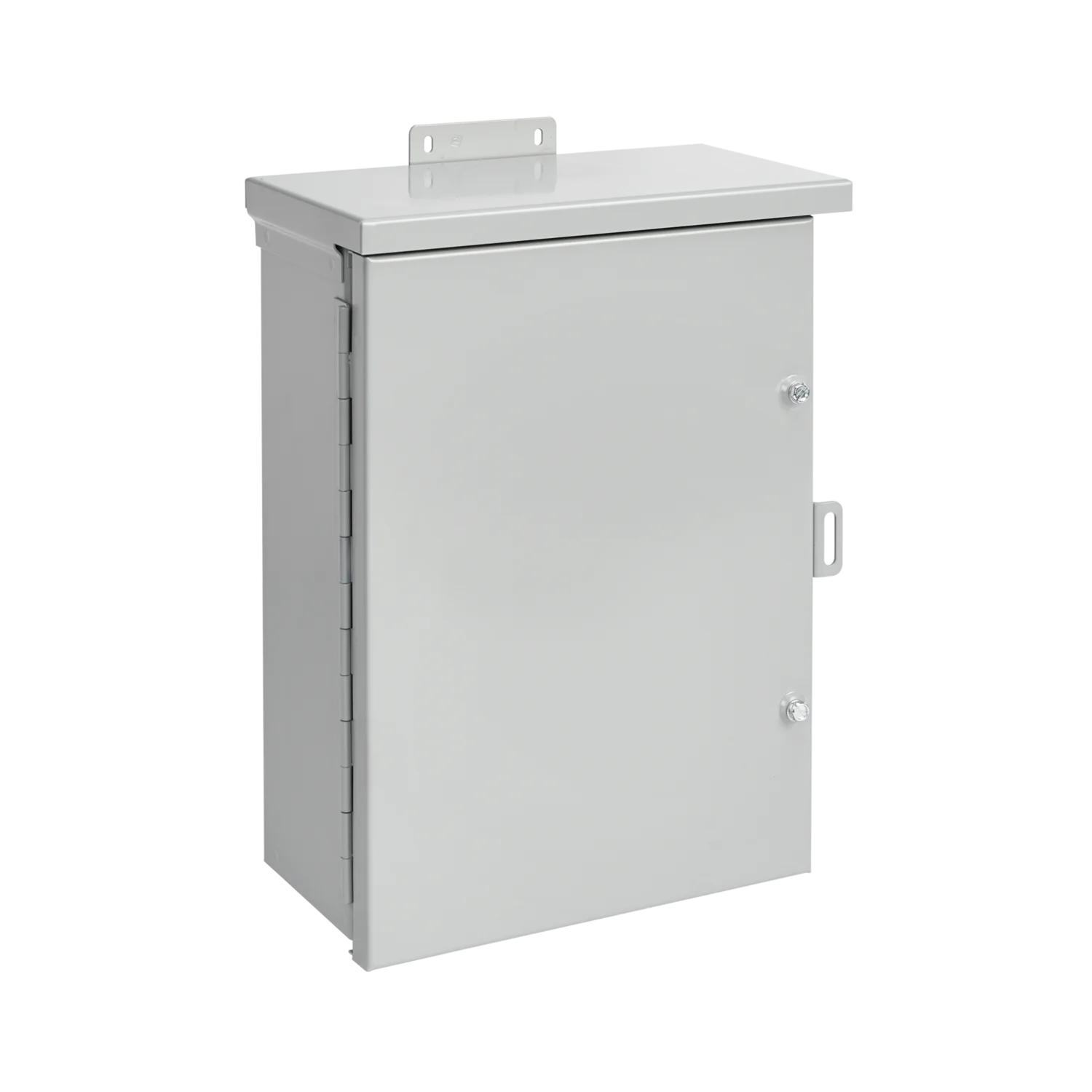

Hoffman A48R3612HCR Medium Drip-Shield Hinged-Cover 48.00x36.00x12.00

Product Description

The Hoffman A48R3612HCR medium drip-shield hinged-cover, Type 3R, protects wiring and electrical components in outdoor applications from rain, sleet, snow, or dripping water. Enclosures can be secured with an optional padlock and collar studs for optional panel mounting. These enclosures range in size from 16 x 12 x 6-in. to 60 x 36 x 12-in.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• 16-gauge plated steel continuous hinge has stainless steel pin
• Cover fastened securely with captive plated steel screws

Product Highlights

Type 3R enclosure protects from rain, sleet, snow, or dripping water. Enclosures can be secured with an optional padlock and collar studs for optional panel mounting.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A48R3612HCR
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 42750
• Height: 48in
• Width: 36in
• Depth: 12in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color Code: ANSI 61
• Body Thickness: 14ga
• Door Thickness: 14ga
• Mounting: 49.00 x 27.00in
• Overall Length: 50in
• UPC: 783510427504
• Bulletin Number: A3M
• Enclosure Rating: NEMA 3R
• Mount: Hinged
• ECCN: EAR99
• NEMA Rating: 3R
• Cover Mounting: Hinged Cover
• UNSPSC: 39121324
• UNSPSC Code: 31260000
• Approximate Depth: 12 in
• Approximate Height: 48 in
• Approximate Width: 36 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A48R3612HCR
• Type: Junction Box
