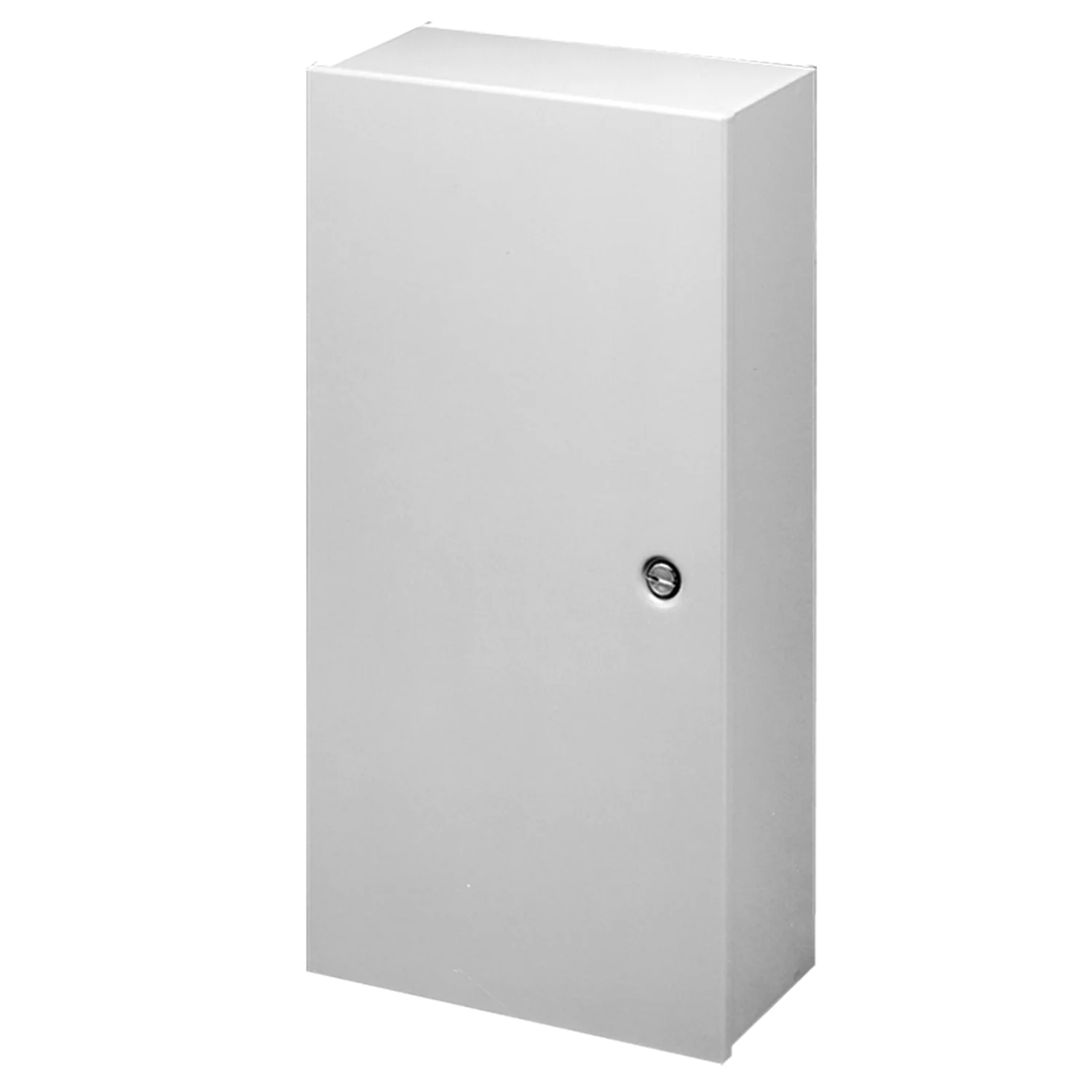

Hoffman A48N3613 Large Hinged-Cover Type 1 48.00x36.00x13.25

Product Description

The HOFFMAN A48N3613 large hinged-cover, Type 1 enclosure, ranging in size from 42 x 30 to 48 x 36 inches, features mounting provisions for an optional panel. It meets basic functionality requirements for indoor applications that do not require oil or dust-tight enclosures. Ideal for building automation systems, BAS, and HVAC applications.

• Continuous hinge on door
• Slotted flush latch; optional latches available
• Collar studs provided for mounting optional panels

Product Highlights

The HOFFMAN A48N3613 is suitable for environments that do not require oil-tight and dust-tight electrical boxes.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A48N3613
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 34760
• Height: 48 in
• Width: 36 in
• Depth: 13.25 in
• Material: Steel
• Finish: ANSI 61 Gray
• Color Code: ANSI 61
• Thickness: 14 Gauge
• UPC: 783510347604
• Bulletin Number: A1L
• Type: Large, Type 1
• Mount: Hinged
• UNSPSC: 39121324
• Standard: UL 50, 50E Listed, Type 1, File No. E27567, cUL Listed per CSA C22.2 No 40, Type 1, File No. E27567, NEMA/EEMAC Type 1, CSA, File 42184: Type 1, IEC 60529, IP30
• Color: Gray
• Color Family: Gray
• NEMA: 1
• Material Thickness: 14 Gauge
• Cover Mounting: Hinge, Continuous
• Cover Latching: Latch, Slotted Flush
• Cover Type: Solid
• Mounting: Internal Holes
• Optional Panel: A48P36
• Country of Origin: Mexico - Subject to change
