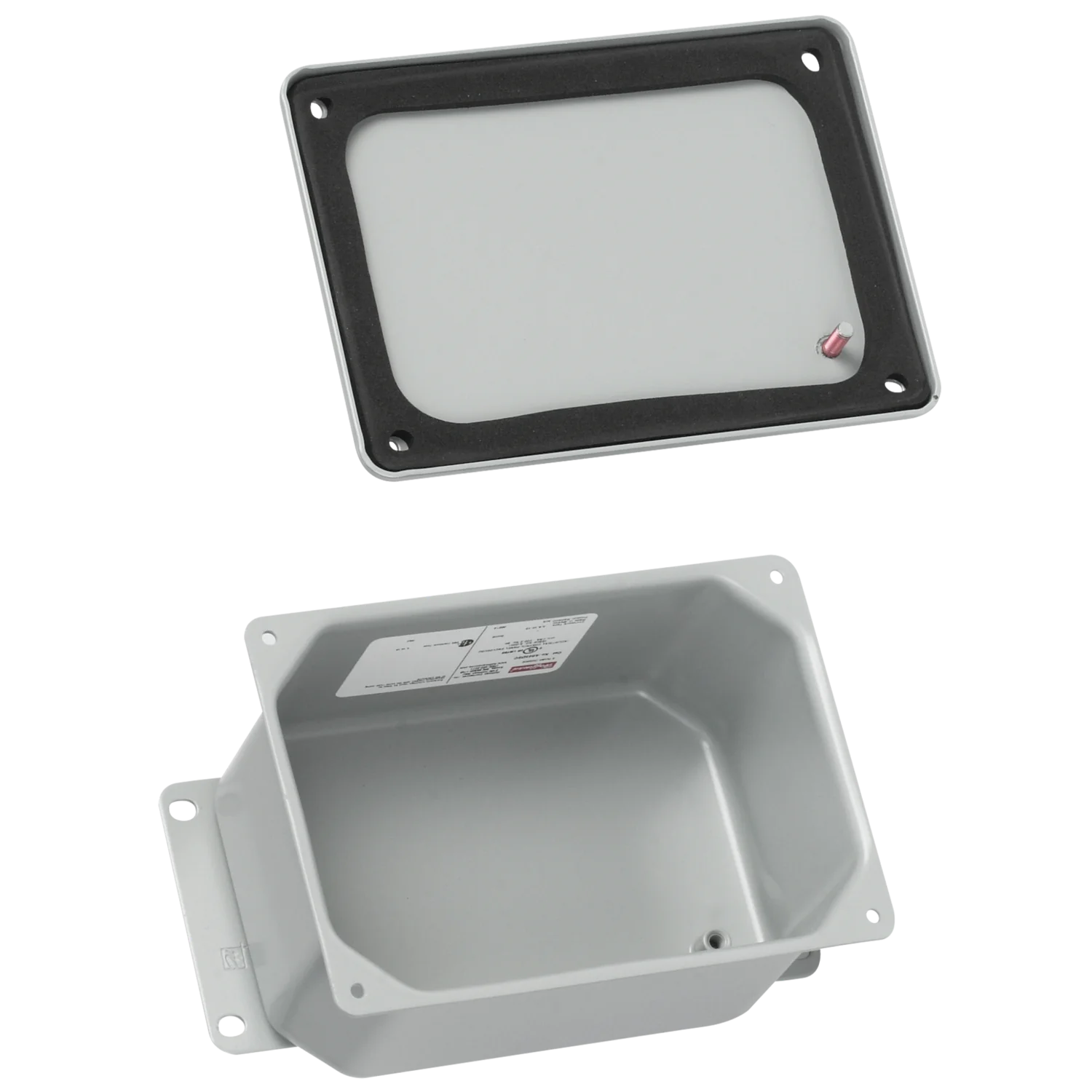

Hoffman A445DSC Flat and Dome Screw Cover Contoured Type 4, 3.50x4.00x3.75

Product Description

The HOFFMAN A445DSC is an economical solution for electrical and terminal wiring applications that don't require a back panel. This enclosure features aesthetic, rounded corners and is available in flat and dome cover models for mounting flexibility. It has an ANSI 61 gray polyester powder paint finish.

• Drawn enclosure
• No welded seams or sharp corners
• Cover screws
• Formed flanged cover
• Oil-resistant gasket
• External welded-on mounting brackets for easy installation
• Bonding provision on cover
• Grounding stud on body

Product Highlights

The A445DSC junction box is contoured with a dome screw cover and NEMA 4/IP66 rating. Ideal for electrical and terminal wiring applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A445DSC
• Country of Origin: Mexico

Technical Specifications

• Article Number: 57360
• Height (H): 3.5in
• Width (W): 4in
• Depth (D): 4.75in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness (T): 16ga
• Cover Style: Dome
• Interior Volume: 44.7in³
• Mounting (G): 4in
• Weight: 1.8lb
• UPC: 783510573607
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Approximate Depth: 4 in
• Approximate Height: 4 in
• Approximate Width: 4 in
• Brand: Hoffman
• Dimensions: 5.25 in H X 4.50 in W X 5.00 in L
• Manufacturer Part Number: A445DSC
• Type: Junction Box
• UPC Code: 00783510573607
• GTIN: 00783510573607
• UNSPSC: 39121303
• Country of Origin: Mexico
• Capacity: 44.7 cu-in
• Cover Type: Dome Screw
• Depth: 3-3/4 in
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Series: A51DR
• Volume: 1728 cubic inches
• BABA Compliant: No
• Sold as: CASE
• Height: 3-1/2 in
