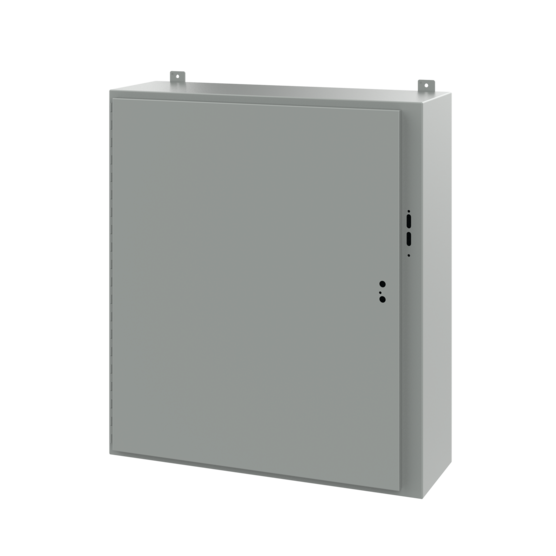

Hoffman A42SA3812LP Disconnect Enclosure 42 x 37.38 x 12 Inch

Product Description

The Hoffman A42SA3812LP is a disconnect enclosure designed to accept major brand disconnect switches and circuit breakers. Constructed of 14 gauge steel with continuously welded and ground smooth seams. Features a bonding provision on the door and external welded-on mounting brackets. Includes latch pivot post(s), adjustable door interlock bracket, and cover latch bar.

• Constructed of 14 gauge steel
• Seams continuously welded and ground smooth
• External welded-on mounting brackets for easy installation

Product Highlights

This Hoffman disconnect enclosure features a removable door with a continuous hinge and an oil-resistant gasket.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A42SA3812LP
• Country of Origin: USA

Technical Specifications

• IP Rating: 65
• Material: Mild Steel
• Type: 1-Door, Circuit Breaker/Disconnect Switch
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Finish: Powder Coated
• Depth: 12 Inch
• Height: 42 Inch
• Length: 46 Inch
• Thickness: 1.9 mm
• Width: 37.38 in
• UNSPSC: 39121318
• Approval: UL 508A, CUL, CSA C22.2
• Mounting: Wall, External Welded-On Bracket
• Enclosure: NEMA 12/13, IP65
• Material Specification: 14 Gauge
• Cover Type: Continuous Hinged, Oil Resistant Gasketed
• Color: White Inside/ANSI 61 Gray Outside (Body), ANSI 61 Gray (Door)
• Back Panel: A42P36, A42P36G
• IP/NEMA Rating: IP65, NEMA 12
• Enclosure Material: Mild Steel
• Exterior Color: Gray
• Interior Color: White
• With Or Without Handle: Without
• Conductive Panel: A42P36G
• Exterior Color Code: ANSI 61
• Panel: A42P36
• Panel Size: 39" x 33"
• Data Pocket Size: 12.00 x 12.00 in / 305 x 305 mm
• Protection Rating: NEMA Type 12; NEMA Type 13
