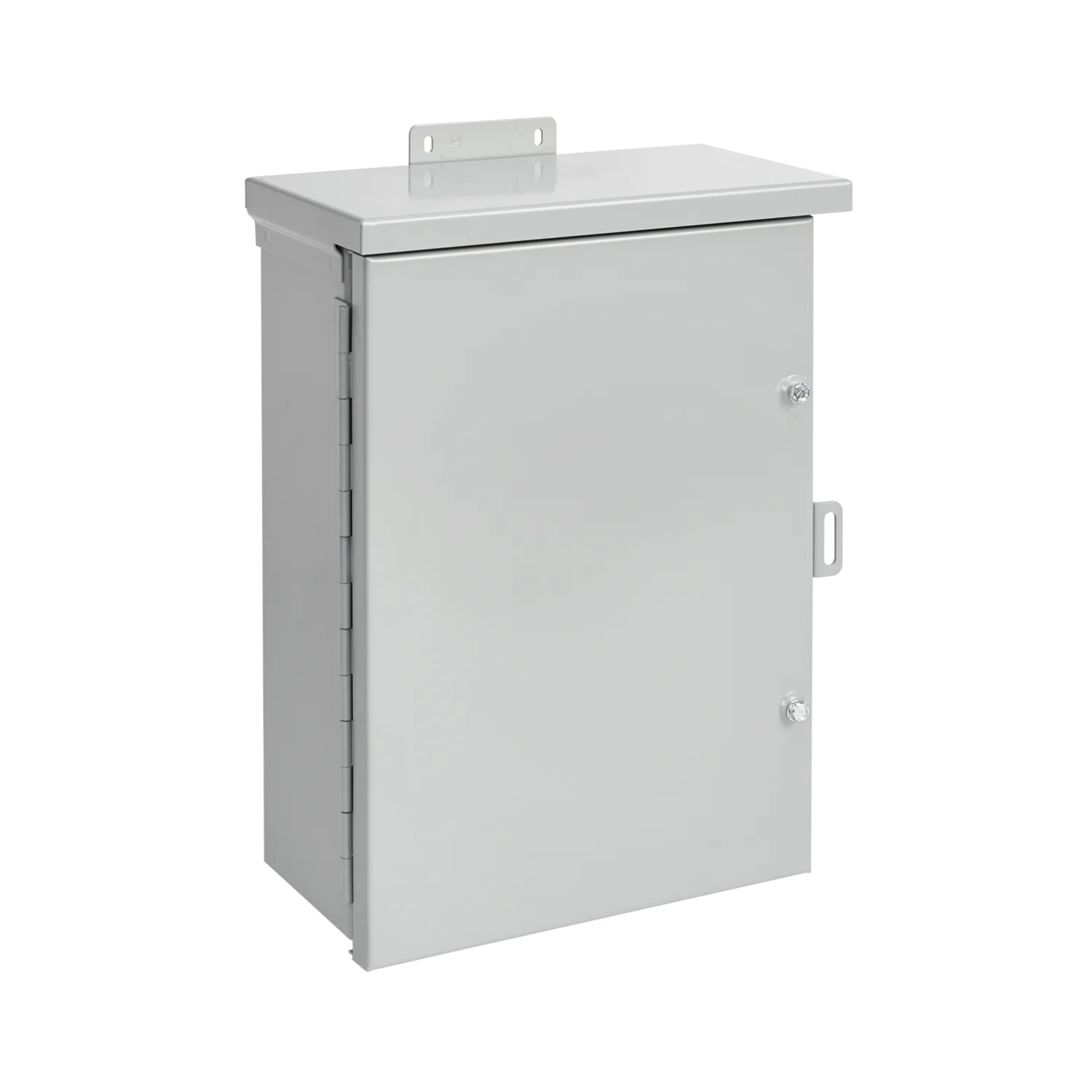

Hoffman A42R3012HCR Medium Drip-Shield Hinged-Cover Type 3R, 42.00x30.00x12.00

Product Description

The HOFFMAN A42R3012HCR is a medium drip-shield hinged-cover, Type 3R enclosure designed to protect wiring and electrical components in outdoor environments from rain, sleet, snow, or dripping water. These enclosures offer flexibility with an optional padlock and collar studs for optional panel mounting. Enclosures range in size from 16 x 12 x 6-in. to 60 x 36 x 12-in.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• 16-gauge plated steel continuous hinge has stainless steel pin
• Cover fastened securely with captive plated steel screws

Product Highlights

Protects components from rain, sleet, and snow. Offers options for padlocking and panel mounting. Ideal for outdoor applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A42R3012HCR

Technical Specifications

• Article Number: 42720
• Height: 42in
• Width: 30in
• Depth: 12in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color Code: ANSI 61
• Body Thickness: 14ga
• Door Thickness: 14ga
• Mounting: 43.00 x 27.00in
• Overall Length: 44in
• UPC: 783510427207
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A3M
• Type: Enclosure Only
• Mount: Hinged
• Special Program: Hoffman On Demand
• IP/NEMA Rating: NEMA 3R, NEMA 3
• Description: Medium Hinge-Cover
• Manufacturers Part Number: A42R3012HCR
• Panel: A42P30
• Brand: Hoffman
• Length: 44 in
• Mounting G x H: 43.00 x 27.00 in
• Panel Size (D x E): 39.00 x 27.00 in
• A x B x C: 42 x 30 x 12 in
