Hoffman A42HS3112LP Disconnect Enclosure with Clamps 42.00x31x12.00

Product Description

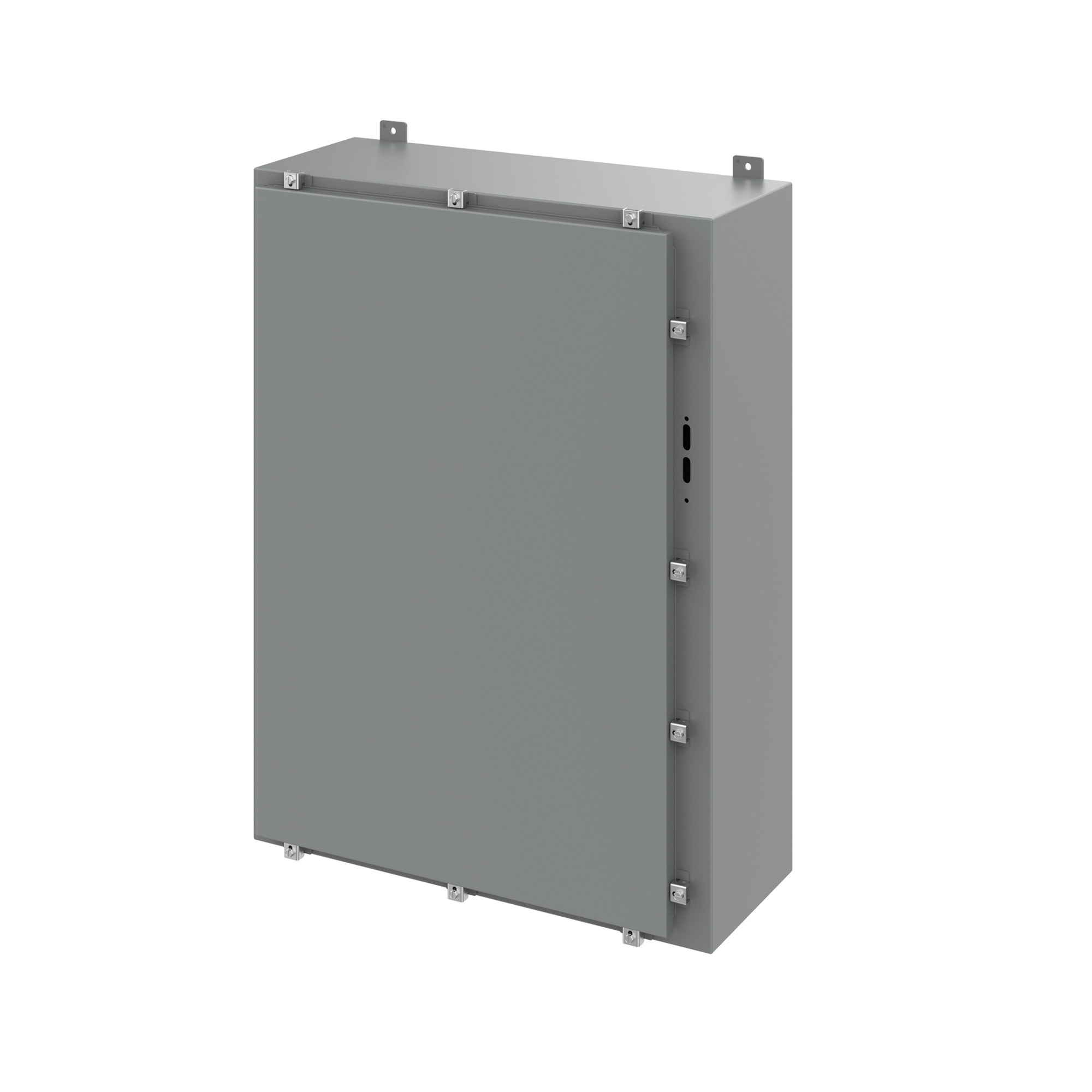

The HOFFMAN A42HS3112LP disconnect enclosure is designed for applications where a clamp-secured door is preferred. Clamps on three sides keep liquids and contaminants out, with a cutout that accepts major brand disconnect switches and circuit breakers. It comes with an adjustable door interlock bracket and instructions for installation.

• Seams continuously welded and ground smooth
• External mounting brackets
• Stainless steel door clamps on three sides of door

Product Highlights

This steel enclosure features continuously welded seams, external mounting brackets and stainless steel door clamps for secure disconnect applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A42HS3112LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 20160
• Height: 42 in
• Width: 31.38 in
• Depth: 12 in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14 ga
• Clamp Quantity: 10
• Data Pocket Size: 6.00 x 6.00 in
• UPC: 783510201609
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A19
• Panel Size: 39.00 x 27.00 in
• Type: 4
• Conductive Panel: A42P30G
• Description: Disconnect Enclosure with Clamps
• Manufacturers Part Number: A42HS3112LP
• Panel: A42P30
• Brand: nVent HOFFMAN
• Applications: Arc Flash Safety; Controls and Drives; Power Distribution
• Gauge: 14
• IP Rating: 66
• Size: 42.00x31.38x12.00 in
• Standard: 12,13,4,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
• Cover Type: Clamp
• Used With: Disconnect Switches
• NEMA Rating: 4 Watertight
• Material Flammability Rating: UL 508A
