Hoffman A422408LP Enclosure 42.00x24.00x8.00 in

Product Description

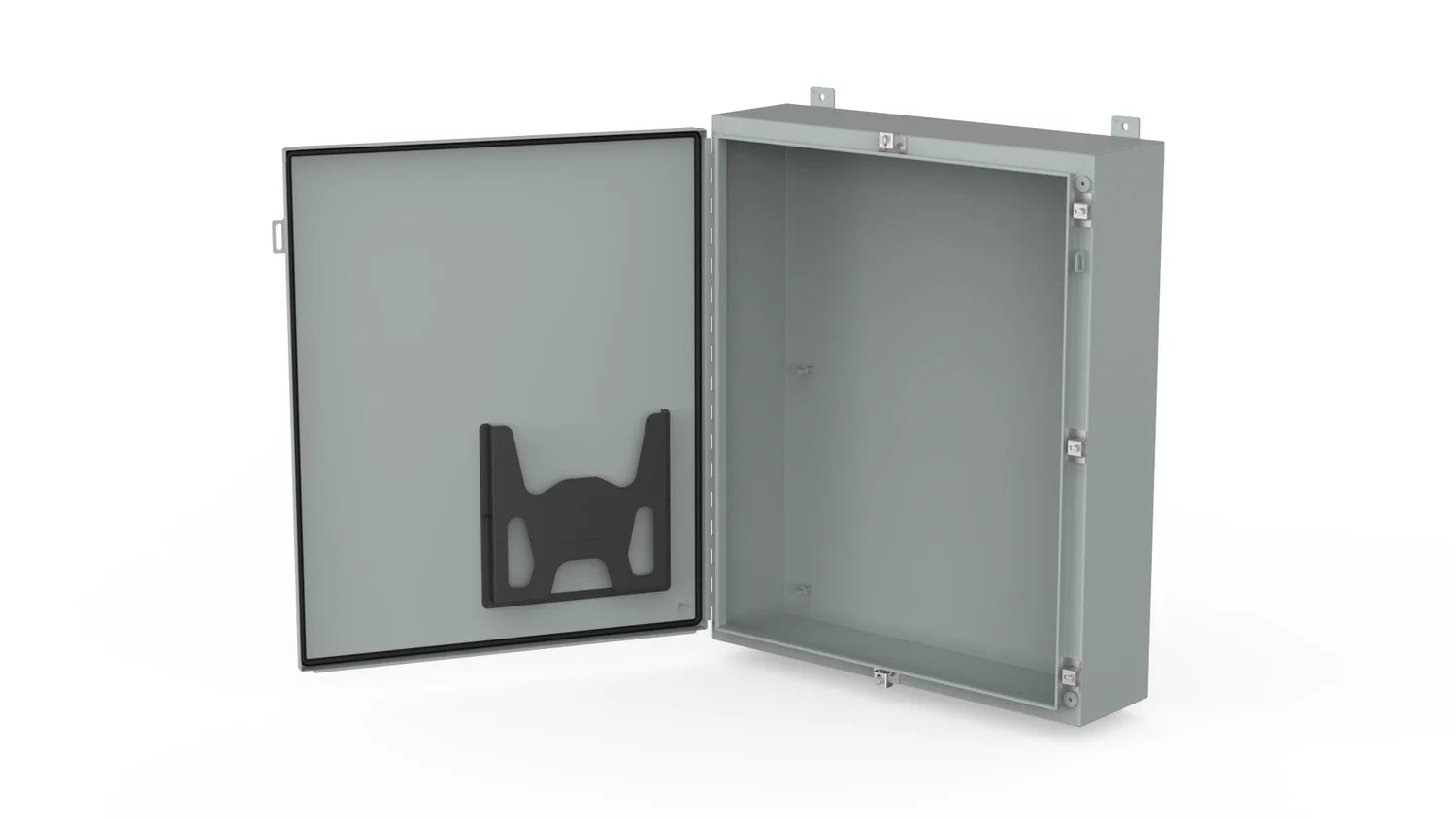

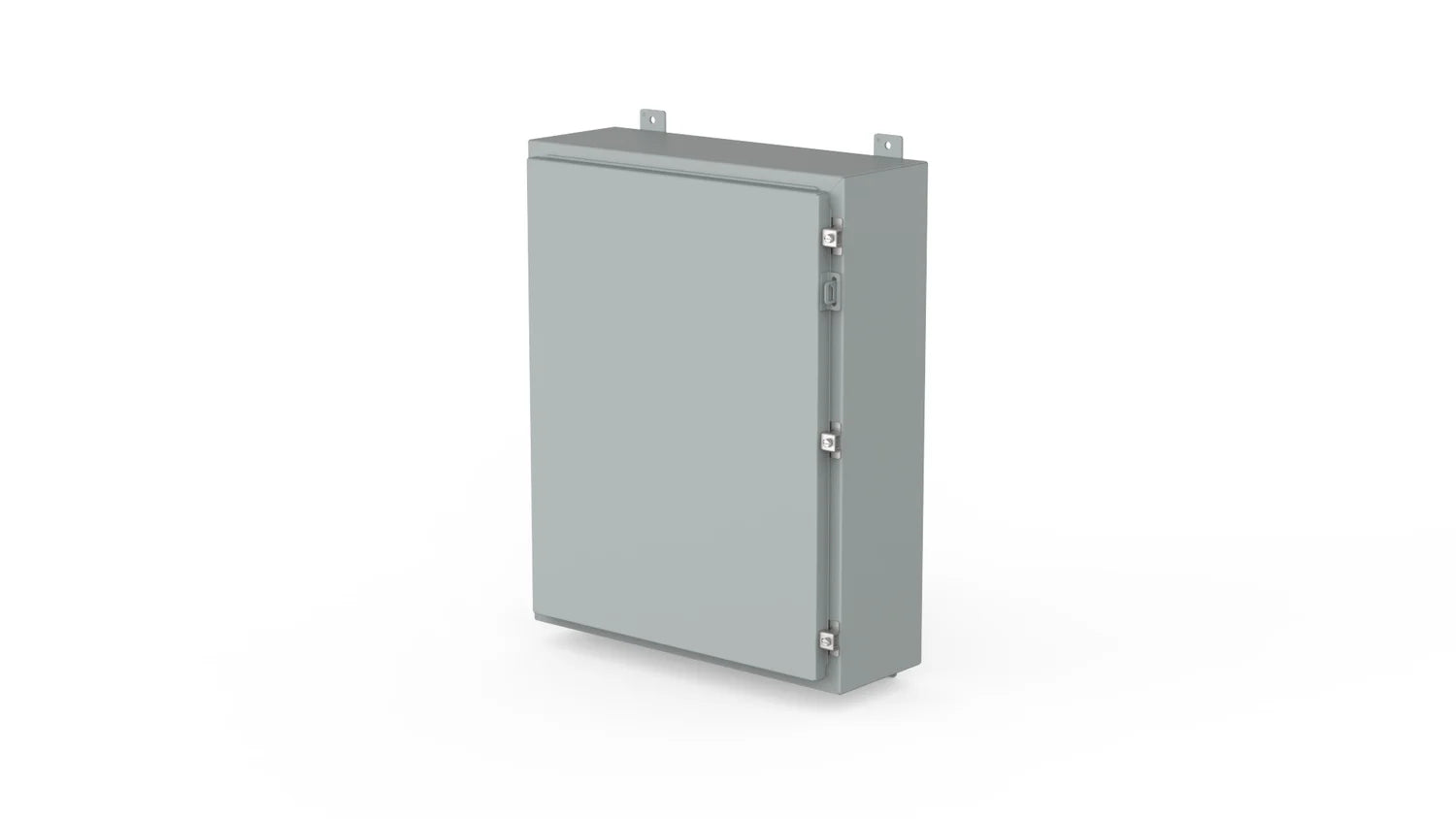

The HOFFMAN A422408LP is a continuous hinge enclosure with clamps, designed as a Type 12 enclosure. Measuring 42.00x24.00x8.00 inches, it is constructed from mild steel with a gray, powder-coated finish. This enclosure provides protection for electrical and pneumatic controls, instruments, and components from dust, dirt, oil, and water.

• Constructed from mild steel with a powder-coated finish for enhanced corrosion protection.
• Features continuously welded and ground smooth seams for a seamless design.
• Offers NEMA Type 12 and IP65 protection ratings.

Product Highlights

The HOFFMAN A422408LP enclosure is ideal for housing controls and drives, offering robust protection in both indoor and outdoor environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A422408LP
• Country of Origin: US - United States

Technical Specifications

• IGCC: 4476
• Size: 42.00x24.00x8.00 in
• Type: Mild Steel Wall Mounted Industrial Enclosures
• Depth: 8 in
• Panel: A42P24
• Width: 24 in
• Finish: Powder Coated
• Height: 42 in
• Material: Mild Steel
• IP Rating: IP65
• Application: Controls and Drives
• Data Pocket: Large
• NEMA Rating: 12 Indoor; dust-resistant
• Type Number: Type 13
• Family group: WIREWAY/ENCLOSURES
• Manufacturer: HOFFMAN ENCLOSURES
• Clamp Quantity: 2
• Exterior Color: Gray
• Interior Color: White
• Conductive Panel: A42P24G
• Protection Rating: NEMA Type 12
• Thickness (Metric): 1.9 mm
• Exterior Color Code: ANSI 61
• Panel Size (Metric): 991 x 533 mm
• Thickness (Imperial): 14 ga
• Modification Services: Yes
• Panel Size (Imperial): 39.00 x 21.00 in
• Article Number: 28280
• UPC: 783510282806
• Bulletin Number: A12
• Enclosure Rating: NEMA 4X
• Mount: Wall
• ECCN: EAR99
• Standard: UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File No. 42186: Type 12 , IEC 60529, IP65
• Brand: nVent HOFFMAN
• Catalog Number: A422408LP
• Country of Origin: MX
• Model: A422408LP
• MPN: A422408LP
• Condition: New
• Enclosure Width: 24 in
• Enclosure Height: 42 in
• Enclosure Depth: 8 in
