Hoffman A404CHNF Continuous Hinge Enclosure with Clamps 4 x 4 x 3

Product Description

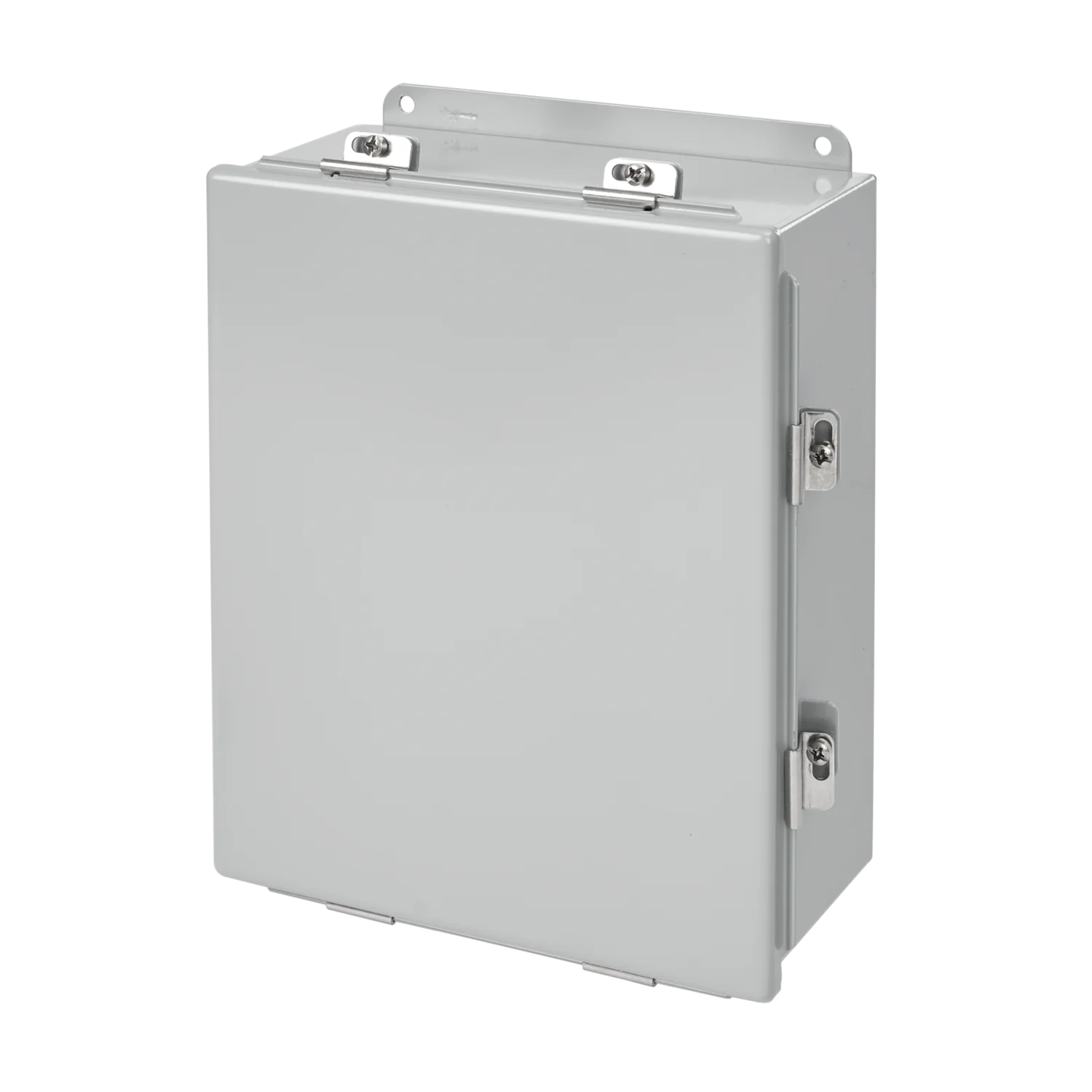

The HOFFMAN A404CHNF continuous hinge enclosure with stainless steel clamps provides environmental protection and security for indoor or outdoor applications. Seams are continuously welded and ground smooth. It is typically used as a junction box, terminal wiring box, and instrument housing.

• Stainless steel screw-down clamps on three sides of door
• Continuous hinge with stainless steel hinge pin
• External wall-mounting brackets for easy installation

Product Highlights

This enclosure features a continuous hinge, oil-resistant gasket, and a gray polyester powder paint finish.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A404CHNF

Technical Specifications

• Article Number: 55690
• Height: 4 in
• Width: 4 in
• Depth: 3 in
• Material: Mild Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 16ga
• Mounting: Surface
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A404CHNF
• Ratings: IP66, NEMA 4,12,13, UL-508A
• Base Product Number: A404
• Design: Hinged Door, Lid
• IP/NEMA Rating: IP66, NEMA 4
• Special Program: Hoffman On Demand
