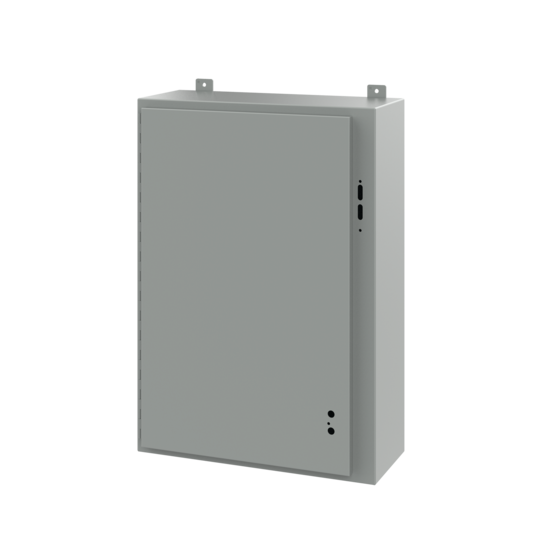

Hoffman A36SA2610LP Preferred Cutout, Disconnect Enclosure, Type 12, 36 inches x 25.38 inches x 10 inches, Steel

Product Description

The Hoffman A36SA2610LP is a general purpose disconnect enclosure that accepts major brand disconnect switches and circuit breakers. It measures 36.00x25.38x10.00 inches and is constructed of 14 gauge steel with continuously welded and ground smooth seams. The enclosure is designed with holes for mounting operating handles and mechanisms.

• Constructed of 14 gauge steel
• Seams are continuously welded and ground smooth
• Features external welded-on mounting brackets

Product Highlights

The Hoffman A36SA2610LP disconnect enclosure provides a secure housing for disconnect switches and circuit breakers, ensuring reliable performance and safety.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A36SA2610LP
• Country of Origin: United States of America (the)

Technical Specifications

• IP Rating: IP65
• Material: Mild Steel
• Size: 36.00x25.38x10.00 in
• Standard: CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
• Type: Preferred Cutout
• Brand: nVent HOFFMAN
• Sub Brand: Hoffman
• 12-Digit UPC: 783510329600
• Finish: Powder Coated
• UNSPSC Code: 31260000
• Approximate Depth: 10 in
• Approximate Height: 36 in
• Approximate Width: 25 in
• Manufacturer Part Number: A36SA2610LP
• Unit of Measure: EA
• UPC Code: 00783510329600
• GTIN: 00783510329600
• UNSPSC: 39121324
• Country of Origin: United States of America (the)
• Color: Gray
• Cover Type: Continuous Hinged/Removable
• Depth: 10 in
• Length: 36 in
• Mounting Type: Wall
• NEMA Rating: NEMA 12/13
• Panel Size: 21 in W x 33 in H
• Series: A25
• Width: 25.38 in
• BABA Compliant: Yes
• Sold as: EACH
• UNSPSC-IGCC: 39121324-4476
• Tariff Number: 7326908688
• Bulletin Code: A25
• Protection Rating: NEMA Type 12
• With or Without Handle: Without
• Modification Services: Yes
• Type Number: Type 13
• Thickness (T): 1.9 mm
