Hoffman A36R3012 Screw-Cover Drip-Shield Type 3R With Knockouts, 36x30x12

Product Description

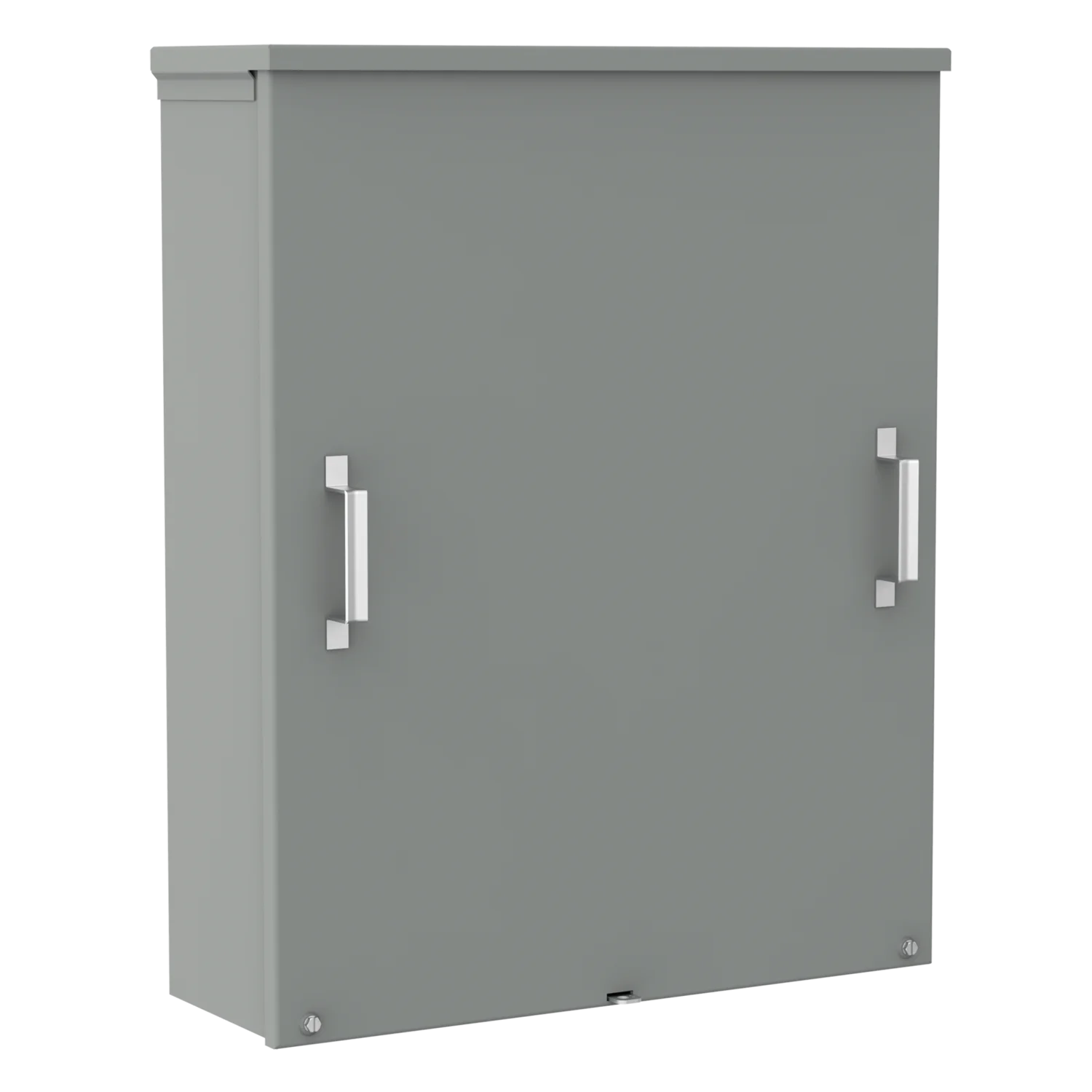

The HOFFMAN A36R3012 Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water. Measures 36x30x12 inches with a steel material and gray color.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

The HOFFMAN A36R3012 enclosure is ideal for outdoor applications requiring protection from the elements. It features a drip shield top, seamless construction, and a screw-on removable cover.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A36R3012
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 42890
• Height: 36 in
• Width: 30 in
• Depth: 12 in
• Material: Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 12ga
• Door Thickness: 12ga
• Knockouts Included: Yes
• Knockout Pattern: A-B-C-D-E-F-G-H-I
• Mounting: 1.5in
• Body Style: C**
• UPC: 783510428907
• Bulletin Number: A90S3
• UNSPSC Code: 31260000
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A36R3012
• Type: Junction Box
• ECCN: EAR99
• NEMA Rating: NEMA 3R/IP32
• Cover Mounting: Screw Cover
• Cable Entry Size: (4) 3/4 to 1 in, (4) 1/2 to 3/4 in, (1) 1 to 1-1/4 in Knockout Bottom
• Lock: Padlock
• Mounting Type: Wall
• Series: A90S3
• BABA Compliant: No
• Approval: UL 50/50E, CUL, CSA C22.2
• Material Specification: 12 Gauge
• Cover Type: Screw, Padlockable, Slip-On
• Knockout Location: (9) Bottom
• Country of Origin: Mexico
