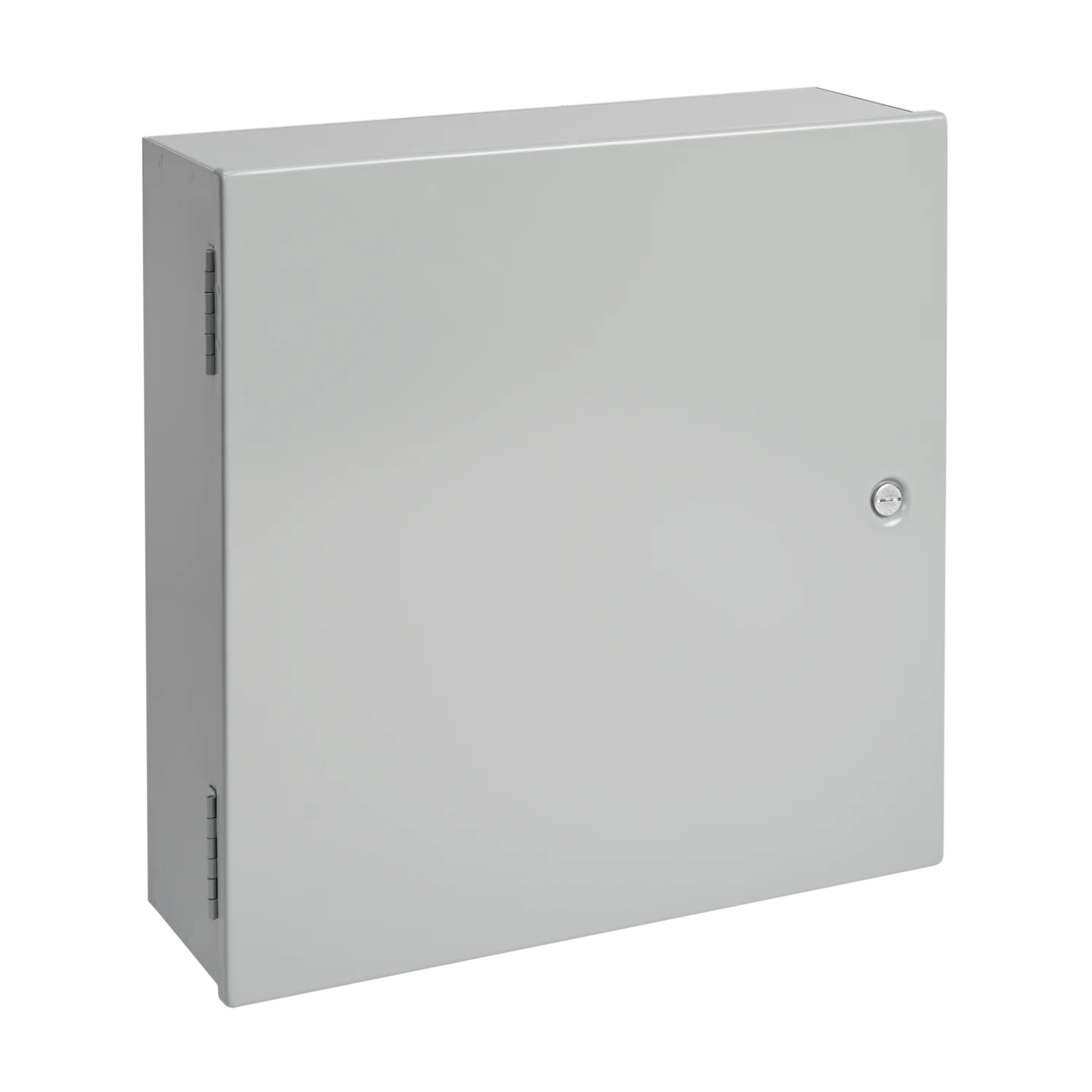

Hoffman A36N30DLP Medium Hinged-Cover Type 1 36.00x30.00x12.62 A36N30MP

Product Description

The HOFFMAN A36N30DLP medium hinged-cover pull box, Type 1, features a size range of 16 x 12 -in. to 36 x 30-in. It provides mounting for an optional panel and meets basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures.

• Butt hinges on door
• Collar studs provided for mounting optional panel
• Slotted flush latches; optional latches available

Product Highlights

This enclosure is suitable for controls and instruments in areas not requiring oil-tight and dust-tight ratings, popular in HVAC applications and building automation systems.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A36N30DLP
• Country of Origin: Mexico

Technical Specifications

• Article Number: 86160
• Height: 36in
• Width: 30in
• Depth: 12.62in
• Material: Steel
• Finish: Polyester Powder Coated Over Phosphatized Surface
• Color: ANSI 61 Gray
• Color Code: ANSI 61
• Thickness: 12ga
• UPC: 783510861605
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Enclosure Rating: NEMA 1
• Mount: Hinged
• Material Specification: 16/14 Gauge
• Type: 1-Door
• UNSPSC: 39121324
• Approval: UL 50/50E, CUL, CSA C22.2
• Applications: Controls and Drives; Power Distribution
• IP Rating: 30
• Mounting Type: Panel, Wall
• Size: 36.00x30.00x12.62 in
• Standard: CSA, File 42184: Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27567,IEC 60529, IP30Flanged On All Four Sides,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27567
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510861605
• GTiN: 00783510861605
• Product UPC: 78351086160
• Country of Origin: Mexico - Subject to change
• NEMA: 1
• Material Thickness: 14 Gauge
• Cover Mounting: Hinge
• Cover Latching: Latch
• Cover Type: Solid
• Height (mm): 36 in. (914mm)
• Width (mm): 30 in. (762mm)
• Depth (mm): 12.62 in. (321mm)
• Mounting: Internal Holes
• Optional Panel: A36N30MP
