Hoffman A36N30ALP Medium Hinged-Cover Type 1 36.00x30.00x6.62

Product Description

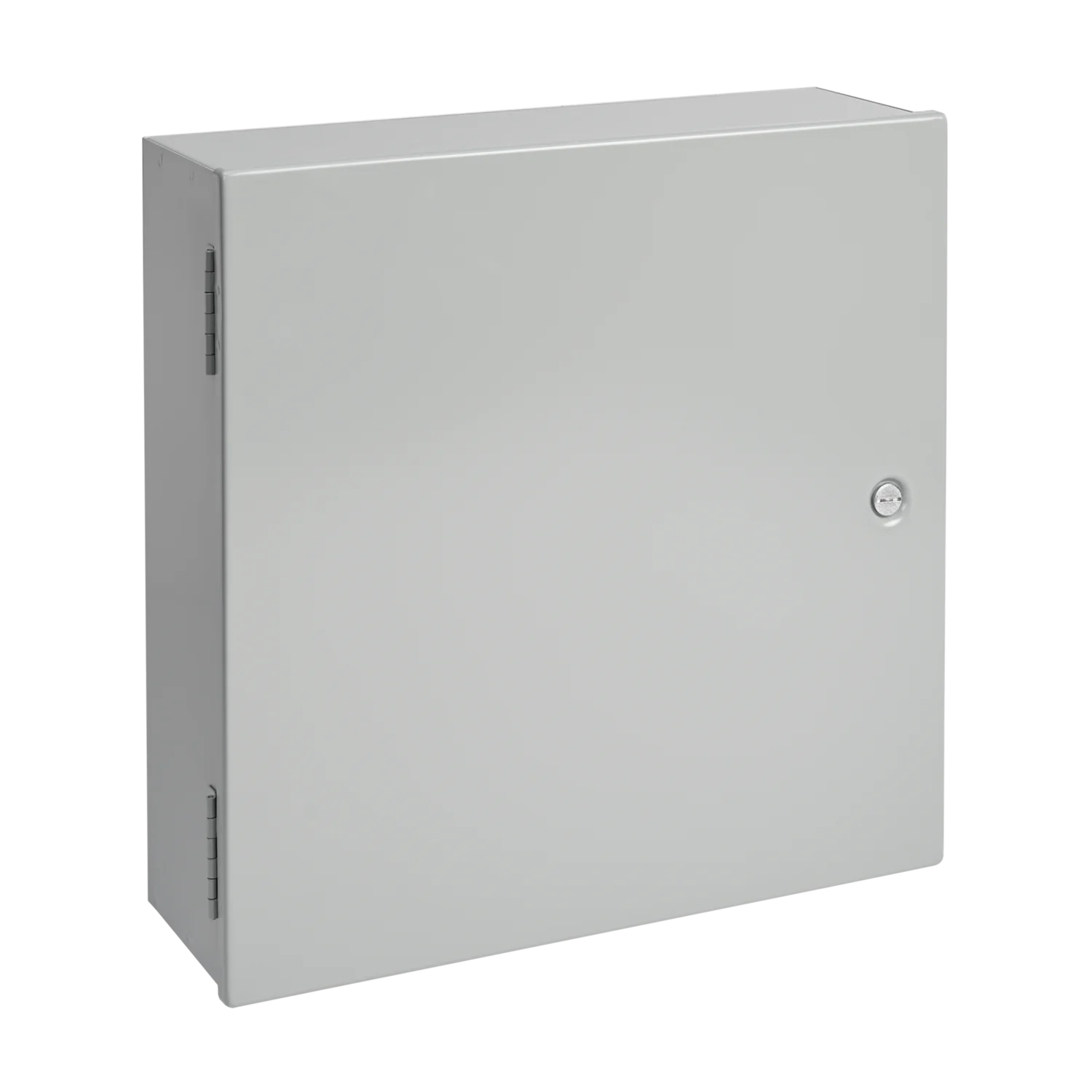

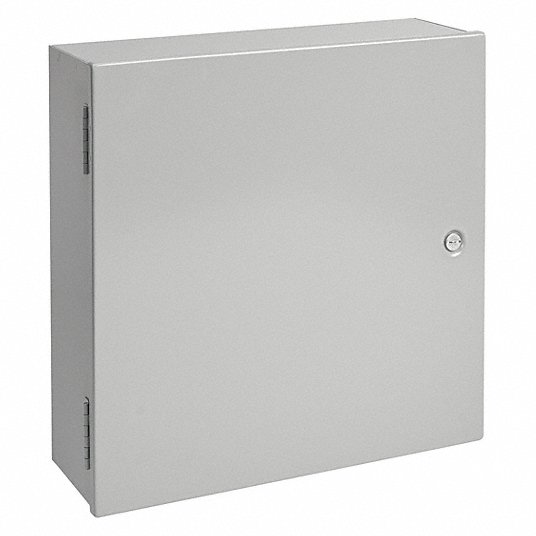

The HOFFMAN A36N30ALP is a medium hinged-cover pull box, Type 1, designed for indoor applications. It features mounting holes on the back of the enclosure and collar studs for optional panel mounting. The enclosure allows easy access to interior contents after installation.

• Butt hinges on door
• Collar studs provided for mounting optional panel
• Slotted flush latches; optional latches available

Product Highlights

This steel enclosure is powder coated with ANSI 61 gray polyester, providing a durable finish for indoor use.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A36N30ALP
• Country of Origin: Mexico

Technical Specifications

• Article Number: 86030
• Height: 36 in
• Width: 30 in
• Depth: 6.62 in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 12ga
• UPC: 783510860301
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A1M
• Type: Enclosure Only
• Mount: Hinged
• NEMA: 1
• Material Thickness: 14 Gauge
• Cover Mounting: Hinge
• Cover Latching: Latch
• Cover Type: Solid
• Mounting: Internal Holes
• Optional Panel: A36N30MP
• Body Material Thickness: 12 ga
• Closure Method: 1/4-Turn Latch
• Compatible Panel Model Number: A36N30MP
• Cover Closure Type: Hinged
• Cover Style: Solid
• Displayed Brand: HOFFMAN
• Enclosure Material: Steel
• Environment: Indoor
• Gasket Material: Neoprene
• IP Rating: IP30
• Knockouts: Not Included
• Mounting Type: Wall
• NEMA Enclosure Rating: 1
• Nominal Depth: 7 in
• Nominal Height: 36 in
• Nominal Width: 30 in
• Overall Depth: 6.62 in
• Overall Height: 36 in
• Overall Width: 30 in
• Panel Height: 32 in
• Panel Width: 28.5 in
• Product Type: Medium Hinged Cover Pull Box
• Standards: CSA, File 42184: Type 1; cUL Listed per CSA C22.2 No 40; File No E27567; IEC 60529; NEMA/EEMAC Type 1; UL 50, 50E Listed
