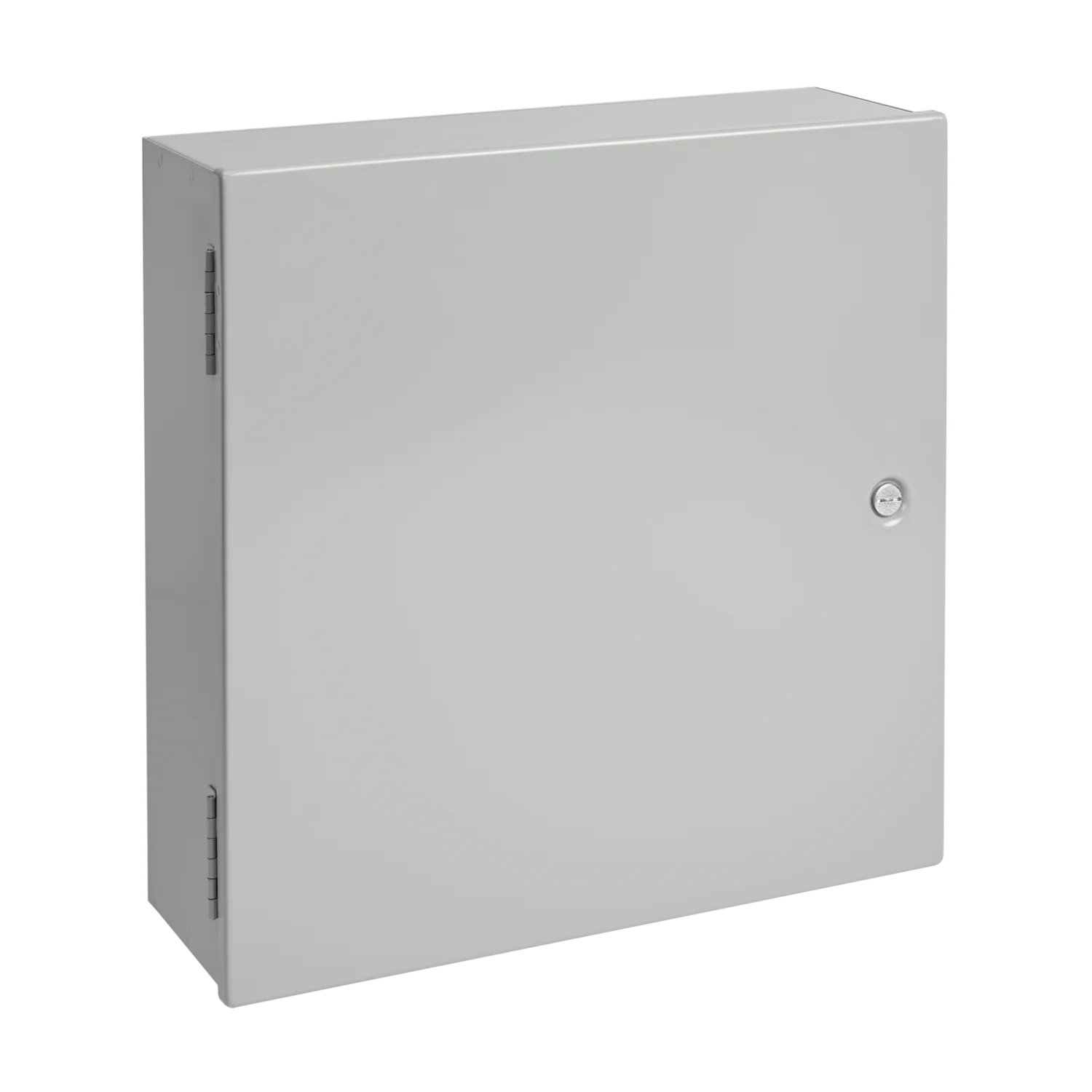

Hoffman A36N24BLP Medium Type 1 Enclosure 36.00x24.00x8.62 A36N24MP

Product Description

The Hoffman A36N24BLP is a medium Type 1 enclosure with dimensions of 36.00x24.00x8.62 inches, constructed of steel. These enclosures meet basic functionality requirements for applications that do not require oil- or dust-tight enclosures. It provides mounting provision for optional panel.

• Constructed with 14 or 12 gauge steel
• Butt hinges on door
• Mounting holes on back of enclosure

Product Highlights

The Hoffman A36N24BLP enclosure is ideal for indoor applications requiring basic protection.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A36N24BLP
• Country of Origin: United States

Technical Specifications

• Type: 1-Door
• Brand: Hoffman
• Color: ANSI 61 Gray
• Panel: A36N24MP
• Material: Steel
• Size: Medium
• Description: Medium Type 1 Enclosure
• Panel Guage: 12
• A x B x C: 36.00 x 24.00 x 8.62 in
• Dimension F: 8 in
• Dimension H: 16.75 in
• Dimension K: 2 in
• Dimension P: 0.44 in
• Dimension Q: 1.25 in
• G Dimension: 33.5 in
• J Dimension: 3.62 in
• Panel Size (D x E): 32.00 x 22.50 in
• Manufacturers Part Number: A36N24BLP
• Article Number: 86110
• Height: 36in
• Width: 24in
• Depth: 8.62in
• Finish: Polyester Powder Coated Over Phosphatized Surface
• Color Code: ANSI 61
• Thickness: 12ga
• Weight: 61lb
• UPC: 783510861100
• Bulletin Number: A1M
• MFG #: A36N24BLP
• EECO #: HOA36N24BLP
• UNSPSC: 39121324
• Approval: UL 50/50E, CUL, CSA C22.2
• Material Specification: 16/14 Gauge
• MPN: A36N24BLP
• Country of Origin: United States
