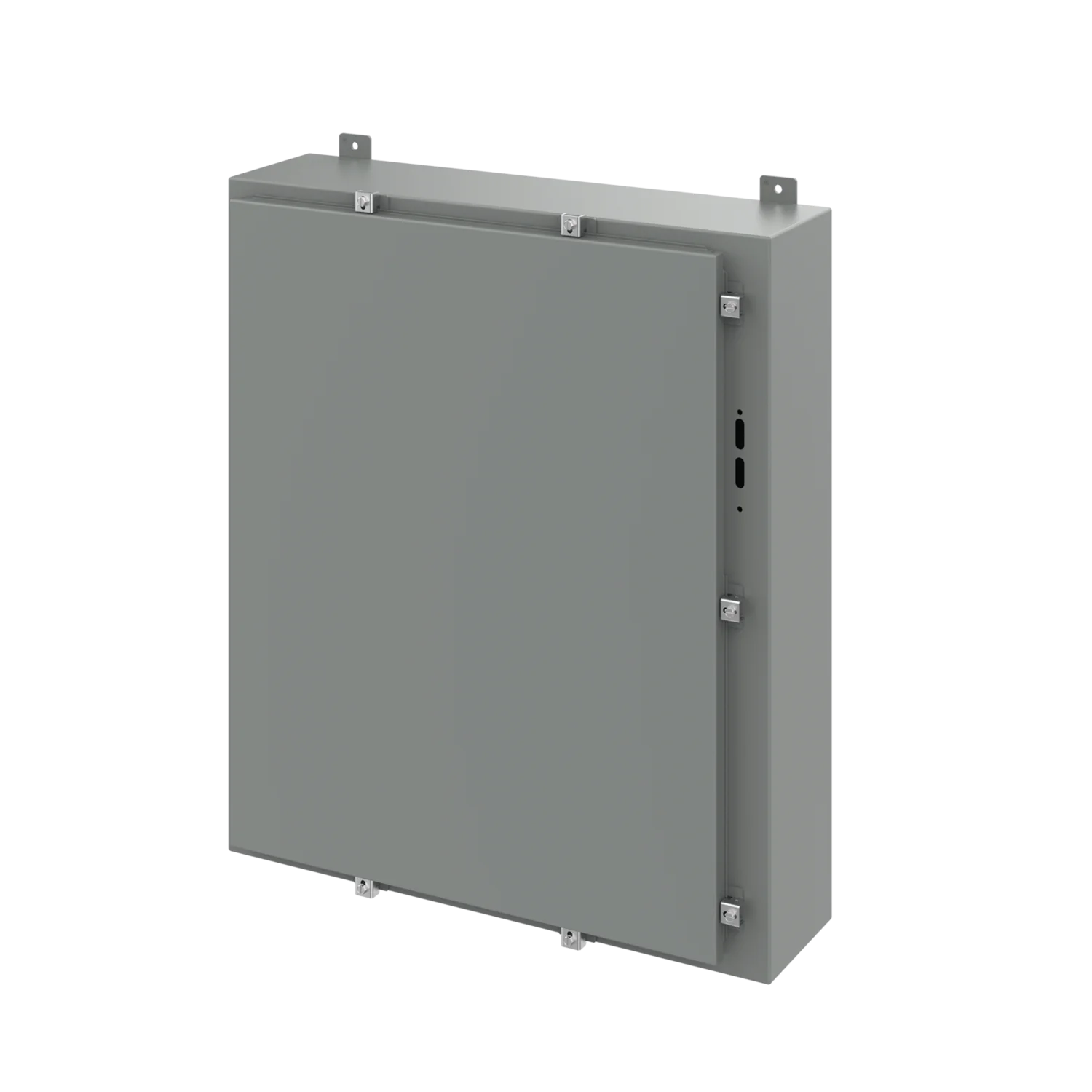

Hoffman A36HS3108LP Disconnect Enclosure with Clamps Type 4, 36.00x31x8.00

Product Description

The HOFFMAN A36HS3108LP disconnect enclosure is designed for applications where a clamp-secured door is preferred. Clamps on three sides keep liquids and contaminants out. It features a cutout that accepts major brand disconnect switches and circuit breakers. Each enclosure includes an adjustable door interlock bracket and instructions.

• Seams continuously welded and ground smooth
• External mounting brackets
• Stainless steel door clamps on three sides of door

Product Highlights

This Hoffman disconnect enclosure is ideal for electrical disconnect applications, providing a secure and contaminant-free environment for switches and breakers.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A36HS3108LP
• Country of Origin: United States

Technical Specifications

• Article Number: 20150
• Height: 36in
• Width: 31.38in
• Depth: 8in
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 14ga
• Clamp Quantity: 7
• Data Pocket Size: 12.00 x 12.00in
• UPC: 783510201500
• Bulletin Number: A19
• Mounting: Wall
• Enclosure: NEMA 3/4/12/13, IP66
• Material Specification: 14 Gauge
• Type: 1-Door, Flange Mount Circuit Breaker/Disconnect Switch
• Cover Type: Continuous Hinged, Hinge Pin, (7) Clamp, Bracket, Gasketed
• Color: ANSI 61 Gray
• Approval: UL 508A, CUL, CSA C22.2
• Optional Panel: A-36P30
