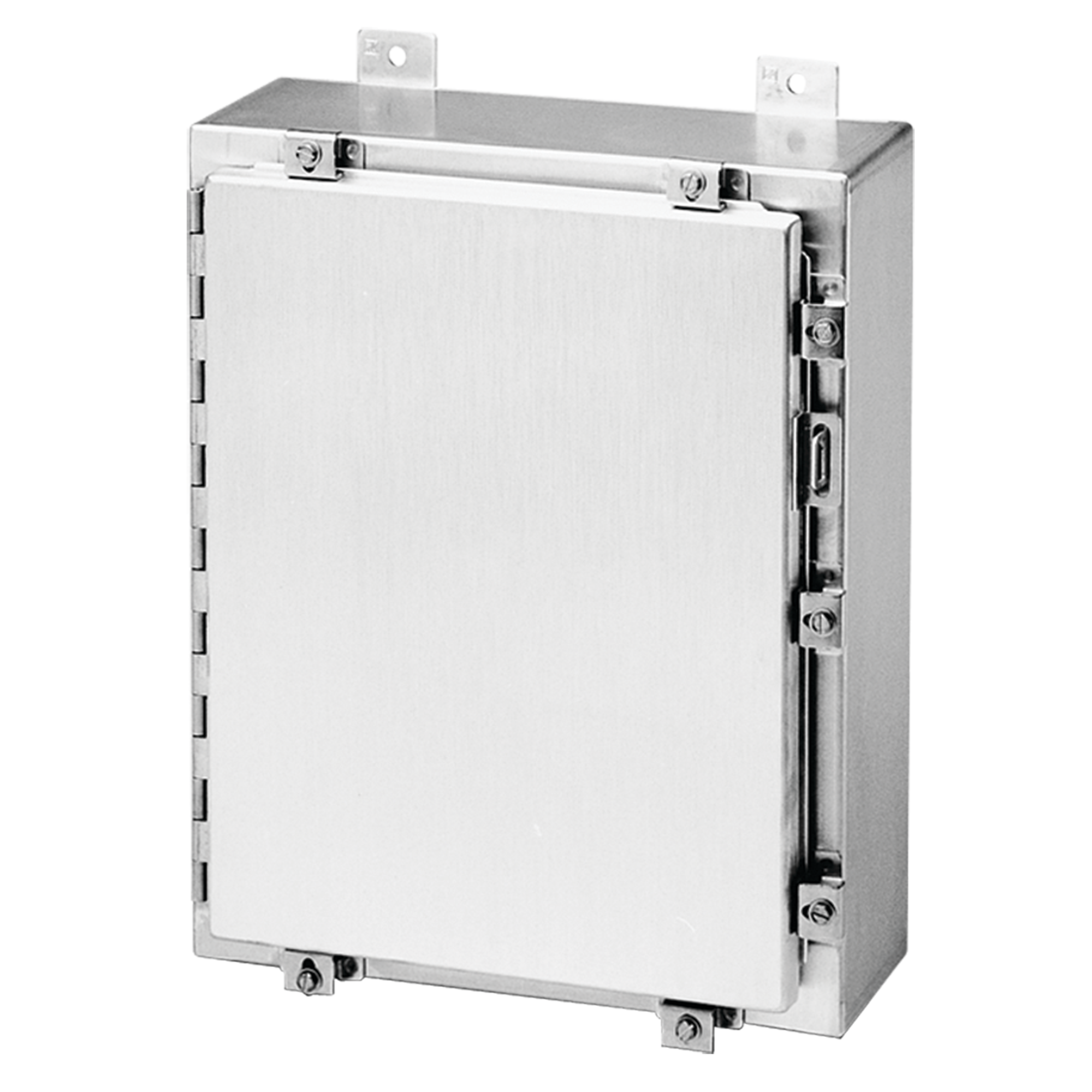

Hoffman A36H3008ALLP Continuous Hinge Enclosure with Clamps LP Type 4X, 36x30x8, Brushed, Aluminum

Product Description

The HOFFMAN A36H3008ALLP Continuous Hinge Aluminum Enclosure with Clamps is a lightweight, Type-4X solution with a hinged cover secured on three sides via stainless steel clamps and screws. Ideal for protecting components in corrosive indoor or outdoor environments like petrochemical plants and marine settings. The enclosure is unpainted with a smooth, brushed finish.

• Lightweight, Type 4x hinged enclosure.
• Seams continuously welded and ground smooth
• Rolled lip around three sides of door and all sides of enclosure opening

Product Highlights

Continuous hinge aluminum enclosure with clamps is a lightweight, Type-4X solution for corrosive environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A36H3008ALLP
• Country of Origin: MX

Technical Specifications

• Article Number: 27330
• Height: 36in
• Width: 30in
• Depth: 8 in. (203.2mm)
• Material: Aluminum
• Finish: Brushed
• Thickness: 0.08in
• Panel Mounting Stud Quantity: 8
• Clamp Quantity: 7
• Data Pocket Size: 12.00 x 12.00in
• UPC: 783510273309
• Bulletin Number: A4A
• Application: Controls and Drives; Corrosive Environments
• Brand: nVent HOFFMAN
• Catalog Number: A36H3008ALLP
• Color: Unpainted
• Country of Origin: MX
• EU RoHS Indicator: NEW
• Harmonization Tariff Schedule Code: 8538100000
• NEMA Rating: 4X Watertight, corrosion-resistant
• Size: 36.00x30.00x8.00 in
• Type: Aluminum Wall Mounted Industrial Enclosures
• UNSPSC: 39121324
• UPC 11: 78351027330
• UPC 12: 78351027330
• NEMA: 3R, 4, 4X, 12, 13
• Material Specification: Type 5052 H32
• Cover Latching: (7) Clamps
• Optional Panel: A36P30AL, A36P30, A36P30G
• Cover Mounting: Hinge, Continuous
• Cover Type: Solid
