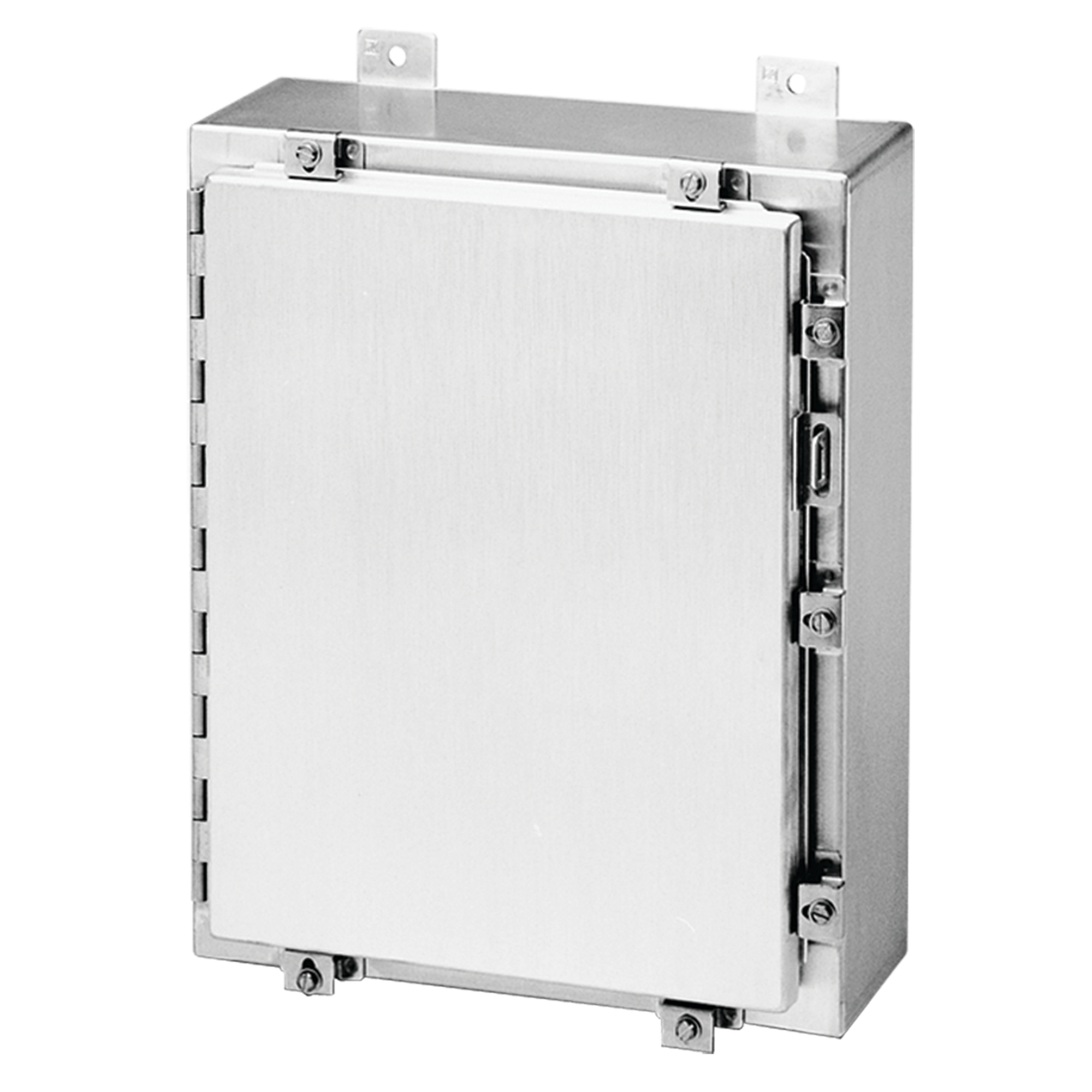

Hoffman A36H2408ALLP Continuous Hinge Enclosure with Clamps LP Type 4X, 36x24x8, Brushed, Aluminum

Product Description

The HOFFMAN A36H2408ALLP Continuous Hinge Aluminum Enclosure with Clamps is a lightweight, Type-4X solution featuring a hinged cover secured on three sides via stainless steel clamps and screws. Ideal for protecting components and controls in corrosive indoor or outdoor environments, such as petrochemical, sewage, and marine settings.

• Lightweight, Type 4x hinged enclosure.
• Seams continuously welded and ground smooth
• Rolled lip around three sides of door and all sides of enclosure opening

Product Highlights

This aluminum enclosure features stainless steel door clamp assemblies and an oil-resistant gasket. The door is easily removed by pulling the stainless steel continuous hinge pin.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A36H2408ALLP
• Country of Origin: MX - Mexico

Technical Specifications

• Article Number: 27320
• Height: 36 in
• Width: 24 in
• Depth: 8 in
• Material: Aluminum
• Finish: Brushed
• Thickness: 0.08in
• Panel Mounting Stud Quantity: 6
• Clamp Quantity: 5
• Data Pocket Size: 12.00 x 12.00in
• UPC: 783510273200
• Bulletin Number: A4A
• NEMA Rating: 4X Watertight, corrosion-resistant
• Mounting Type: Wall
• Type: Wall Mount
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• Applications: Controls and Drives; Corrosive Environments
• IP Rating: 66
• Size: 36.00x24.00x8.00 in
• Standard: 12,13,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• Catalog Number: A36H2408ALLP
• Country of Origin: MX
• EU RoHS Indicator: NEW
• Harmonization Tariff Schedule Code: 8538100000
• Item Group: A4A
• Manufacturer: HOFFMAN ENCLOSURES
• UNSPSC: 39121324
• Approximate Depth: 8 in
• Approximate Height: 36 in
• Approximate Width: 24 in
• Cover Locking: Clamp
• Cover Mounting: Hinged
• Enclosure Mounting: Panel Mount
• Series: A36 Series
• Special Features: Data Pocket
• Unit of Measure: EA
• UPC Code: 00783510273200
