Hoffman A363612LP Continuous Hinge Enclosure 36x36x12

Product Description

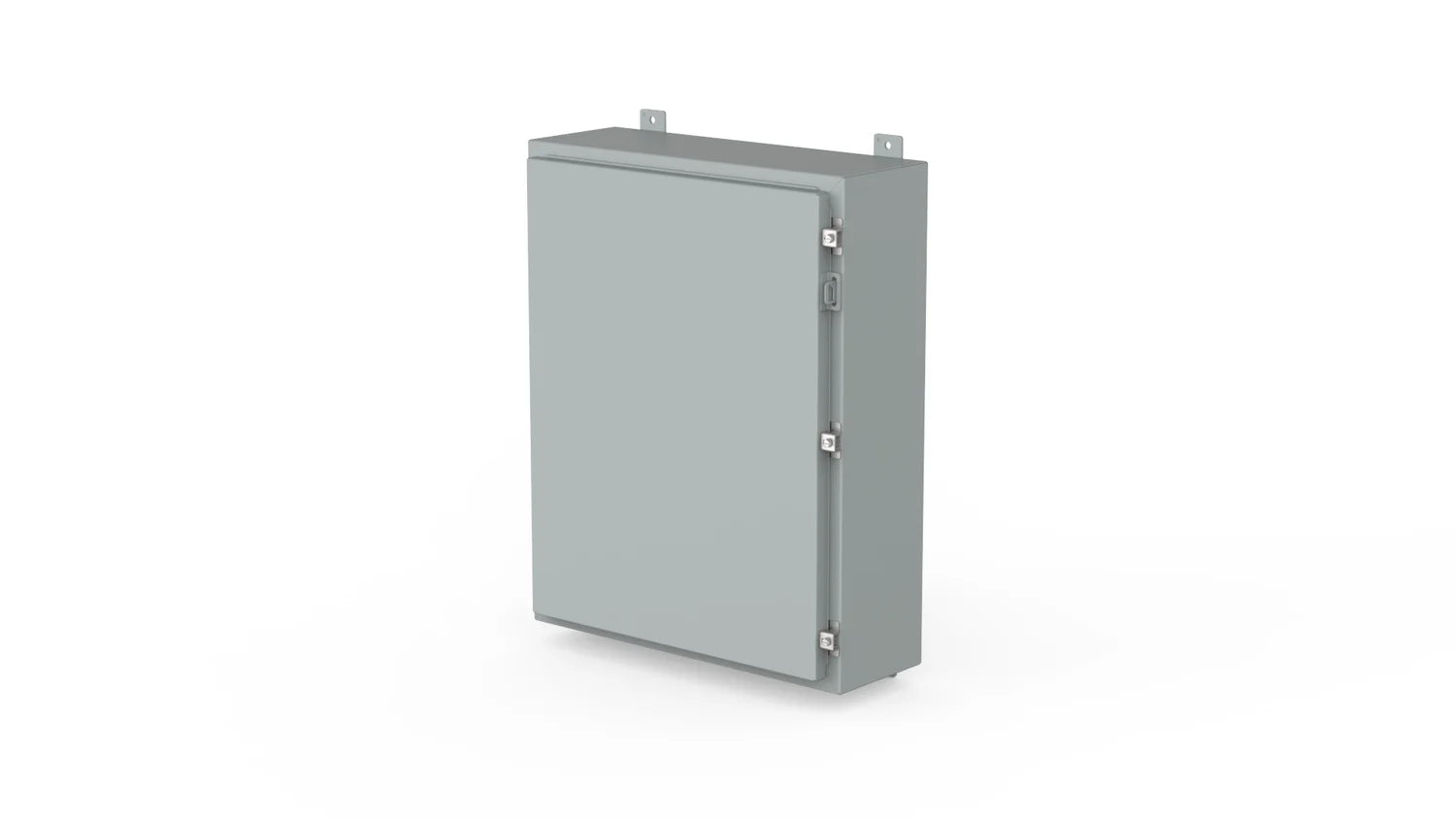

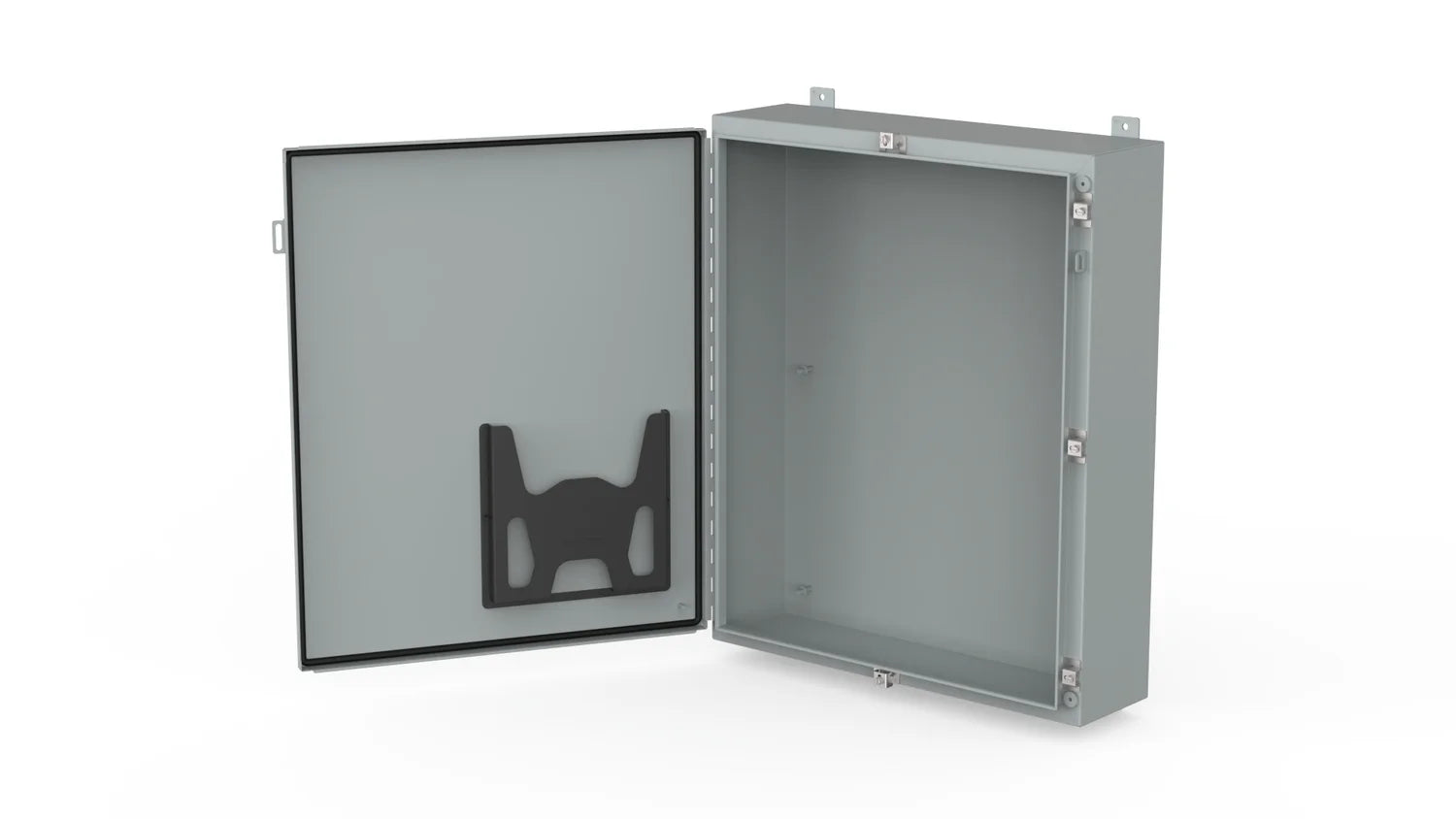

The HOFFMAN A363612LP is a single-door continuous hinge enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Stainless steel screw-down door clamps

Product Highlights

This Hoffman enclosure features continuously welded seams, external mounting brackets, and stainless steel screw-down door clamps.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A363612LP
• Country of Origin: USA

Technical Specifications

• Article Number: 27950
• Height: 36in
• Width: 36in
• Depth: 12in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 14ga
• Clamp Quantity: 5
• Data Pocket: Large
• UPC: 783510279509
• EAN: 8713574253124
• Bulletin Number: A12
• IP/NEMA Rating: IP65, NEMA 12, NEMA 13
• Mounting: Wall
• Special Program: Hoffman On Demand
• Knockouts: No
• UNSPSC Code: 31260000
• Approximate Depth: 12 in
• Approximate Height: 36 in
• Approximate Width: 36 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A363612LP
• Series: A12 Series
• Type: Junction Box
• Cover Type: Continuous Hinge with Clamps
• Size: 36.00x36.00x12.00 in
• Sub Brand: Hoffman
• 12-Digit UPC: 783510279509
• Length: 40-1/4 Inch
• DISK UNSPSC: 39121324
