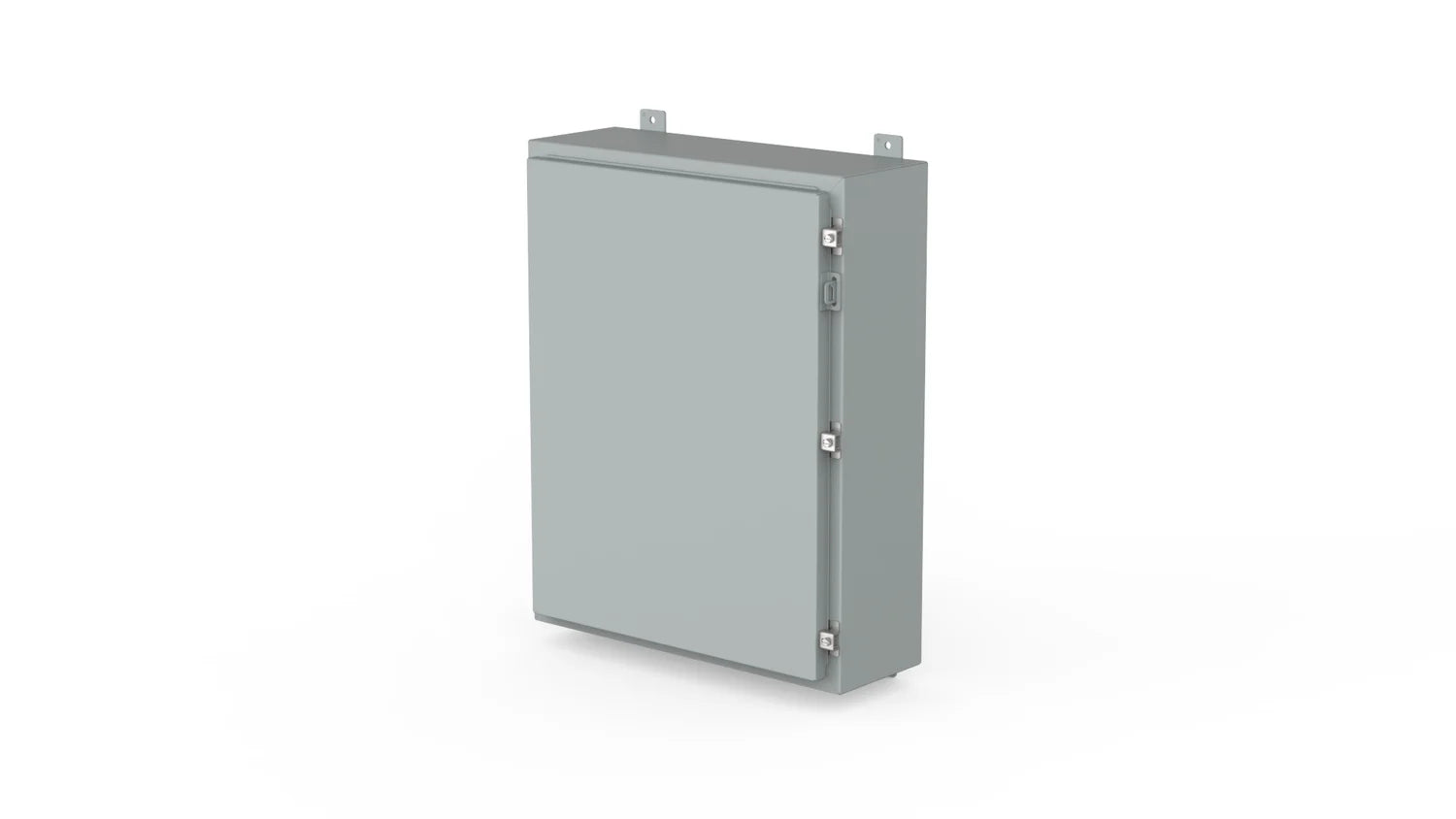

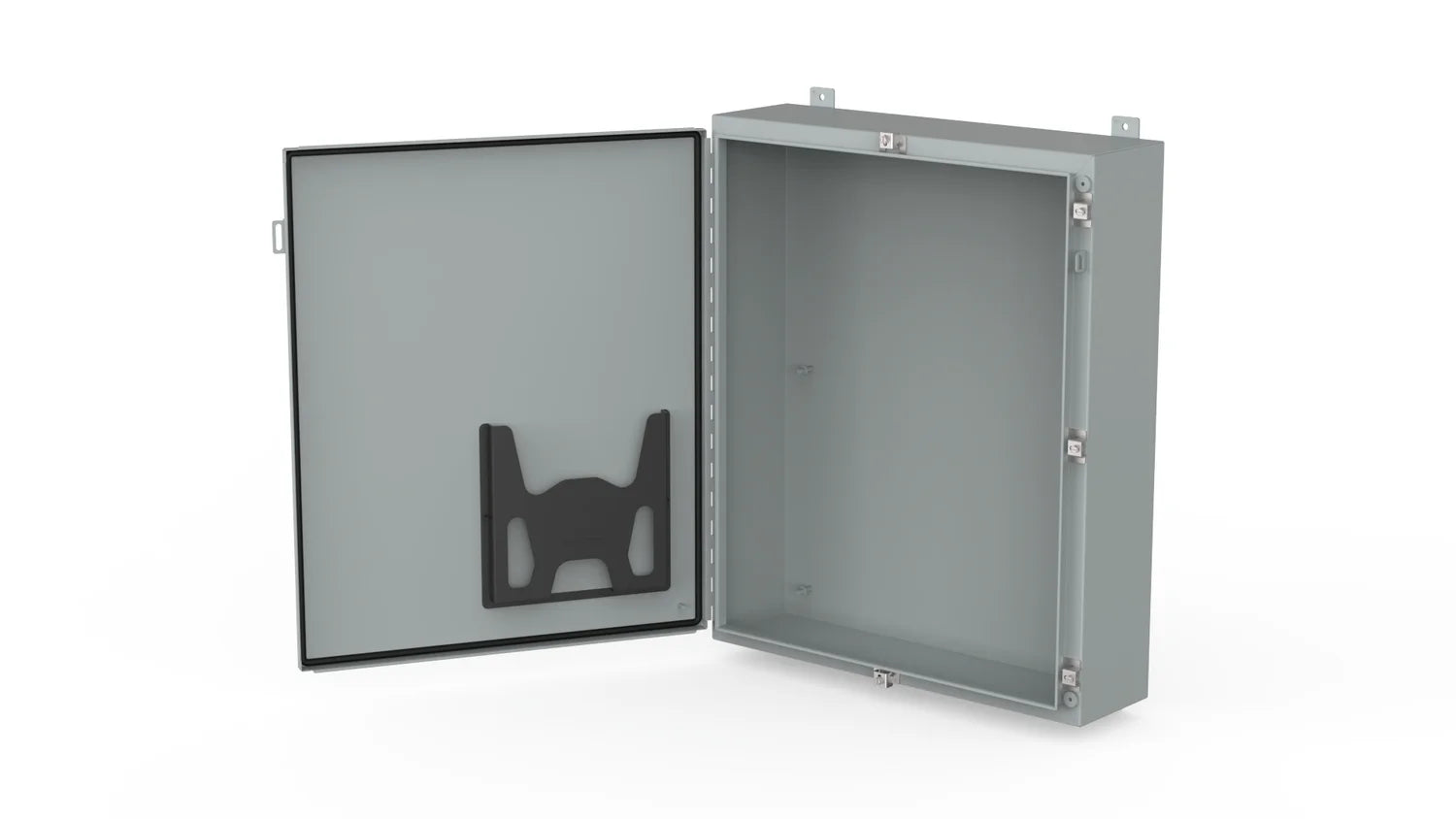

Hoffman A363020LP Continuous Hinge Enclosure with Clamps LP Type 4, 36x30x20

Product Description

The HOFFMAN A363020LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection. It is designed for applications requiring increased control visibility.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Stainless steel screw-down door clamps

Product Highlights

The Hoffman A363020LP enclosure offers robust protection with its continuously welded seams, stainless steel hardware, and corrosion-resistant finish, suitable for diverse environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A363020LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 28680
• Height: 36 in.
• Width: 30 in.
• Depth: 20 in.
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 1.9mm
• Clamp Quantity: 5
• Data Pocket: Large
• UPC: 783510286804
• Bulletin Number: A12
• ECCN: EAR99
• NEMA Rating: 12, 13
• Standard: UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File No. 42186: Type 12 , IEC 60529, IP65
• Type: Continuous Hinge with Clamps, Type 12
• UNSPSC: 39121324
