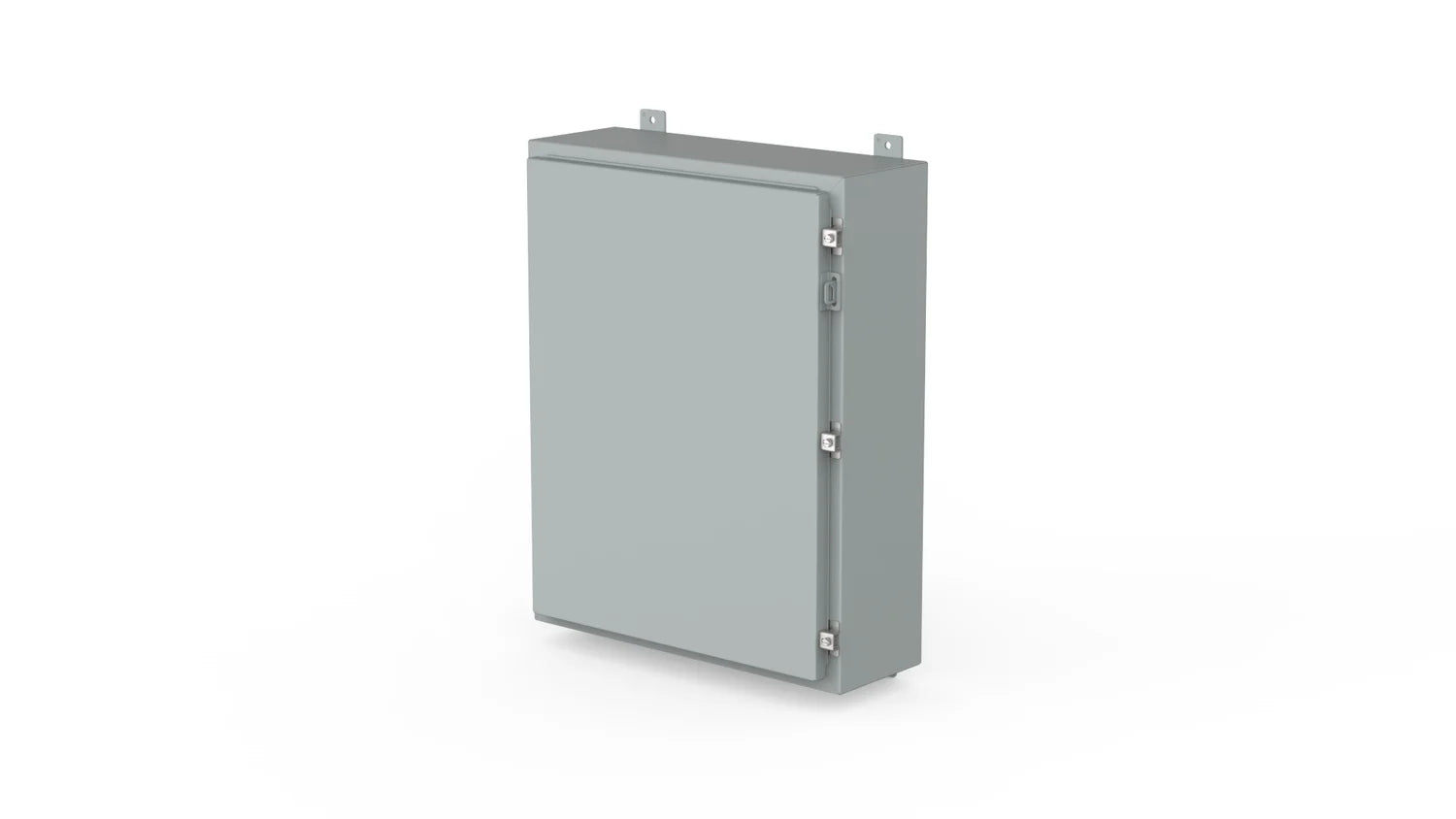

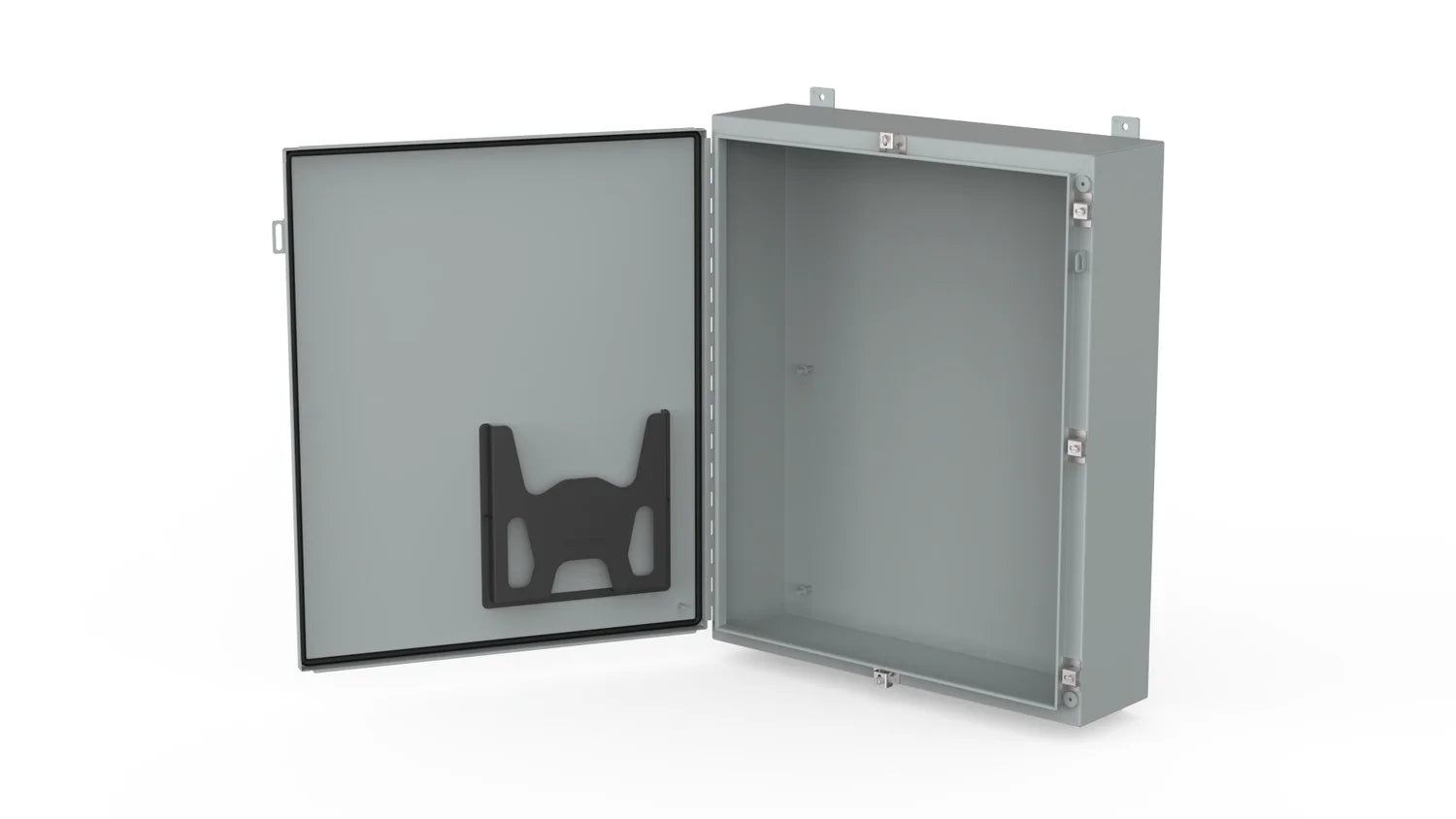

Hoffman A363010LP Continuous Hinge Enclosure 36x30x10

Product Description

The HOFFMAN A363010LP is a single-door enclosure suitable for indoor and outdoor applications. Constructed from mild steel with a powder-coated finish for enhanced corrosion protection. Features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. Designed with a seamless, foam-in-place gasket for optimal compression.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

Mild steel enclosure with stainless steel hardware and a seamless gasket, suitable for indoor and outdoor use.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A363010LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 28440
• Height: 36 in
• Width: 30 in
• Depth: 10 in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 14ga
• Clamp Quantity: 2
• Data Pocket: Large
• UPC: 783510284404
• Standard Packaging Quantity: 1
• Packing Quantity: 1
• Bulletin Number: A12
• Mounting Type: Wall
• Size: 36.00x30.00x10.00 in
• Type: Single Door, Two Lock
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510284404
• MDM Pkg GTiN: 00783510284404
• Product UPC: 78351028440
• Height (mm): 914 mm
• Width (mm): 762 mm
• Depth (mm): 254 mm
• Length: 41 Inch
• Thickness (mm): 1.9 mm
• ECCN: EAR99
• UNSPSC: 39121324
• NEMA Rating: 12, 13
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• MFR #: A363010LP
• Zoro #: G8749422
• UPC #: 783510284404
• Item: Electrical Enclosures
• NEMA Enclosure Rating: 12, 13
• Enclosure Material: Steel
• Closure Method: Screw Down Clamps with Padlocking Hasp
• Cover Closure Type: Hinged
• Knockouts: No
• Metallic / Non-Metallic: Metallic
• Mounting: Wall
• Cover Style: Solid
• Standards: CSA, File No 42186: Type 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, NEMA/EEMAC Type 12 and 13, UL 508A Listed
• Metal Gauge: 14/16 ga
• Series: A12
• IP Rating: IP65
• Interior Panel: 32FT57
• Enclosure Cover Features: Clamps
• Gasket: Neoprene
• Includes Knockouts: Knockouts Not Included
• Compatible Panel Model Number: A36P30, A36P30G
• Gasket Material: Neoprene
• Environment - MERCH: Dust Tight
• Nominal Width: 30 in
• Nominal Height: 36 in
• Nominal Depth: 10 in
• Body Material Thickness: 14 ga
