Hoffman A30R3016NK Enclosure, NEMA 3R, Screw Cover, 30 inches x 30 inches x 16 inches

Product Description

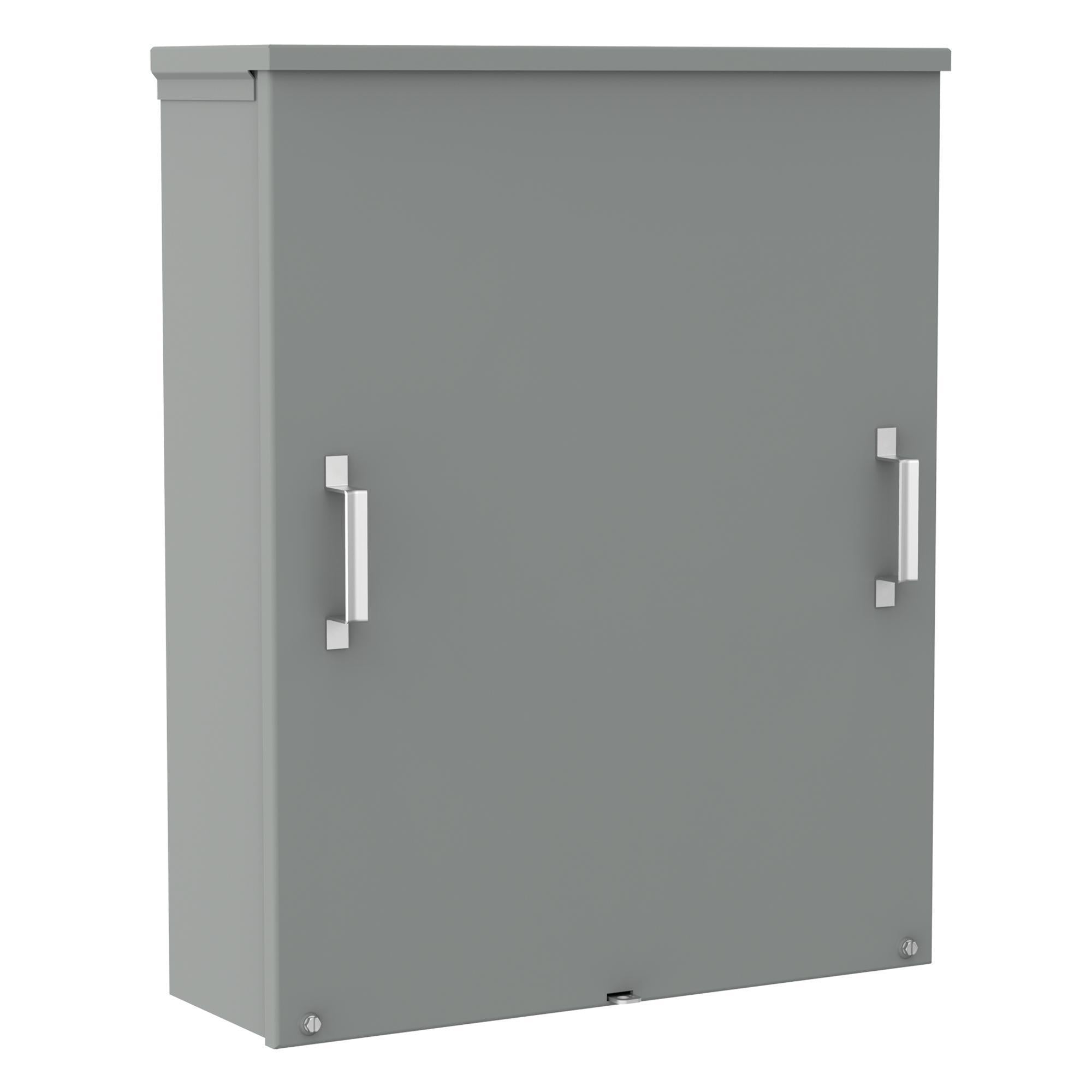

The HOFFMAN A30R3016NK is a NEMA 3R screw cover enclosure used as a wiring or junction box to protect controls in outdoor applications. It provides protection from rain, sleet, snow, or dripping water. The enclosure measures 30 x 30 x 16 inches and is made of steel with a gray powder coat finish.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

This Hoffman NEMA 3R enclosure protects against weather elements and is suitable for outdoor use as a wiring or junction box.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A30R3016NK

Technical Specifications

• Material: Steel
• IP/NEMA Rating: NEMA 3R
• Knockouts: No
• Cover Type: Screw
• Depth: 16 in
• Finish: Galvanized
• Height: 30 in
• Lock: Padlock
• Mounting Type: Wall
• Series: A90S3
• Type: C Style Body
• Width: 30 in
• Body Thickness: 2.66 mm
• Standard: CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A30R3016NK
