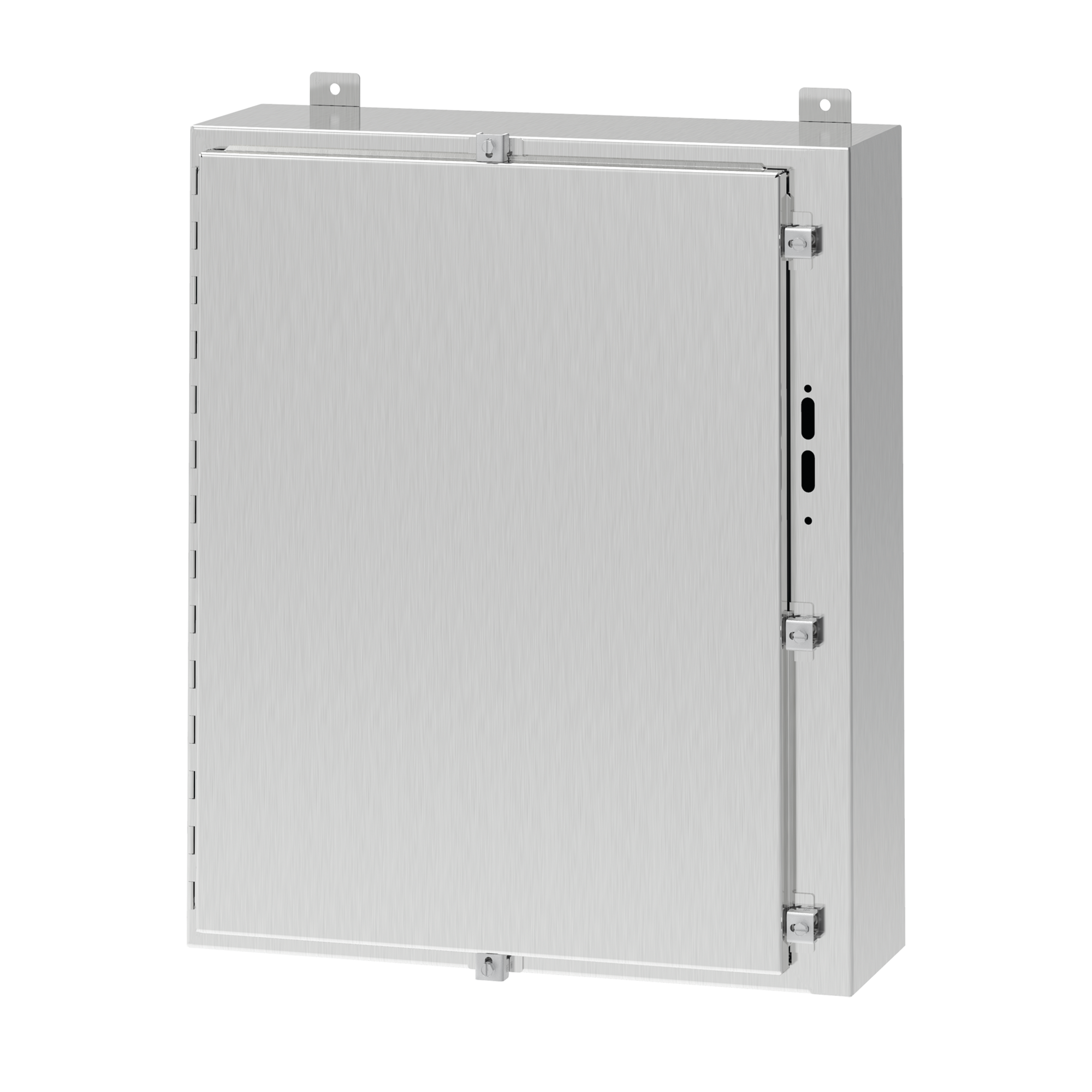

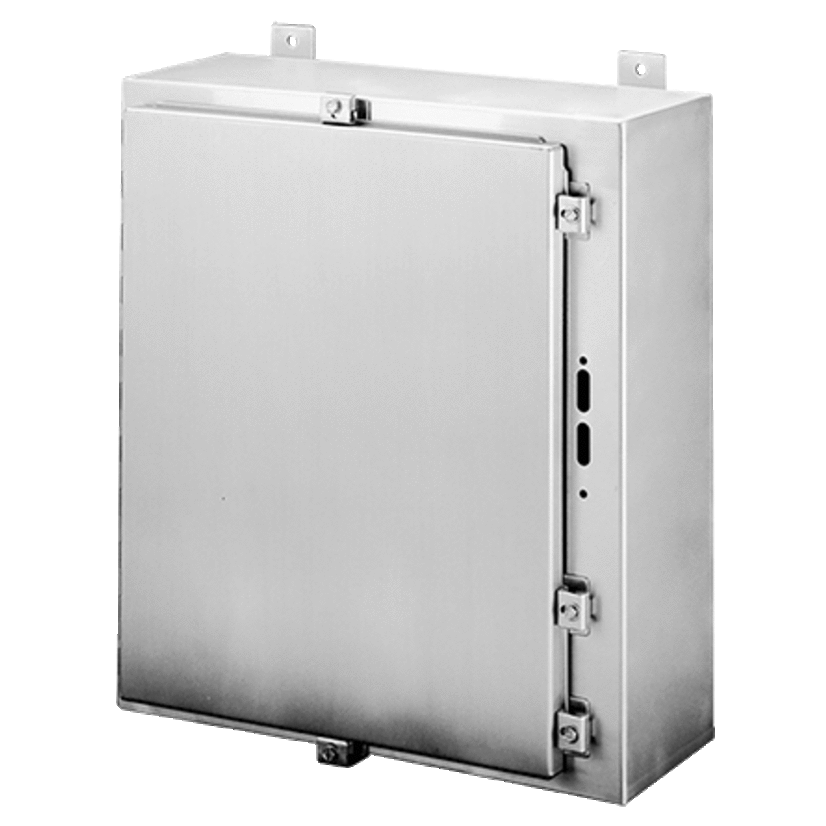

Hoffman A30HS2508SSLP Wallmount Disconnect Enclosure with Clamps Type 4X, 30x25x8, SS304

Product Description

The HOFFMAN A30HS2508SSLP is a wallmount disconnect enclosure with clamps, designed for applications where a clamp-secured door is preferred. It features clamps on three sides to prevent liquids and contaminants from entering. This enclosure accepts major brand disconnect switches and circuit breakers. Each enclosure includes an adjustable door interlock bracket and instructions for locating and installing disconnect components.

• Seams are continuously welded and ground smooth.
• Features external mounting brackets and an external-formed flange around the enclosure opening.
• Constructed with stainless steel door clamps on three sides and a removable stainless steel continuous hinge pin.

Product Highlights

The HOFFMAN A30HS2508SSLP enclosure provides a secure seal against liquids and contaminants, suitable for various disconnect applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A30HS2508SSLP
• Country of Origin: United States

Technical Specifications

• Article Number: 27530
• Height: 30 in
• Width: 25.38 in
• Depth: 8 in
• Material: Stainless Steel 304
• Finish: Brushed #4
• Thickness: 14ga
• Clamp Quantity: 5
• Data Pocket Size: 12.00 x 12.00in
• UPC: 783510275303
• Bulletin Number: A19S
• IP Rating: 66
• Size: 30.00x25.38x8.00 in
• Standard: 12,13,3R,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3,Type 3R,UL 508A Listed
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510275303
• Color: Unpainted
• Product UPC: 78351027530
• DISK UNSPSC: 39121324
• UNSPSC Code: 31260000
• Approximate Depth: 8 in
• Approximate Height: 30 in
• Approximate Width: 25 in
• Manufacturer Part Number: A30HS2508SSLP
• Unit of Measure: EA
• UPC Code: 00783510275303
• BABA Compliant: Yes
• Country of Origin: United States
• Cover Type: Solid
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP66
• Package Type: PIECE
• Panel Size: 21 in W x 27 in H
• Series: A19S
• Type / Style: Disconnect Enclosure with Clamps, Type 4X
• Material Thickness: 14 Gauge
• Material Specification: Type 304
• Cover Mounting: Hinge, Continuous
• Cover Latching: Clamps
• Mounting: Internal Holes
• Optional Panel: A30P24
