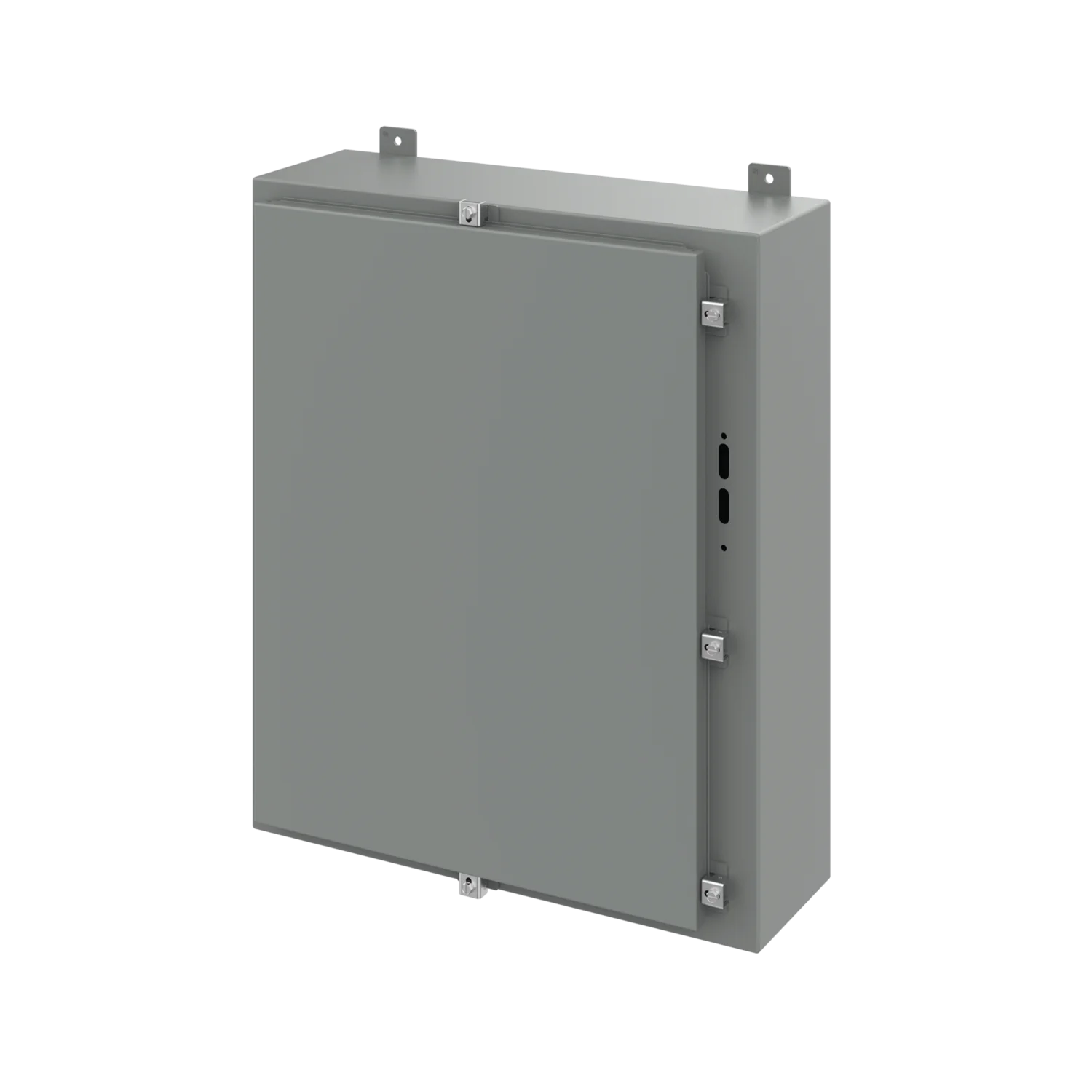

Hoffman A30HS2508LP Disconnect Enclosure with Clamps 30.00x25x8.00

Product Description

The HOFFMAN A30HS2508LP is a disconnect enclosure designed for applications where a clamp-secured door is needed. Its clamps on three sides keep liquids and contaminants out. The enclosure features a cutout that works with major brand disconnect switches and circuit breakers. It is furnished with adjustable door interlock bracket fastened to door.

• Seams continuously welded and ground smooth
• External mounting brackets
• Stainless steel door clamps on three sides of door

Product Highlights

This Hoffman disconnect enclosure is ideal for environments needing secure protection against liquids and contaminants, ensuring reliable operation of disconnect switches and circuit breakers.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A30HS2508LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 20130
• Height: 30 in
• Width: 25.38 in
• Depth: 8 in
• Material: Steel
• Finish: Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Thickness: 14ga
• Clamp Quantity: 5
• Data Pocket Size: 12.00 x 12.00 in
• UPC: 783510201302
• Packing Quantity: 1
• Bulletin Number: A19
• Applications: Arc Flash Safety; Controls and Drives; Power Distribution
• IP Rating: 66
• Size: 30.00x25.38x8.00 in
• Standard: 12,13,4,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
• Type: Type 4 Mild Steel Freestanding Enclosure
• Brand: nVent Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510201302
• Product UPC: 78351020130
• Panel Size (D x E): 27.00 x 21.00 in
• A x B x C: 30.00 x 25.38 x 8.00 in
• Conductive Panel: A30P24G
• Description: Disconnect Enclosure with Clamps
• Manufacturers Part Number: A30HS2508LP
• Panel: A30P24
• Number of Clamps: 5
• IP/NEMA Rating: IP66, NEMA 4
• ECCN: EAR99
• UNSPSC: 39121324
