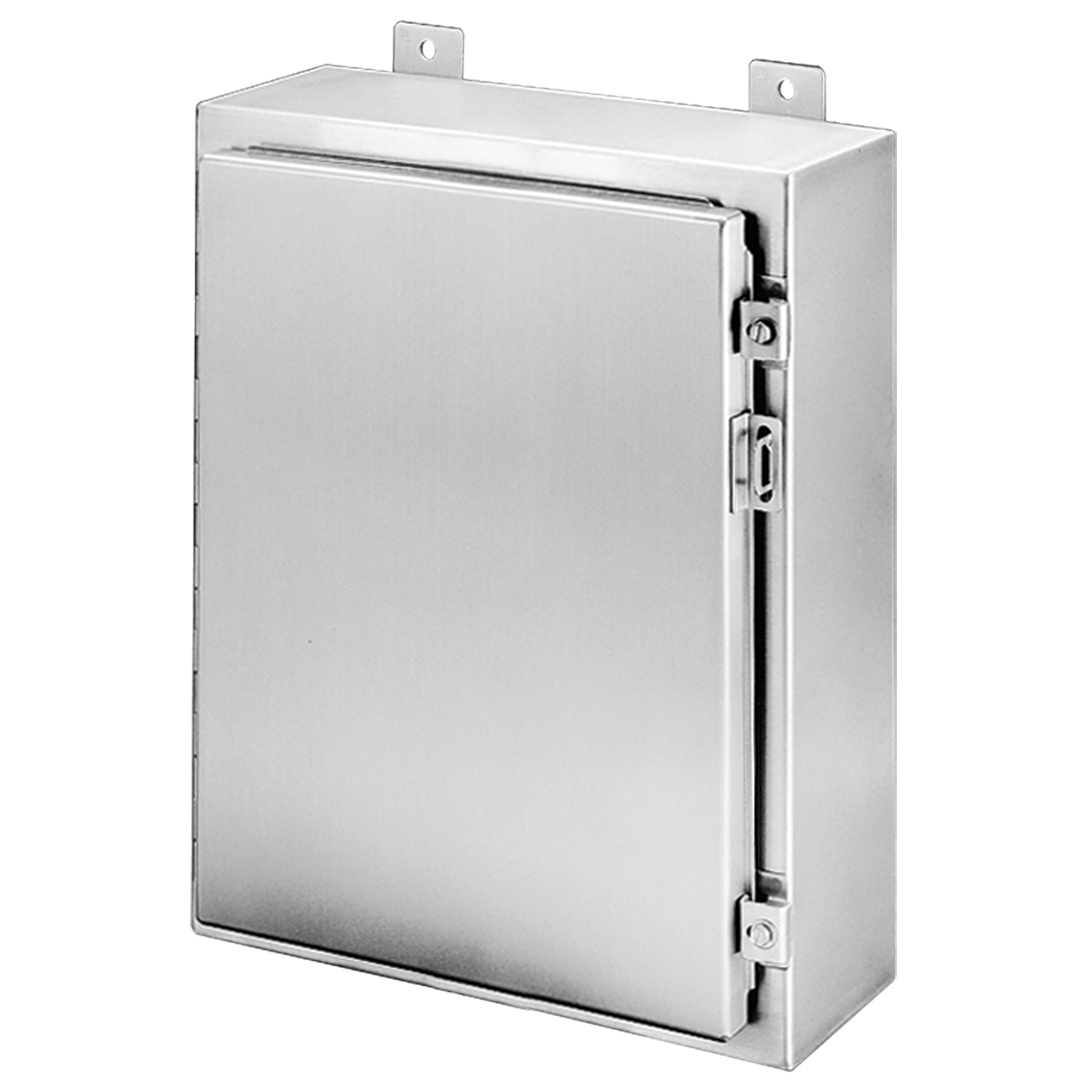

Hoffman A30H2416SSLP Stainless Enclosure 30x24x16

Product Description

The HOFFMAN A30H2416SSLP stainless steel enclosure is designed for use in corrosive environments. Its seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants. Ideal for housing electrical and pneumatic controls, instruments, and components, this enclosure offers protection from windblown dust, rain, splashing water, and hose-directed water.

• Seams are continuously welded and ground smooth.
• Features a seamless foam-in-place gasket.
• Constructed of 304 stainless steel.

Product Highlights

Provides a watertight seal in corrosive indoor and outdoor environments. Offers protection for controls, instruments and components.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A30H2416SSLP
• Country of Origin: US

Technical Specifications

• Type: Stainless Steel Wall Mounted Industrial Enclosures
• Color: Unpainted
• Width: 24 in
• Finish: Brushed NO.4
• Material: Stainless Steel 304
• IP Rating: IP66
• Application: Controls and Drives; Corrosive Environments
• Data Pocket: Large
• NEMA Rating: 4X Watertight; corrosion-resistant
• Steel Panel: A30P24
• Type Number: Type 3R
• Manufacturer: HOFFMAN ENCLOSURES
• Clamp Quantity: 5
• Protection Rating: NEMA Type 12
• Thickness (Metric): 1.98 mm
• Panel Size (Metric): 686 x 533 mm
• Stainless Steel Type: 304
• Thickness (Imperial): 14 ga
• Modification Services: Yes
• Panel Size (Imperial): 27.00 x 21.00 in
• Stainless Steel Panel: A30P24SS6
• Conductive Steel Panel: A30P24G
• Bulletin Number: A4S
• Is FM: No
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: A30H2416SSLP
• EU RoHS Indicator: RCP
• Height [Metric]: 45.7200 cm
• For Indoor, Outdoor: Applications
• Cover Type: Continuous Hinge with Clamps
• Enclosure Width: 24 in
• Enclosure Height: 30 in
• Enclosure Depth: 16 in
• Enclosure Rating: NEMA 4X
• Body Material: 304 Stainless Steel
• Mount: Wall
