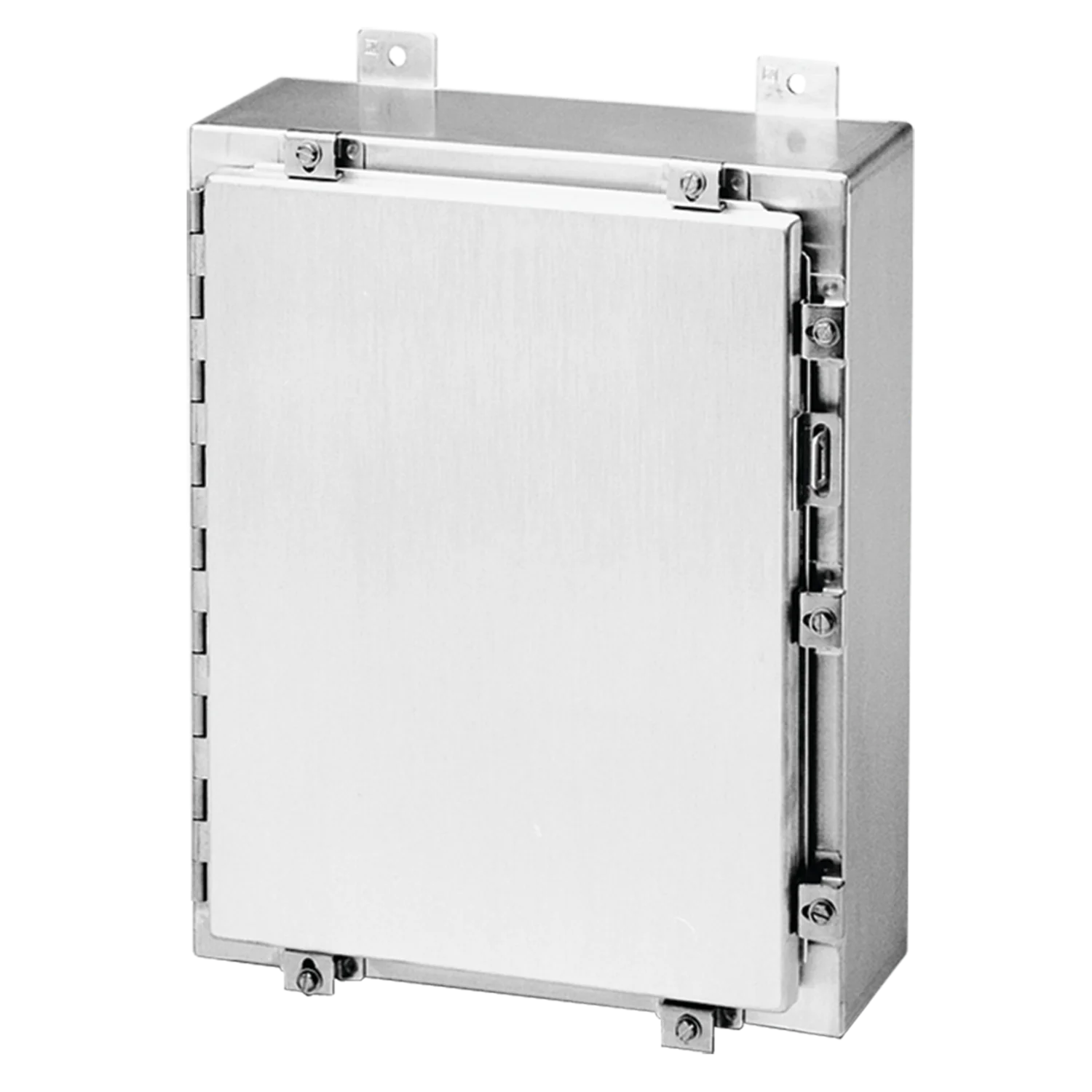

Hoffman A30H2412ALLP Enclosure with A30P24AL Pnl (30x24x12)

Product Description

The HOFFMAN A30H2412ALLP enclosure comes with an A30P24AL panel. This continuous hinge aluminum enclosure with clamps is a lightweight, Type-4X solution with a hinged cover secured by stainless steel clamps and screws. Ideal for protecting components in corrosive indoor or outdoor environments.

• Lightweight, Type 4x hinged enclosure.
• Seams continuously welded and ground smooth
• Rolled lip around three sides of door and all sides of enclosure opening

Product Highlights

The enclosure features stainless steel door clamp assemblies and a high-impact thermoplastic data pocket. It is suitable for petrochemical, sewage treatment, and marine environments.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A30H2412ALLP

Technical Specifications

• Catalog ID: A30H2412ALLP
• Product SKU: HOFFA30H2412ALLPW/PNL
• Manufacturer: Hoffman
• UNSPSC: 39121301
• Family Group: WIREWAY/ENCLOSURES
• Height: 30in
• Width: 24in
• Depth: 12in
• Material: Aluminum
• Finish: Brushed
• Thickness: 0.08in
• Panel Mounting Stud Quantity: 6
• Clamp Quantity: 5
• Data Pocket Size: 12.00 x 12.00in
• UPC: 783510273705
• Bulletin Number: A4A
• Nema Rating: NEMA 3R/4/4X/12/13, IP66
• Service Type: Indoor/Outdoor
• Mounting: Wall
• Material Specification: 5052-H32
• Type: 1-Door
• Cover Type: Continuous Hinged, Stainless Steel Removable Pin, (5) Stainless Steel Clamp, Oil Resistant Gasketed, Padlockable Hasp and Staple
• Approval: UL 508A, CUL, CSA C22.2
• UNSPSC Code: 31260000
• Approximate Depth: 12 in
• Approximate Height: 30 in
• Approximate Width: 24 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A30H2412ALLP
• Back Panel: A30P24AL, A30P24, A30P24G
