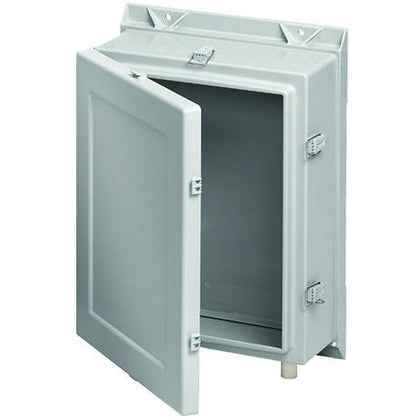

The HOFFMAN A30H2410GQRLP enclosure is designed for wall-mount applications and modification options. These enclosures feature padlockable polyester latches, or HOFFMAN's exclusive PowerGlide Handle with 3-point latching, for ease of access with increased security. Suitable for corrosive environments and controls and drives applications.
Fiberglass-reinforced material has excellent temperature and chemical resistance qualities
Features Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal
Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
Product Highlights
The A30H2410GQRLP enclosure features sealed seams, a gasket for a water-tight and dust-tight seal, and copper-flashed steel collar studs for mounting optional panels and terminal block kits.
Product Information
Standard Information
Brand: HOFFMAN
Manufacturer Part Number: A30H2410GQRLP
Country of Origin: US - United States
Technical Specifications
Catalog ID
A30H2410GQRLP
Manufacturer
Hoffman
UNSPSC
39121301
Family Group
WIREWAY/ENCLOSURES
Sales Package Qty
1.0
UOM
EA
Article Number
29540
Height (H)
30.25in
Width (W)
24.25in
Depth (D)
10in
Material
Fiberglass
Finish
Smooth Matte
Color
Gray
Thickness (T)
0.14in
Latch Quantity
5
UPC
783510295400
Standard Packaging Quantity
1
Packing Quantity
1
Applications
Controls and Drives; Corrosive Environments
Cover Type
Hinge-Cover with 3-Point Latch or Quick-Release Latches
IP Rating
66
Mounting Type
Wall
Size
30.25x24.25x10.00 in
Standard
CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
