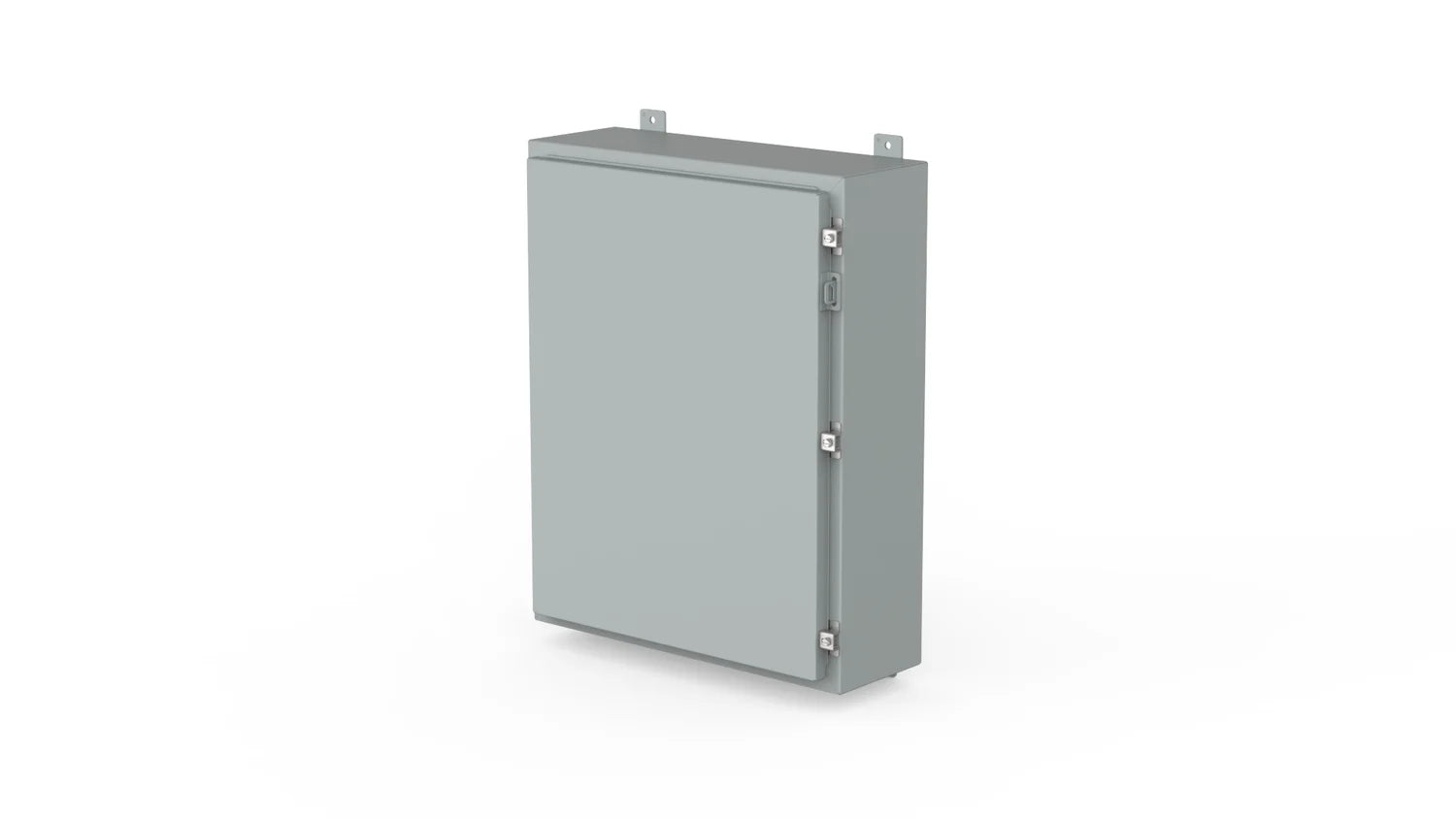

Hoffman A302416LP Continuous Hinge Enclosure with Clamps LP Type 4, 30x24x16

Product Description

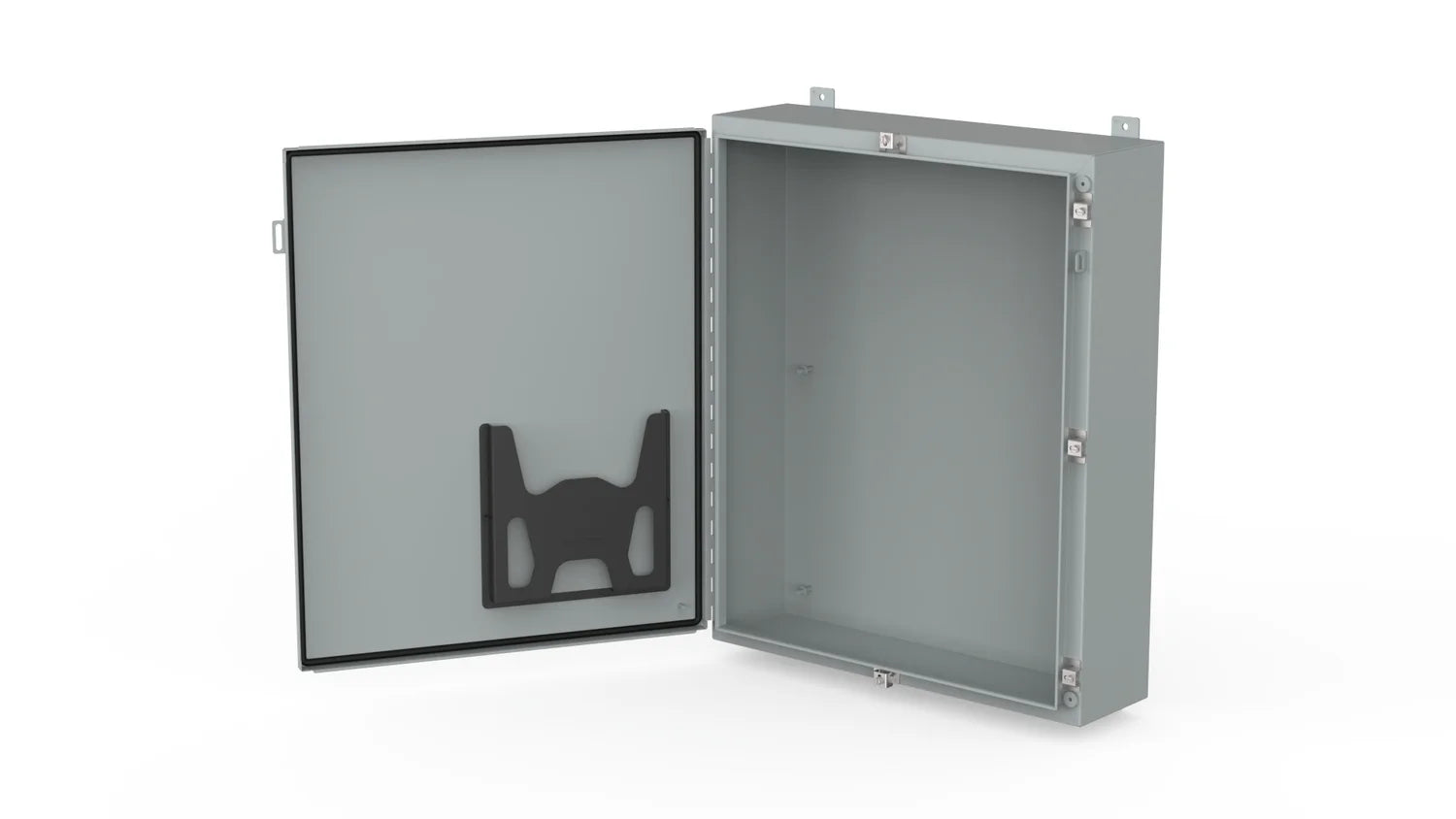

The HOFFMAN A302416LP is a single-door enclosure suitable for indoor and outdoor applications. Hardware is stainless steel, including the screw-down door clamps and heavy-gauge hinge pin. The door clamp count and position has been re-defined to achieve optimal compression of the seamless, foam-in-place gasket. Finished inside and out in a polyester powder paint that enhances corrosion protection.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

This enclosure provides access and security with screw-down clamps and a padlocking hasp. Ideal for wall mounting and provides protection against corrosion.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A302416LP
• Country of Origin: US - United States

Technical Specifications

• Article Number: 28590
• Height: 30 in
• Width: 24 in
• Depth: 16 in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 14ga
• Clamp Quantity: 3
• Data Pocket: Large
• UPC: 783510285906
• Bulletin Number: A12
• NEMA Rating: NEMA 12/IP65
• Mounting Type: Wall
• Type: 1-Door
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• UNSPSC: 39121324
• Mounting: External Bracket, Wall
• Material Specification: 14 Gauge
• UNSPSC Code: 31260000
• Approximate Depth: 16 in
• Approximate Height: 30 in
• Approximate Width: 24 in
• Brand: nVent HOFFMAN
• Manufacturer Part Number: A302416LP
• Series: A12 Series
• Cover Type: Continuous Hinged With Clamp
• Painted: Painted
• Standard & Approvals: UL 508A, File No. E61997, cUL Listed per CSA C22.2 No. 94, File No. E61997, CSA File No. 42186, IEC 60529, RoHS Complaint
