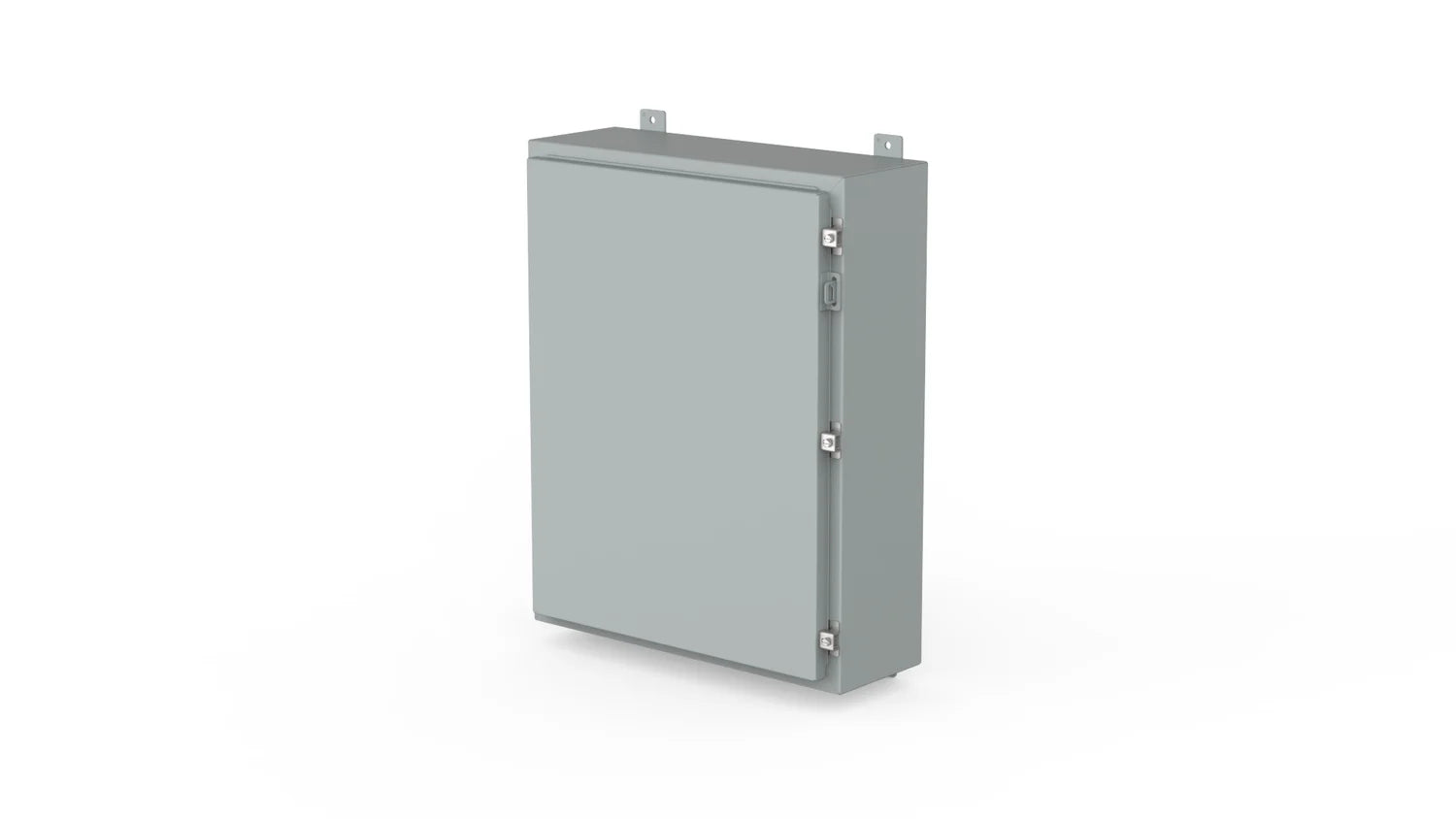

Hoffman A302008LP Continuous Hinge Enclosure with Clamps LP Type 4, 30x20x8

Product Description

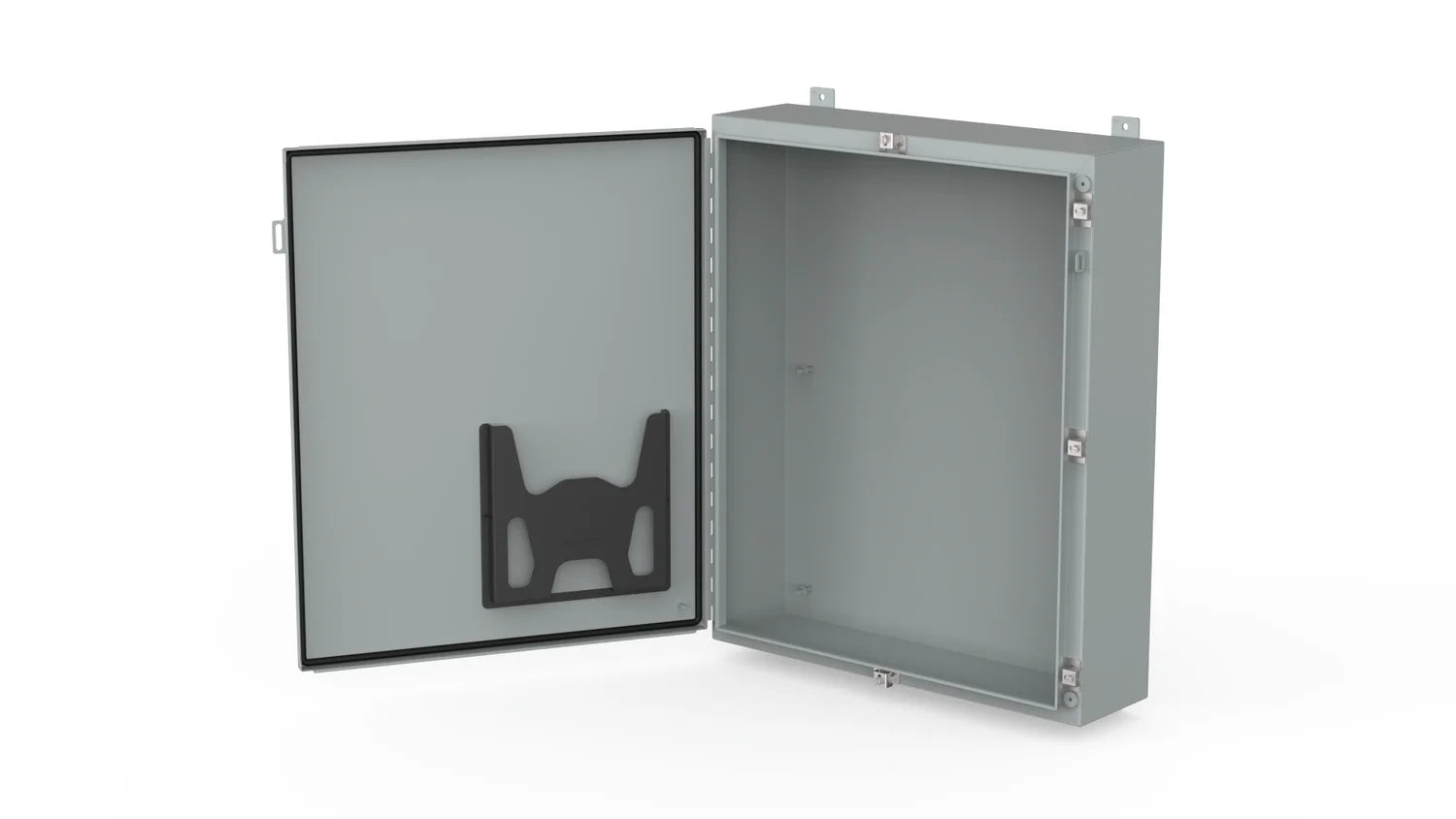

The HOFFMAN A302008LP is a single-door enclosure suitable for indoor and outdoor applications. It features stainless steel hardware, including screw-down door clamps and a heavy-gauge hinge pin. The enclosure is finished inside and out with a polyester powder paint for enhanced corrosion protection. Includes a padlocking hasp and staple for security.

• Seams continuously welded and ground smooth
• External, welded-on mounting brackets for wall-mounting
• Formed external return flanges around all sides of enclosure opening

Product Highlights

This Hoffman enclosure offers a robust solution for protecting electrical components in various environments, featuring a continuous hinge, secure clamps, and corrosion-resistant finish.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A302008LP
• Country of Origin: United States

Technical Specifications

• Article Number: 28230
• Height: 30 in
• Width: 20 in
• Depth: 8 in
• Color: Gray
• Color Code: ANSI 61
• Material: Mild Steel
• Finish: Powder Coated
• Thickness: 1.9 mm
• Clamp Quantity: 3
• Data Pocket: Small
• UPC: 783510282301
• Packing Quantity: 1
• Bulletin Number: A12
• Brand: nVent HOFFMAN
• Cover Type: Clamp/Continuous Hinged
• ETIM: EC000261
• Length: 30 in
• Lock: Hasp and Staple/Padlock
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Panel Size: 17 in W x 27 in H
• Series: A12
• Type: Medium
• Applications: Controls and Drives
• Body Gauge: 14
• Gauge: 16 or 14 ga
• Size: 30.00x20.00x8.00 in
• Standard: 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 12,File No. E61997,IEC 60529,IP65,NEMA/EEMAC Type 12 And 13,Type 12,UL 508A Listed
• Sub Brand: Hoffman
• GTiN: 00783510282301
• Product UPC: 78351028230
• Cover Latching: Screw Clamp, Padlock Hasp
• Cover Mounting: Hinge, Continuous
• Mounting: External Feet
• Optional Panel: A30P20
• Material Thickness: 16 Gauge
• ECCN: EAR99
• UNSPSC: 39121324
• Hinge Type: Continuous
• Latch: Screw-Down Clamps
• NEMA: 12
