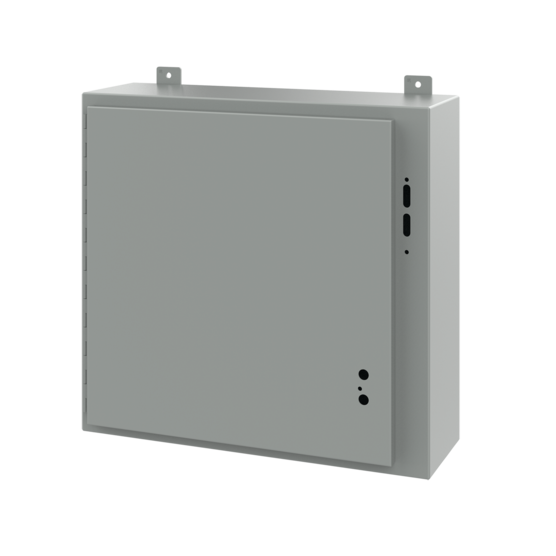

Hoffman A24SA2608LP Preferred Cutout, Disconnect Enclosure, Type 12, 24 inches x 25.38 inches x 8 inches, Steel

Product Description

The Hoffman A24SA2608LP is a general-purpose disconnect enclosure that accepts major brand disconnect switches and circuit breakers. Constructed of 14 gauge steel with continuously welded and ground smooth seams. Designed with a bonding provision on the door and external welded-on mounting brackets. Includes a POWERGLIDE handle and latching hardware.

• 14 gauge steel
• Seams continuously welded and ground smooth
• Bonding provision on door

Product Highlights

This Hoffman disconnect enclosure features a removable door with a continuous hinge and an oil-resistant gasket, ideal for arc flash safety, controls, drives, and power distribution applications.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: A24SA2608LP
• Country of Origin: US - United States

Technical Specifications

• IP Rating: 65
• Material: Steel
• Size: 24.00x25.38x8.00 in
• Standard: CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
• Type: Preferred Cutout
• Brand: Hoffman
• Sub Brand: Hoffman
• 12-Digit UPC: 783510328207
• Finish: Polyester Powder Coated
• UNSPSC Code: 31260000
• Approximate Depth: 8 in
• Approximate Height: 24 in
• Approximate Width: 25 in
• Manufacturer Part Number: A24SA2608LP
• Unit of Measure: EA
• UPC Code: 78351032820
• ECCN: EAR99
• UNSPSC: 39121324
• Application: Arc Flash Safety, Controls and Drives and Power Distribution Applications
• Mounting Type: Wall
• Depth: 8
• Width: 25.38
• Series: A25
• Includes: Latch Pivot Post, Cover Interlock Bracket, Cover Latch Bar and Instructions
• Cover Type: Continuous Hinged/Removable
• Panel Size: 21 in W x 21 in H
• IP/NEMA Rating: IP65, NEMA 12
